Description
Meetings of the future are a tap away with the Logitech Tap IP 2. This next-generation, network-connected meeting room touch controller gets you into meetings faster with an easy-to-use interface across all types of room configurations. It works with Microsoft Teams Rooms on Android, Zoom Rooms, and Google Meet Rooms, and it's designed for quick deployment and simple management alongside your Logitech room system.
Key Features
- One tap, any room: Responsive 10.1” touch display auto-wakes as participants enter the room, with easy access to content sharing, mute, and camera on/off
- Pick your platform: Compatible with Microsoft Teams Rooms on Android, Zoom Rooms, and Google Meet Rooms

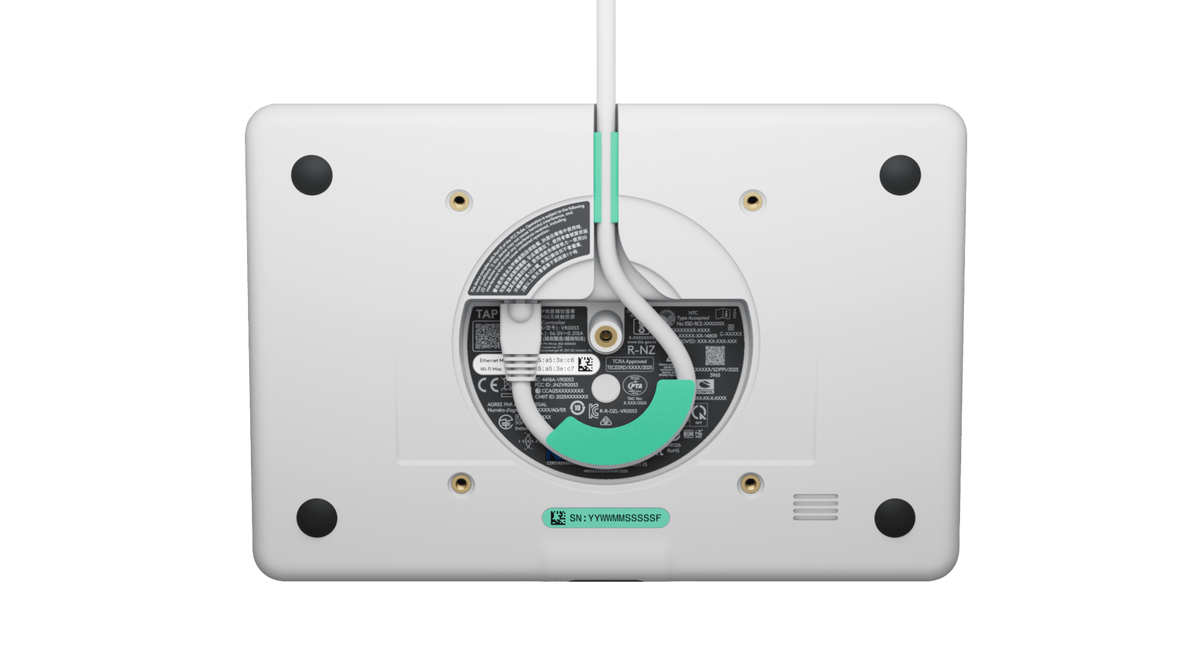

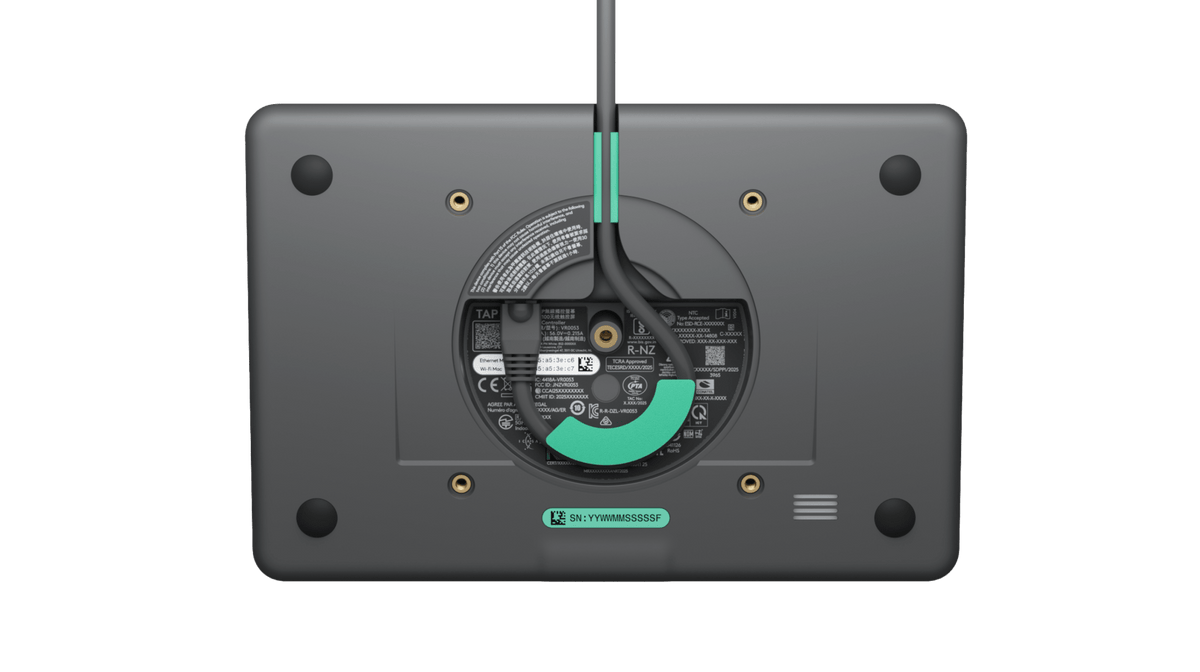

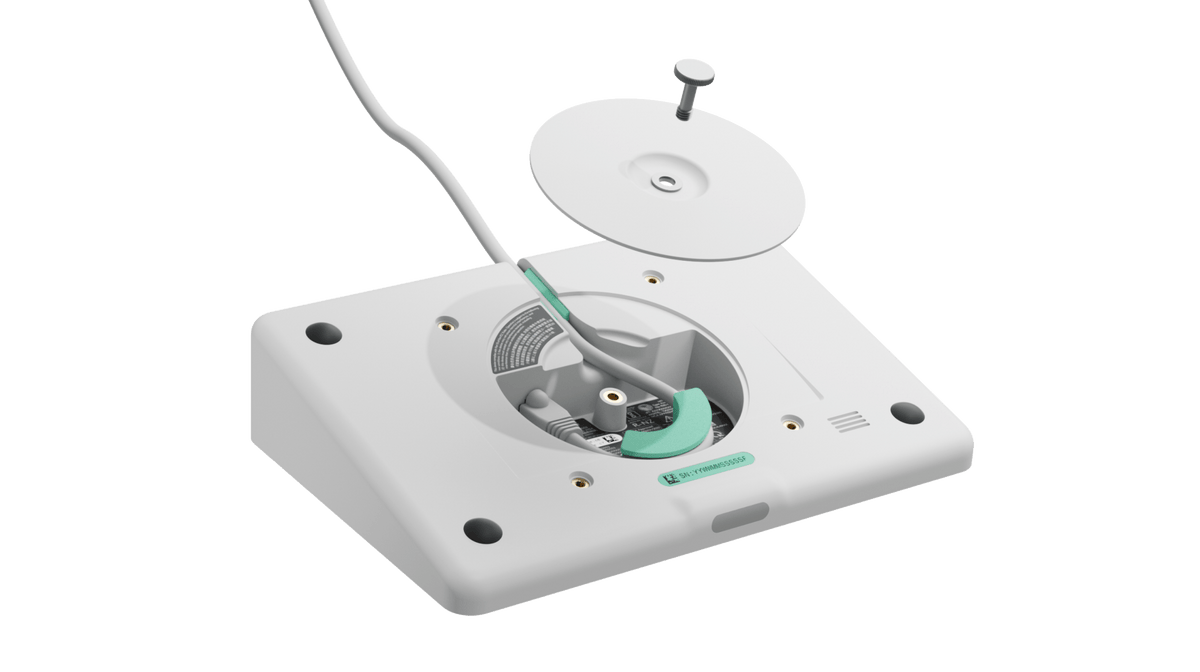

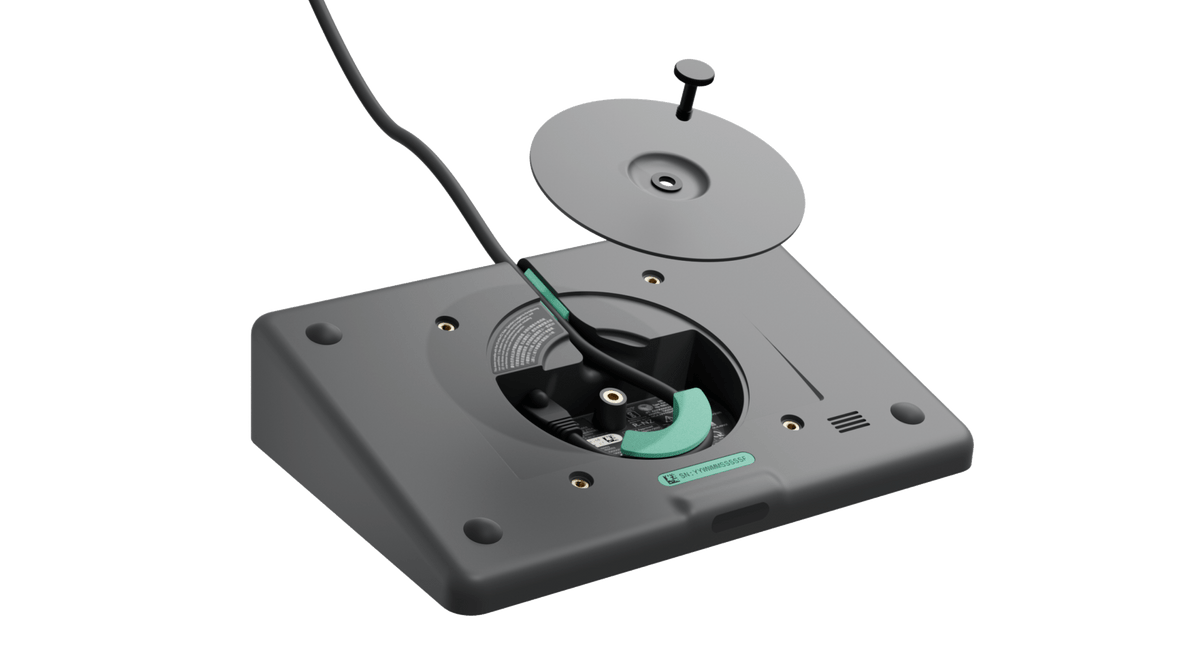

- Cabling made simple: A single category cable carries both power and data, and integrated strain relief and retention mechanisms secure the cable entirely within the enclosure
- Flexible mounting: Use a Table Mount, Riser Mount, or Wall Mount (sold separately). Works with existing Tap and Tap IP mounts, so you can keep existing mounts in place when upgrading to Tap IP 2
- Simple to manage: Configure and manage Tap IP 2 alongside your Logitech room system with Logitech Sync
Technical Specifications
Dimensions & Weight: 56.1 mm (2.21 in) H x 246.2 mm (9.69 in) W x 171.3 mm (6.74 in) D; 1 kg (2.2 lbs)
Screen: 10.1” (256.54 mm) diagonal In-Plane Switching (IPS) anti-glare LCD panel with LED backlighting, 1920 x 1200 resolution, 380 nits brightness, 1500:1 contrast, 80° viewing angle (up/down/left/right), 14° position angle, capacitive 10-point multi-touch, oleophobic anti-fingerprint coating
Audio: Ultrasonic speaker (19.5-21.5 kHz frequency response), 12 x 17 mm (0.47 x 0.67 in) driver
Ports & Interfaces: Ethernet 10/100 Mbps, Wi-Fi 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Mounting: 100 mm x 100 mm VESA FDMI; internal cable retention and strain relief system; cable exits horizontal / vertical / center
Power: Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. Requires PoE-enabled network or PoE injector and Ethernet cable (not included)
Sensors: PIR and radar motion sensors, accelerometer, ambient light
Operating System & Management: Logitech CollabOS; Logitech Sync device management
Compatibility: Microsoft Teams on Android, Zoom Rooms, Google Meet. For the latest certification and compatibility information, see www.logitech.com/support/tapip2compatibility
Environmental: Operating temperature 0 to 40 °C, storage temperature -40 to 70 °C, humidity 10% to 95%
Security: File-based disk encryption AES-128, data encryption with symmetric keys and PKI, device identity protected by device attestation, Arm TrustZone key protection, Kensington Lock, built on MDEP
Warranty: Two-year limited hardware warranty included. Additional one-year and three-year extended warranties are available at the time of hardware purchase
Package Contents: Tap IP 2 Touch Controller, documentation
Optional Accessories: Table Mount, Riser Mount, Wall Mount (sold separately)
Colors: Graphite (952-000289), Off-White (952-000292)
Please see the following datasheet for more information:
