Description
Logitech Tap Scheduler 2
Next-generation scheduling panel for meeting rooms
Options:

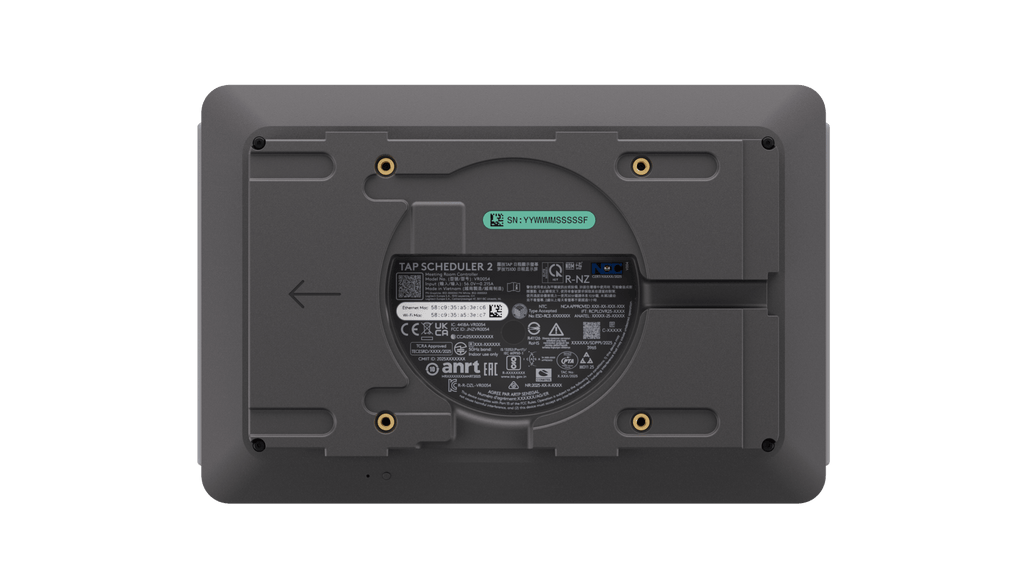

- Graphite (952-000295)

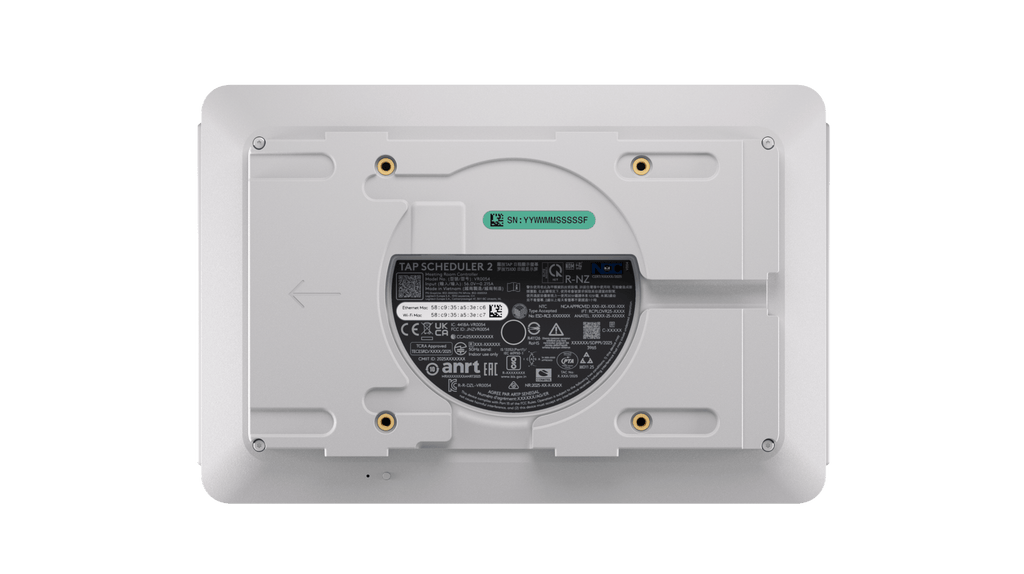

- Off-White (952-000298)
Light the way to an open space with Tap Scheduler 2. Brighter and more visible from afar, this purpose-built scheduling panel helps you maximize office utilization and boost team productivity. Tap Scheduler 2 helps your team find open rooms, view meeting details, and reserve the space. It’s quick to install, with versatile mounting options included, and works with major space management platforms.
Please see the following datasheet for more information:
Logitech Tap Scheduler 2 Features

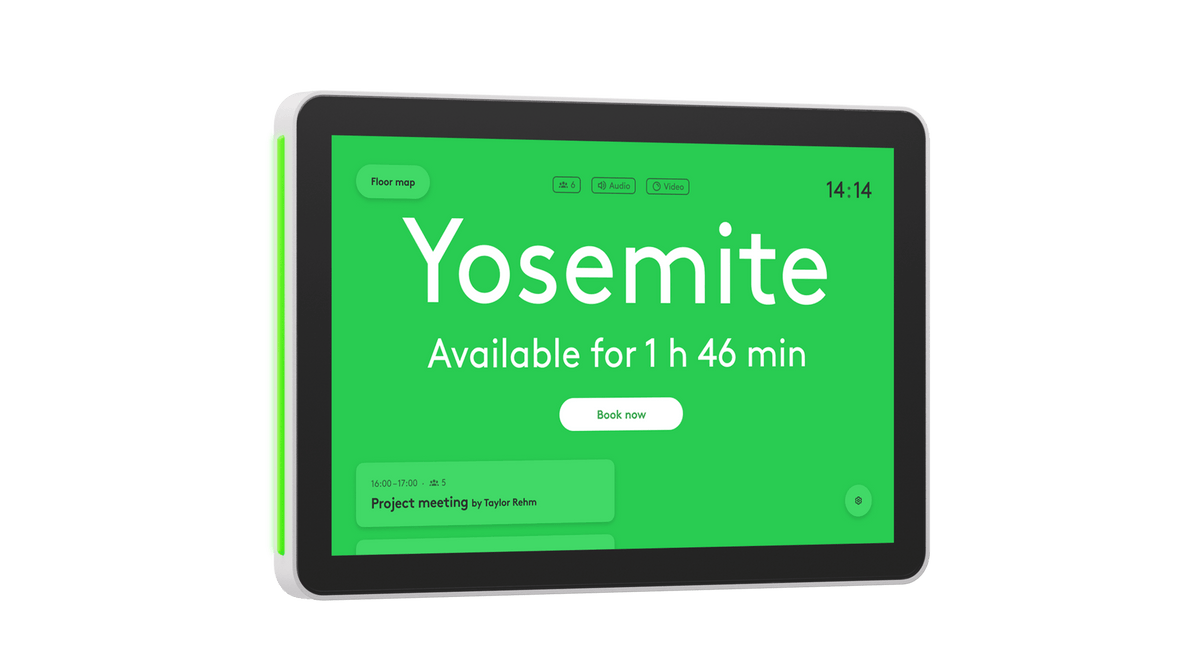

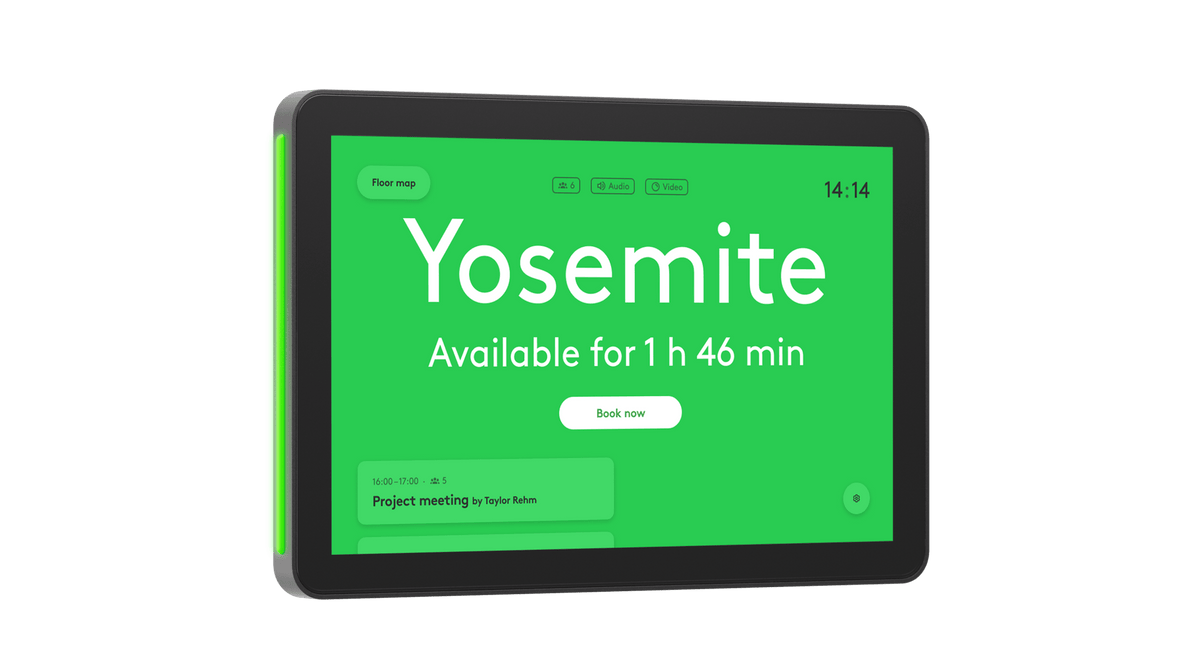

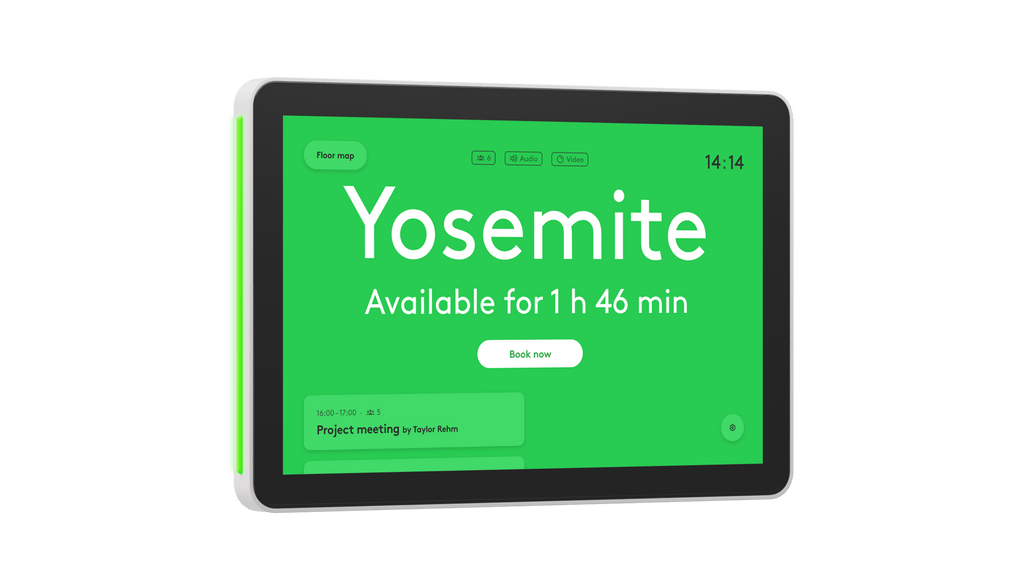

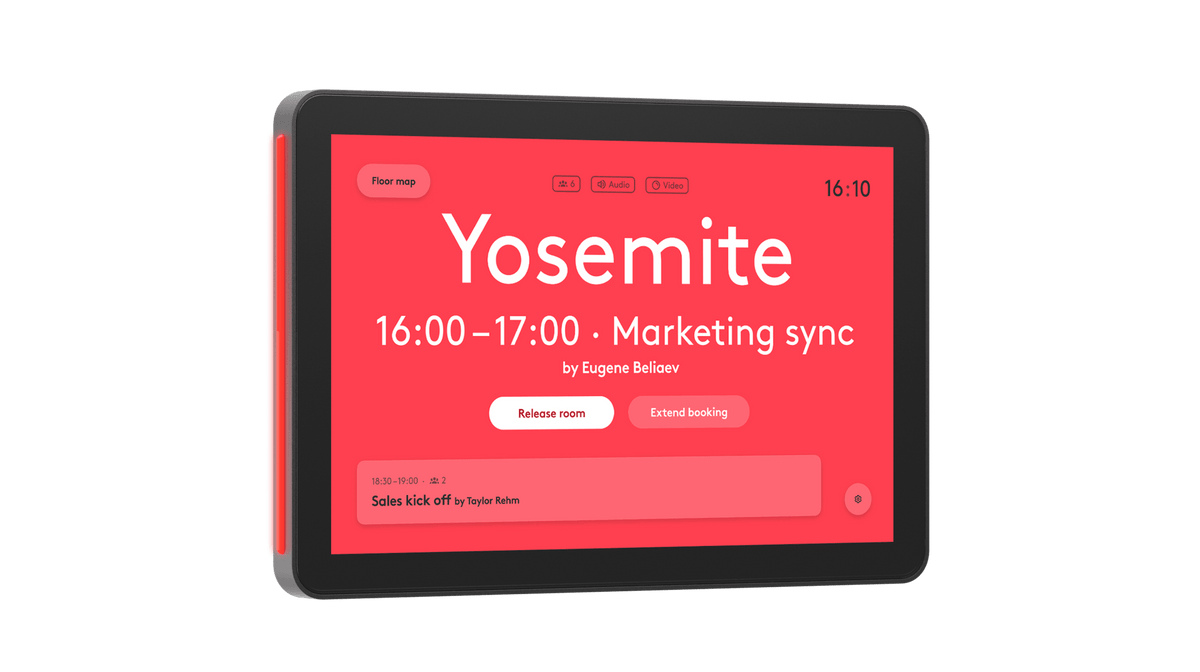

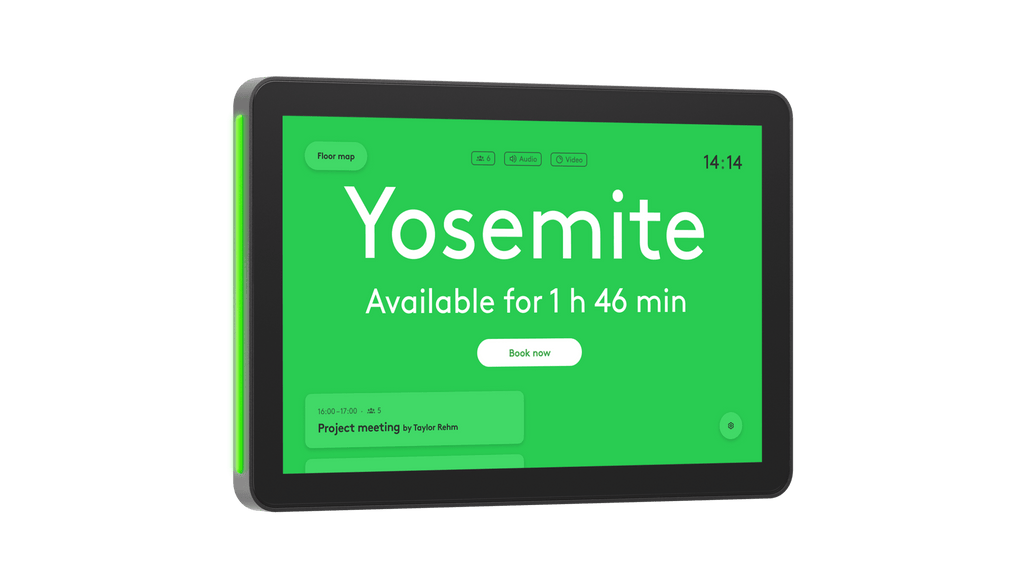

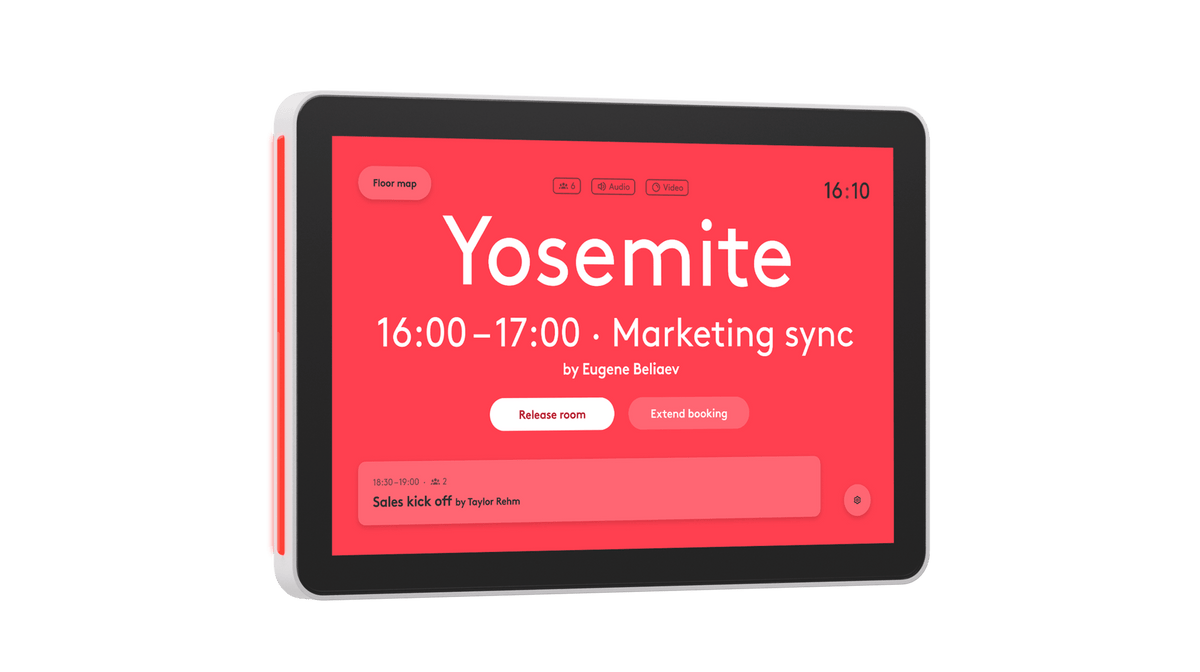

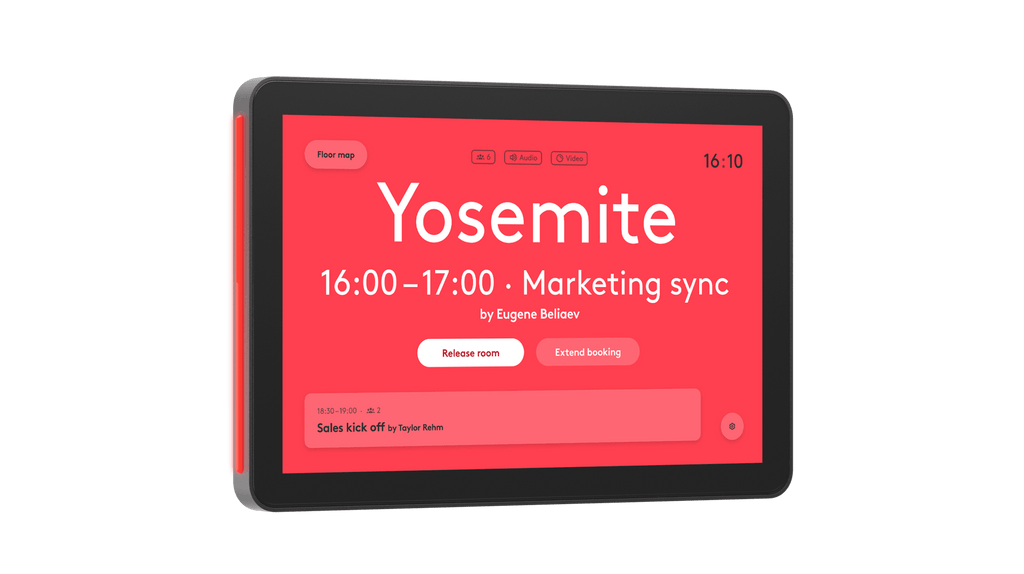

- See it, book it: Quickly find a room for your meeting with highly visible LED lights that provide room status at a glance. The touchscreen display wakes as you approach, allowing you to book the room immediately or reserve the space for a future meeting
- Pick your platform: Integrates with leading space management platforms, including Microsoft Teams, Zoom Workspace Reservation, Appspace, Logitech Room Booking, and more
- Install with ease: Install outside any room with the included multi-surface mount (glass/drywall) or mullion mount. An optional angle mount (sold separately) can be used for lower or angled viewing. Deploys with a single PoE cable connection that offers flexible routing options
- Maximize every space: Pair with presence detection from Logitech Spot to see when spaces are in use, auto-release them when participants don’t show, and get insights to optimize space utilization (insights and auto-book and release require a service plan license)
Logitech Tap Scheduler 2 Specs
- Dimensions (H x W x D): Device-only: 165 x 246.2 x 28.5 mm (6.5 x 9.69 x 1.12 in); Surface-mounted: 165 x 246.2 x 31.4 mm (6.5 x 9.69 x 1.24 in); Mullion-mounted: 165 x 292.6 x 44.5 mm (6.5 x 11.52 x 1.75 in)
- Screen: 10.1” (256.54 mm) diagonal In-Plane Switching (IPS) anti-glare LCD panel with LED backlighting, 1920 x 1200 resolution, 380 nits brightness, 1500:1 contrast, 80° viewing angle (up/down/left/right), 0° position angle (flat on mounting surface), capacitive 10-point multi-touch, oleophobic anti-fingerprint coating

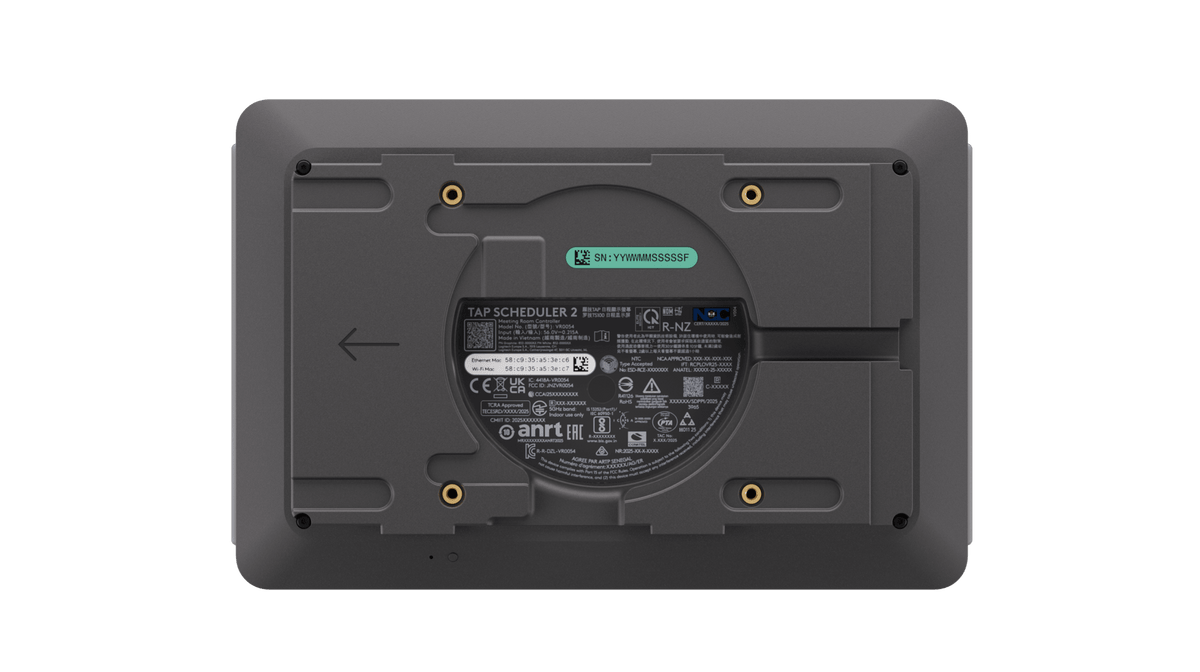

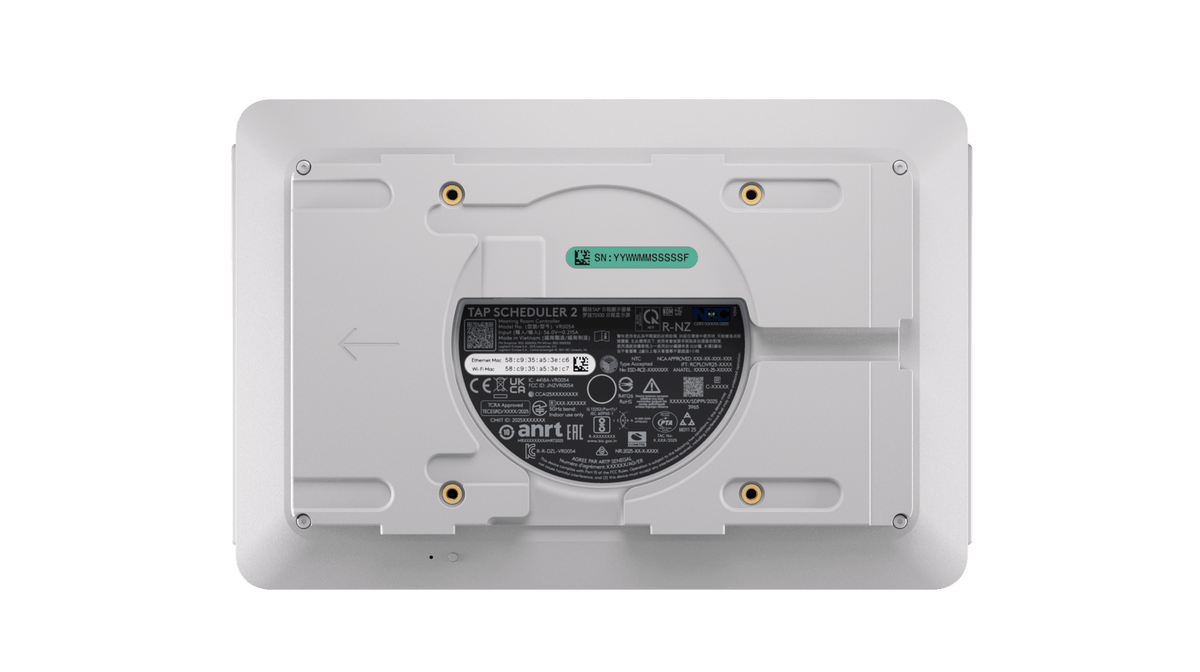

- Ports & Interfaces: Ethernet 10/100 Mbps, Wi-Fi 802.11a/b/g/n/ac/ax, Bluetooth 5.0, 100 mm x 100 mm VESA FDMI mounting pattern
- Power: Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. Requires PoE-enabled network or PoE injector and Ethernet cable (not included)
- Sensors: Accelerometer, ambient light, radar motion sensors
- Cable exits: Horizontal / vertical / center
- Operating system: Logitech CollabOS
- Device management: Monitor and manage with Logitech Sync, Microsoft Teams Admin Center, and Zoom Device Management platforms
- Compatibility: Microsoft Teams Panel, Zoom Rooms Scheduling Display, Robin room display, Appspace meeting room display, Logitech Room Booking. For the latest certification and compatibility information, see www.logitech.com/support/tapscheduler2compatibility
- Environmental: Operating temperature 0 to 40 °C, storage temperature -40 to 70 °C, humidity 10% to 95%
- Security: File-based disk encryption AES-128, data encryption with symmetric keys and PKI, device identity protected by device attestation, Arm TrustZone key protection, Kensington lock, built on MDEP
- Warranty: Two-year limited hardware warranty included. Additional one-year and three-year extended warranties are available at the time of hardware purchase
Logitech Tap Scheduler 2 Contents
- Logitech Tap Scheduler 2
- Multi-surface mount (glass/drywall)
- Mullion mount
- Mounting hardware
- Documentation
