Description

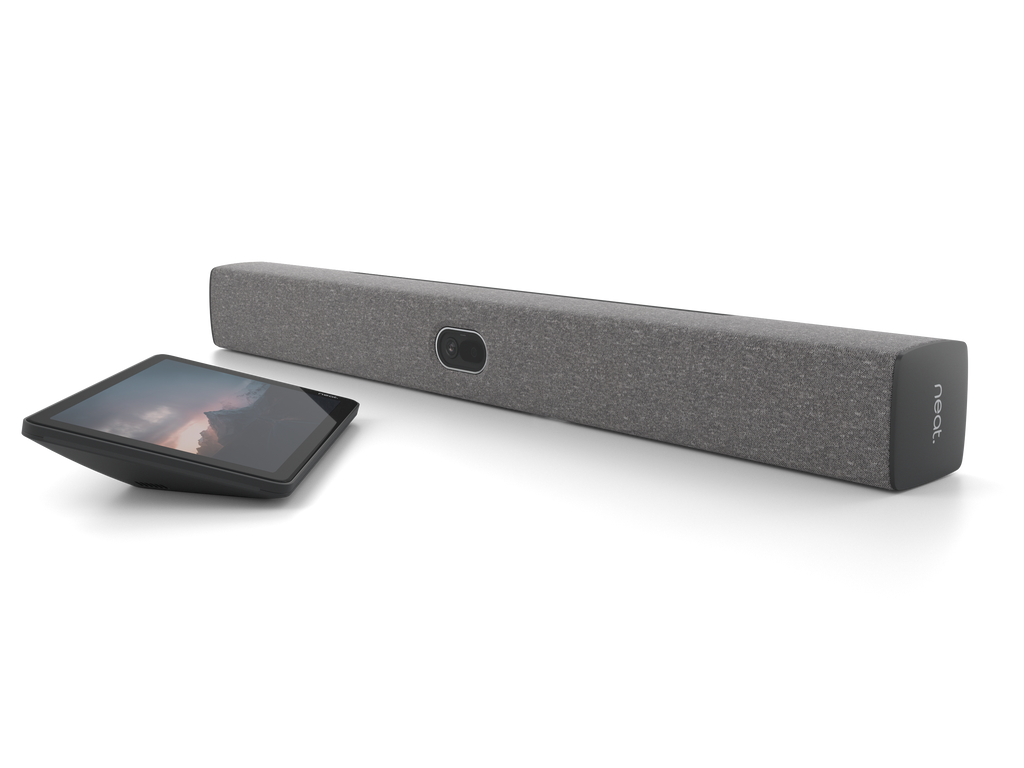

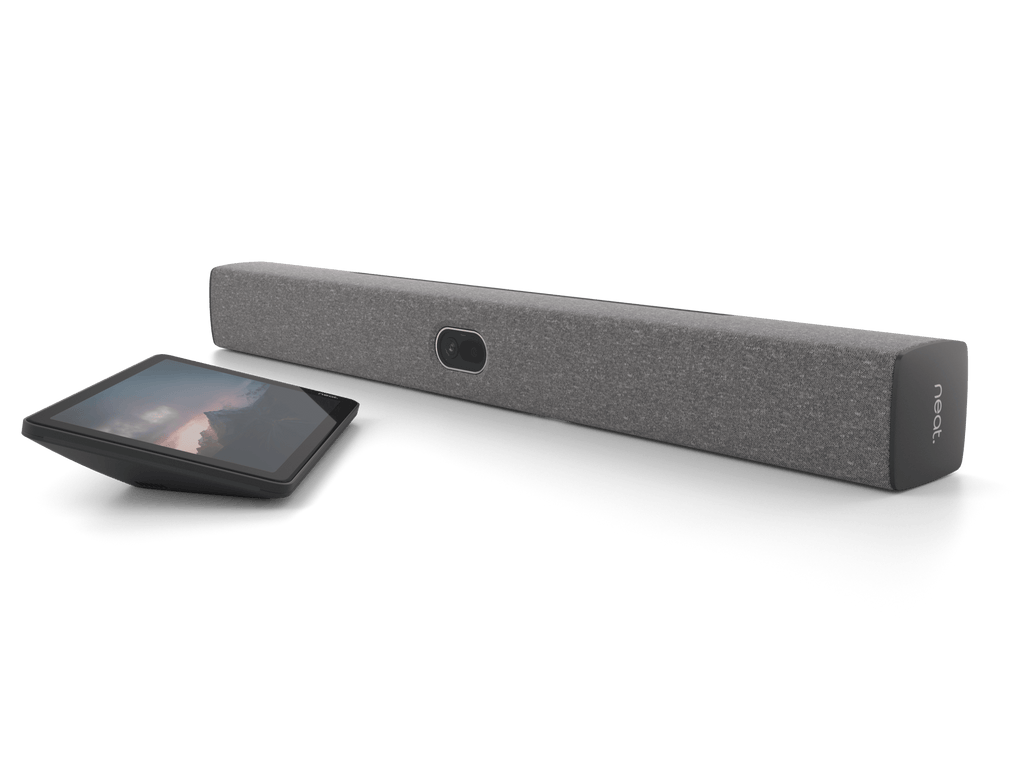

This bundle pairs the Neat Bar Generation 2 video bar (NEATBAR2-SE) with the Neat Pad Generation 2 controller (NEATPAD2-SE) for a complete small-to-medium meeting room. Neat rates the bar for rooms with up to 16 ft / 5 m reach. You get a 50MP 113° camera, dual HDMI outputs for two 4K displays, a 5-microphone array, and an 8-inch PoE touch pad for in-room control or door-side scheduling. Use it as a dedicated Zoom Rooms, Microsoft Teams Rooms on Android, or Google Meet room—or plug in a laptop over USB-C for BYOD.
The Telecom Spot Take
Buy this kit when you want one Gen 2 bar and one Gen 2 pad in the same cart for huddle rooms and everyday conference rooms. The bar is the front-of-room camera, mics, and speakers. The pad is how people start and run the meeting. Do not use Pad Gen 2 with first-generation Bar, Board, or Frame. VESA screen mounts for the bar and wall, glass, or side mounts for the pad are sold separately. If your switch cannot feed IEEE 802.3af Class 3 PoE to the pad, add a PoE adapter.
Key Features
- Bar plus pad in one order: NEATBAR2-SE handles video and room audio. NEATPAD2-SE is the 8-inch controller and scheduling display Neat lists as compatible with Bar Gen 2.
- Sized for small and medium rooms: Neat publishes 16 ft / 5 m reach for Bar 2. That is the decision spec versus Bar Pro, which Neat rates to 33 ft / 10 m.
- 50MP camera with 113° view: Fixed f/2.8 lens, 4x digital zoom, automatic people framing, plus adaptive group, dynamic individual, and dynamic speaker-focus modes. People video is up to 1080p30.
- Two 4K screens: Two HDMI outputs. Neat Support states Bar 2 can drive up to two displays at 4Kp60. Dedicated rooms get dual-screen support on Zoom, Teams, and Google Meet; BYOD-only mode is single-screen.
- Room audio in the bar: Five microphones in an end-fire array, four tracking mics, echo cancellation, noise suppression, automatic gain control, and dereverberation. Opposing full-range drivers cancel vibration. The pad adds one table mic that the bar processes when both units use wired Ethernet.
- 8-inch Gen 2 controller: 1280 × 800 touch display, Gigabit Ethernet, IEEE 802.3af PoE Class 3, and Wi-Fi 6E. Use it at the table or as a scheduler outside the door. RGB side LEDs follow the meeting platform’s free/busy colors.
- One-cable BYOD: USB-C passthrough runs a meeting app from a laptop with or without the pad. HDMI-in remains available for wired content share. Ultrasound wireless share is listed on the bar; Neat notes ultrasound is not supported on Microsoft Teams.
- Platforms Neat publishes: Native Zoom Rooms, native Microsoft Teams Rooms on Android, and Google Meet. Bluetooth is listed for Teams proximity join. Manage both devices in Neat Pulse.
- Mounts you still order: The bar carton includes a table stand, wall mount, snap-on mount, and mount adapter. The optional VESA screen-mount kit does not ship with NEATBAR2-SE. Pad Gen 2 ships with no mount and no PoE injector.
Technical Specifications
| Specification | Details |
|---|---|
| Bundle | Neat Bar Generation 2 + Neat Pad Generation 2 |
| Product type | All-in-one video bar with meeting controller / scheduling display |
| Brand | Neat |
| Bar model / SKU | Neat Bar Generation 2 (Neat Bar 2, Neat Bar Gen 2) / NEATBAR2-SE |
| Pad model / SKU | Neat Pad Generation 2 (Neat Pad Gen 2) / NEATPAD2-SE |
| Stated room use | Small and medium spaces; 16 ft / 5 m reach (manufacturer) |
| Platform (both devices) | Neat Generation 2 / P2 family; NeatOS |
| Native meeting platforms | Zoom Rooms; Microsoft Teams Rooms on Android; Google Meet; USB-C BYOD |
| Bar camera | 50 MP, f/2.8, 113° horizontal FOV, fixed lens, infinite focus, 4x digital zoom |
| Bar video processing | Automatic people framing; distortion, noise, and chromatic-aberration correction; automatic white balance and color correction; hardware-accelerated encode/decode |
| People video | Up to 1080p / 30 fps |
| Content / display outputs | 2 × HDMI out; Neat Support: up to two displays at 4Kp60. Device sheet also lists content at 720p/60 and 1080p/30. HDMI-in for screen share. |
| Bar microphones | 5-mic end-fire array plus 4 tracking mics; beamforming and voice tracking |
| Bar speakers | Speakerbox with opposing full-range drivers for vibration cancellation; dual passive radiators (manufacturer comparison table) |
| Bar audio processing | Hardware-accelerated; echo cancellation; noise suppression; automatic gain control; dereverberation; ultrasonic support for wireless content sharing |
| Bar sensors | Wake-up, ambient light, orientation (accelerometer). No privacy shutter. People-count is listed for Bar Gen 2 in Neat Sense notes. Air-quality, temperature, and humidity sensors are in the pad, not the bar. |
| Pad display | 8-inch diagonal, 1280 × 800, 16:10, capacitive multi-touch; anti-glare and anti-fingerprint coating; ambient light sensor; fixed 19° viewing angle |
| Pad status lighting | RGB side LEDs; platform-defined room-status colors; color-blindness accessibility setting |
| Pad audio | One integrated microphone processed by the primary room device; ultrasound-capable speakers (ultrasound not supported on Microsoft Teams). Enable pad mics only over wired Ethernet on both devices. Official pickup 2 m. If the pad mic is on, Neat currently supports one Neat Center. |
| Pad environmental sensors | Temperature, humidity, and VOC index (no CO₂ sensor on Pad Gen 2) |
| Controllers per room | Microsoft Teams and Google Meet: 1 room controller. Zoom Rooms: multiple Neat Pad Gen 2 controllers allowed. |
| Not compatible with | Pad Gen 2 does not work with Neat Bar Gen 1, Neat Board Gen 1, or Neat Frame. |
| Neat Center | Bar Gen 2 supports Neat Center (sold separately) |
| Bar networking and ports | Ethernet; Wi-Fi; Bluetooth (Teams proximity join); USB-C (BYOD / USB passthrough); 2 × HDMI out; 1 × HDMI in; AC power. USB-C also listed for debug / factory reset access. |
| Pad networking and ports | Ethernet 1.0 Gbps with PoE; Wi-Fi 6E; Bluetooth 5.2; USB-C debug only |
| Bar power | Built-in supply, 100–240 V ~ 50/60 Hz, 0.5 A. Idle 6 W; in call 10–13 W; network standby <8 W after 20 minutes. |
| Pad power | IEEE 802.3af PoE Class 3, mode A and B; 56 V, 0.275 A. Idle 3.4 W; idle screen off 2 W; in call 3.4 W. Optional PoE adapter POE-INJ-INT sold separately. |
| Operating environment (both) | 32° to 95° F (0° to 35° C); 10% to 90% relative humidity, non-condensing |
| Storage temperature (both) | −4° to 140° F (−20° to 60° C) |
| Bar size / weight | 25.59 × 2.76 × 2.76 in (650 × 70 × 70 mm); 3.75 lb (1.7 kg). Packed about 9.92 lb (4.5 kg). |
| Pad size / weight | 7.90 × 2.00 × 4.90 in (200 × 51 × 125 mm); 1.20 lb (0.54 kg) |
| Security (manufacturer-listed) | Secure boot on both; Kensington-compatible lock slot on the bar and on pad mount kits; pad also lists TLS 1.2/1.3, 802.1X (EAP), SELinux sandboxing, TEE, hardware-backed keystore |
| Management | Neat Pulse for remote configuration, monitoring, logs, and updates |
| Manufacturer hardware list (published) | NEATBAR2-SE $3,430 USD on the Feb 1, 2026 U.S. partner list; NEATPAD2-SE $1,090 USD on neat.no. Combined published list $4,520. neat.no consumer pages have also shown Bar 2 at $4,790. |
| Bar package contents (NEATBAR2-SE) | Neat Bar Generation 2; HDMI cable 6.5 ft (2 m); Ethernet cable 9.8 ft (3 m); power cable 9.8 ft (3 m); mount adapter; wall mount; table stand; snap-on mount; 2 mm hex key. VESA screen-mount kit is not in the box. |
| Pad package contents (NEATPAD2-SE) | Neat Pad Generation 2; 2 mm hex key; 9.8 ft (3 m) Ethernet cable; warranty book. No mount and no PoE power adapter in the box. |
| Sold separately | Neat Bar screen / VESA mount kit; Pad wall kit NP2-WALL-MNT-K, glass kit NP2-GLASS-MNT-K, or side kit NP2-SIDE-MNT-K; PoE adapter POE-INJ-INT; Neat Center; displays; Neat Pulse plans. Gen 1 pad mounts can be reused on Pad Gen 2. Pad Pro mounts are not compatible with Pad Gen 2. |
Frequently Asked Questions
What is included in this Neat Bar 2 + Pad Gen 2 bundle?
You receive two factory cartons. The bar box has Neat Bar Generation 2 (NEATBAR2-SE), a 6.5 ft HDMI cable, a 9.8 ft Ethernet cable, a 9.8 ft power cable, mount adapter, wall mount, table stand, snap-on mount, and a 2 mm hex key. The pad box has Neat Pad Generation 2 (NEATPAD2-SE), a 2 mm hex key, a 9.8 ft Ethernet cable, and a warranty book. Displays, VESA screen mounts, pad mounts, and a PoE injector are not included.
Will Neat Pad Generation 2 control Neat Bar Generation 2?
Yes. Neat lists Pad Gen 2 as a controller for Neat Bar Gen 2, Bar Pro, Board 32, Board 50, and Board Pro. It does not work with Bar Gen 1, Board Gen 1, or Frame. Put both devices on the same subnet to pair. Neat says that when you replace a Gen 1 pad, you must reset the paired bar as well.
Does the bundle support Zoom, Microsoft Teams, and Google Meet?
Neat publishes native Zoom Rooms, Microsoft Teams Rooms on Android, and Google Meet on Bar 2. Pad Gen 2 is listed as a Zoom controller and scheduler, a Teams Rooms on Android controller, and a Google Meet room controller. Teams panel/scheduling on the pad is listed as coming with MDEP. Meeting licenses are not in the hardware box. BYOD over USB-C can run other apps from a laptop.
How large a room is Neat Bar 2 for?
Neat rates Bar 2 for small and medium spaces with 16 ft / 5 m reach. That is the official figure to use for layout. For longer rooms Neat points to Bar Pro (33 ft / 10 m). The pad microphone pickup is published at 2 m and is processed by the bar, not as a standalone DSP mic.
Can I run Bar 2 without the pad?
Yes, in BYOD-only mode. Connect a laptop with one USB-C cable and run the meeting app from that computer. Dedicated Zoom, Teams, or Meet rooms need the pad for setup and day-to-day control. This listing includes the pad so the room can run as a dedicated appliance or as BYOD.
What else do I need to order?
A display or two displays, network drops, and AC power for the bar. Add the Bar 2 VESA / screen-mount kit if you are hanging the bar on the display instead of the included wall, table, or snap-on hardware. Add a Pad Gen 2 wall, glass, or side mount if you are not reusing a Gen 1 pad mount. Add POE-INJ-INT if the switch cannot supply IEEE 802.3af Class 3 to the pad.
