Description

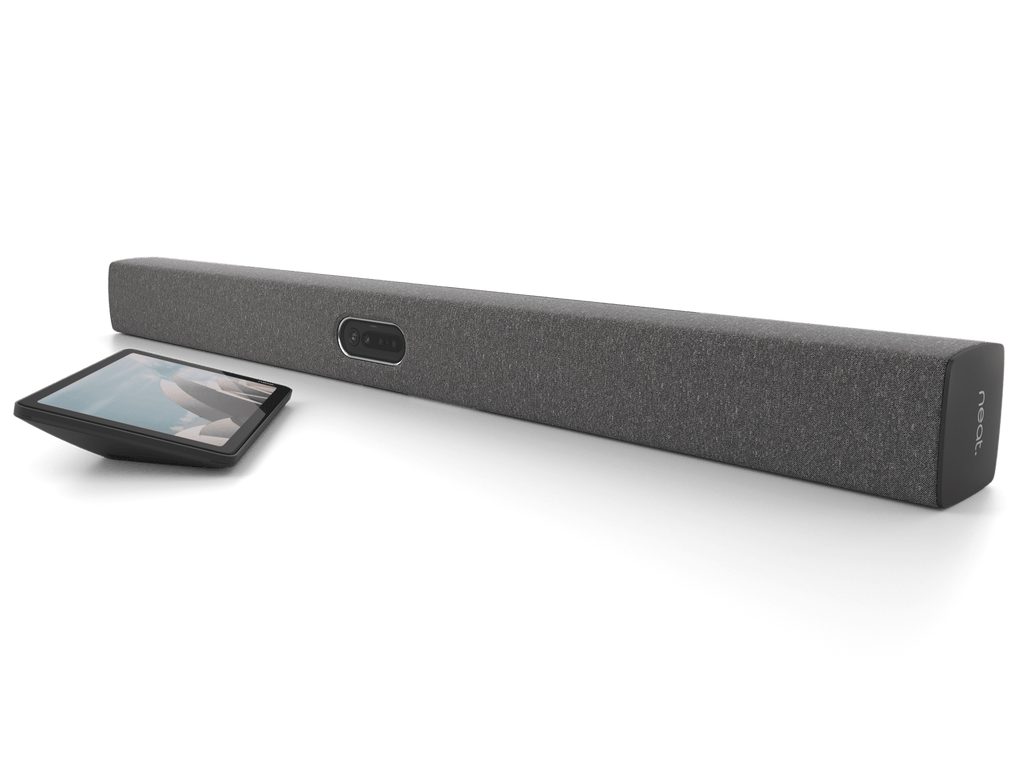

This bundle pairs the Neat Bar Pro video bar (NEATBARPRO-SE) with the Neat Pad Generation 2 controller (NEATPAD2-SE) for a dedicated large meeting room. Neat rates the bar for rooms with up to 33 ft / 10 m reach. You get a dual 50MP wide-plus-tele camera system with up to 16x hybrid zoom, a 16-microphone array, three HDMI outputs, and an 8-inch PoE touch pad for in-room control or door-side scheduling. Run it as a Zoom Rooms, Microsoft Teams Rooms on Android, or Google Meet room—or plug in a laptop over HDMI and USB-C for BYOD.
The Telecom Spot Take
Buy this kit when Bar Generation 2’s 16 ft / 5 m rating is too short for the room. Bar Pro is the longer-room camera, mic, and speaker unit. Pad Gen 2 is how people start and run the meeting. Neat lists Pad Gen 2 as compatible with Bar Pro; it is not compatible with first-generation Bar, Board, or Frame. The bar carton includes a table stand, wall mount, and screen mount. Pad wall, glass, or side mounts and a PoE adapter are sold separately. Google Meet and Microsoft Teams do not yet support three screens.
Key Features
- Bar plus pad in one order: NEATBARPRO-SE handles video and room audio. NEATPAD2-SE is the 8-inch controller and scheduling display Neat lists as compatible with Bar Pro, Bar Gen 2, Board 32, Board 50, and Board Pro.
- Sized for large rooms: Neat publishes 33 ft / 10 m reach for Bar Pro. The Feb 1, 2026 U.S. partner list also describes it for medium to large rooms up to 30 people within 30 ft / 10 m. That is the decision spec versus Bar 2 at 16 ft / 5 m.
- Dual 50MP cameras: Wide camera 50 MP, f/2.8, 113° horizontal field of view. Tele camera 50 MP, f/1.8, 70° horizontal field of view. Hybrid zoom up to 16x, automatic people framing, plus adaptive group, dynamic individual, and dynamic speaker-focus modes. People video is up to 1080p30.
- Up to three screens: Three HDMI outputs. Neat publishes 4K screen support and documents tested 16:9 modes including 3840 × 2160 at 60 Hz. Connect a single display to HDMI 1; use HDMI 2 and HDMI 3 for a second and third display. Neat states Google Meet and Microsoft Teams do not yet support three screens.
- Room audio in the bar: Sixteen microphones in a beamforming array, four tracking mics, three full-range speakers for directional and stereo sound, and woofers with two opposing drivers for vibration cancellation. Processing includes echo cancellation, noise suppression, automatic gain control, and dereverberation. The pad adds one table mic that the bar processes when both units use wired Ethernet.
- 8-inch Gen 2 controller: 1280 × 800 touch display, Gigabit Ethernet, IEEE 802.3af PoE Class 3, and Wi-Fi 6E. Use it at the table or as a scheduler outside the door. RGB side LEDs follow the meeting platform’s free/busy colors.
- BYOD over two cables: Bar Pro BYOD uses HDMI plus USB-C. Neat lists BYOD-only, auto, and manual modes, plus audio over USB. Unlike Bar Gen 2, Bar Pro is not listed for single-cable USB-C BYOD. Dedicated Zoom, Teams, or Meet rooms still need the pad for setup and day-to-day control.
- Platforms Neat publishes: Native Zoom Rooms, native Microsoft Teams Rooms on Android, and Google Meet. Bluetooth is listed for Teams proximity join. Manage both devices in Neat Pulse. Meeting licenses are not in the hardware boxes.
- Mounts you still order for the pad: The bar carton includes a table stand, wall mount, screen mount, and extra screw bags for dual or triple screens. Pad Gen 2 ships with no mount and no PoE injector. Order a wall, glass, or side kit if you are not reusing a Gen 1 pad mount.
Technical Specifications
| Specification | Details |
|---|---|
| Bundle | Neat Bar Pro + Neat Pad Generation 2 |
| Product type | All-in-one video bar with meeting controller / scheduling display |
| Brand | Neat |
| Bar model / SKU | Neat Bar Pro / NEATBARPRO-SE |
| Pad model / SKU | Neat Pad Generation 2 (Neat Pad Gen 2) / NEATPAD2-SE | Stated room use | Large rooms; 33 ft / 10 m reach (neat.no). Partner list also: medium to large rooms up to 30 people within 30 ft / 10 m |
| Platform | Neat lists Bar Pro on the Generation 2 platform comparison; Pad Gen 2 is P2 / NeatOS |
| Native meeting platforms | Zoom Rooms; Microsoft Teams Rooms on Android; Google Meet; HDMI + USB-C BYOD |
| Bar camera | Pro 100 MP system: wide 50 MP, f/2.8, 113° HFOV; tele 50 MP, f/1.8, 70° HFOV; hybrid zoom up to 16x |
| Bar video processing | Automatic people framing; distortion, noise, and chromatic-aberration correction; automatic white balance and color correction; hardware-accelerated encode/decode; time-of-flight depth sensor (VGA, 60° FOV) |
| People video | Up to 1080p / 30 fps |
| Content / display outputs | 3 × HDMI out; Neat publishes 4K screen support. Support article tested 16:9 modes including 3840 × 2160 @ 60 Hz and 21:9 modes including 3840 × 1600 @ 60 Hz. HDMI-in for screen share. Device sheet also lists content encode at 720p/60 and 1080p/30. |
| Triple-screen note | Google Meet and Microsoft Teams do not yet support three screens (manufacturer) |
| Bar microphones | 16-mic beamforming array plus 4 tracking mics |
| Bar speakers | 3 full-range speakers for directional and stereo sound; woofers with two opposing drivers for vibration cancellation |
| Bar audio processing | Hardware-accelerated; echo cancellation; noise suppression; automatic gain control; dereverberation; ultrasonic support for wireless content sharing |
| Bar sensors | Wake-up (radar); depth (time-of-flight); orientation (accelerometer); ambient light; temperature, humidity, and air quality (asterisked on older device sheets as not yet supported by Microsoft Teams) |
| Pad display | 8-inch diagonal, 1280 × 800, 16:10, capacitive multi-touch; anti-glare and anti-fingerprint coating; ambient light sensor; fixed 19° viewing angle |
| Pad status lighting | RGB side LEDs; platform-defined room-status colors; color-blindness accessibility setting |
| Pad audio | One integrated microphone processed by the primary room device; ultrasound-capable speakers (ultrasound not supported on Microsoft Teams). Enable pad mics only over wired Ethernet on both devices. Official pickup 2 m. If the pad mic is on, Neat currently supports one Neat Center. |
| Pad environmental sensors | Temperature, humidity, and VOC index (no CO₂ sensor on Pad Gen 2) |
| Controllers per room | Microsoft Teams and Google Meet: 1 room controller. Zoom Rooms: multiple Neat Pad Gen 2 controllers allowed. |
| Not compatible with | Pad Gen 2 does not work with Neat Bar Gen 1, Neat Board Gen 1, or Neat Frame. |
| Neat Center | Bar Pro supports Neat Center (sold separately). Multi-Center setups are listed for Generation 2 front-of-room devices, including Bar Pro. |
| Bar networking and ports | Ethernet; Wi-Fi (2.4 and 5 GHz on Neat devices generally); Bluetooth (Teams proximity join); USB-C (BYOD / third-party touch screen; audio over USB listed); 3 × HDMI out; 1 × HDMI in; AC power; auxiliary RJ45 for third-party audio extensions (older sheets mark this as a future software update) |
| Pad networking and ports | Ethernet 1.0 Gbps with PoE; Wi-Fi 6E; Bluetooth 5.2; USB-C debug only |
| Bar power | Built-in supply, 100–240 V ~ 50/60 Hz, 1.2 A. Widely published device-sheet figures: idle 6 W; in call 8–15 W. Network standby <8 W after 20 minutes appears in user manuals. |
| Pad power | IEEE 802.3af PoE Class 3, mode A and B; 56 V, 0.275 A. Idle 3.4 W; idle screen off 2 W; in call 3.4 W. Optional PoE adapter POE-INJ-INT sold separately. |
| Operating environment (both) | 32° to 95° F (0° to 35° C); 10% to 90% relative humidity, non-condensing |
| Storage temperature (both) | −4° to 140° F (−20° to 60° C) |
| Bar size / weight | 35.04 × 3.15 × 3.15 in (890 × 80 × 80 mm); 6.83 lb (3.1 kg) |
| Pad size / weight | 7.90 × 2.00 × 4.90 in (200 × 51 × 125 mm); 1.20 lb (0.54 kg) |
| Security (manufacturer-listed) | Secure boot on both; Kensington-compatible lock slot on the bar and on pad mount kits; tripod thread 1/4-20 UNC on the bar; pad also lists TLS 1.2/1.3, 802.1X (EAP), SELinux sandboxing, TEE, hardware-backed keystore |
| Management | Neat Pulse for remote configuration, monitoring, logs, and updates |
| Bar package contents (NEATBARPRO-SE) | Neat Bar Pro; HDMI cable 6.5 ft (2 m); Ethernet cable 9.8 ft (3 m); power cable 9.8 ft (3 m); mount adapter; wall mount; screen mount; table stand; 4 × M8 and 4 × M6 VESA screws; 2 spacers; 5 mm and 2 mm hex keys; 2 additional screw bags for dual or triple screen setup (extra M8/M6 screws and spacers) |
| Pad package contents (NEATPAD2-SE) | Neat Pad Generation 2; 2 mm hex key; 9.8 ft (3 m) Ethernet cable; warranty book. No mount and no PoE power adapter in the box. |
| Sold separately | Pad wall kit NP2-WALL-MNT-K, glass kit NP2-GLASS-MNT-K, or side kit NP2-SIDE-MNT-K; PoE adapter POE-INJ-INT; Neat Center; displays; meeting licenses; Neat Pulse plans. Gen 1 pad mounts can be reused on Pad Gen 2. Pad Pro mounts are not compatible with Pad Gen 2. |
Frequently Asked Questions
What is included in this Neat Bar Pro + Pad Gen 2 bundle?
You receive two factory cartons. The bar box has Neat Bar Pro (NEATBARPRO-SE), a 6.5 ft HDMI cable, a 9.8 ft Ethernet cable, a 9.8 ft power cable, mount adapter, wall mount, screen mount, table stand, VESA screws, spacers, hex keys, and extra screw bags for dual or triple screens. The pad box has Neat Pad Generation 2 (NEATPAD2-SE), a 2 mm hex key, a 9.8 ft Ethernet cable, and a warranty book. Displays, pad mounts, and a PoE injector are not included.
Will Neat Pad Generation 2 control Neat Bar Pro?
Yes. Neat lists Pad Gen 2 as a controller for Neat Bar Pro, Bar Gen 2, Board 32, Board 50, and Board Pro. It does not work with Bar Gen 1, Board Gen 1, or Frame. Put both devices on the same subnet to pair. Neat recommends wired Ethernet for setup. When you replace a Gen 1 pad, Neat says you must reset the paired bar as well.
How large a room is Neat Bar Pro for?
Neat rates Bar Pro for large rooms with 33 ft / 10 m reach. For shorter huddle and everyday rooms, use a Neat Bar 2 at 16 ft / 5 m. The pad microphone pickup is published at 2 m and is processed by the bar.
Can I use three displays with Zoom, Teams, and Google Meet?
The bar has three HDMI outputs and Neat publishes 4K screen support. Connect display one to HDMI 1, then HDMI 2 and HDMI 3. Neat states that Google Meet and Microsoft Teams do not yet support three screens. Zoom is the platform Neat has historically associated with three-screen rooms. Confirm current platform limits before you buy three displays.
Does the bundle support Zoom, Microsoft Teams, and Google Meet?
Neat publishes native Zoom Rooms, Microsoft Teams Rooms on Android, and Google Meet on Bar Pro. Pad Gen 2 is listed as a Zoom controller and scheduler, a Teams Rooms on Android controller, and a Google Meet room controller. Teams panel/scheduling on the pad is listed as coming with MDEP. Meeting licenses are not in the hardware box. BYOD uses HDMI plus USB-C from a laptop.
What else do I need to order?
One to three displays, network drops, and AC power for the bar. Add a Pad Gen 2 wall, glass, or side mount if you are not reusing a Gen 1 pad mount. Add POE-INJ-INT if the switch cannot supply IEEE 802.3af Class 3 to the pad. Add Neat Center if the room is longer than the bar alone is meant to cover. Add Zoom, Teams, or Meet room licensing separately.
