Description

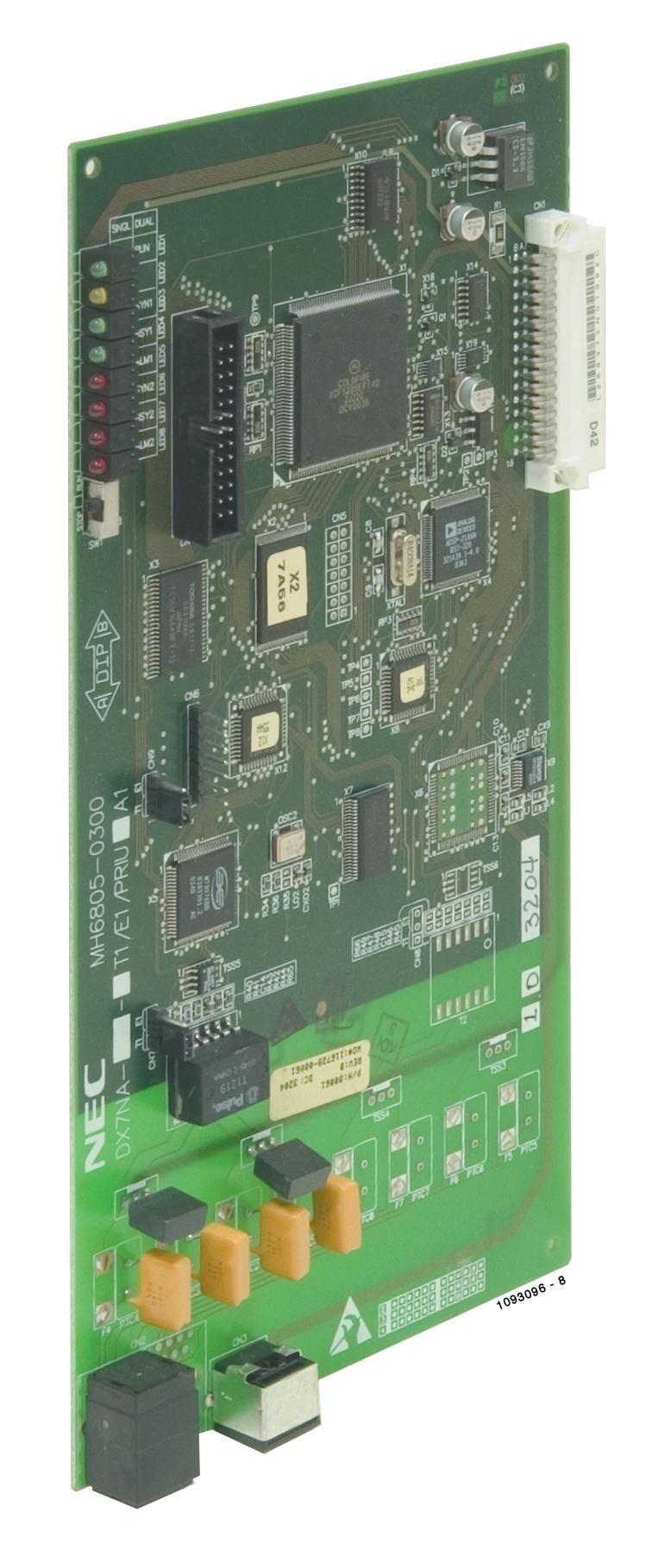

NEC DSX-80/160 T1/PRI Card (1091006)
The T1/E1/PRI Line Card provides T1 advanced digital calling and gives the DSX-80/160 a maximum of 24 trunks in a single card slot. The available T1 line types include:
- Loop Start (DTMF and Dial Pulse)
- Ground Start (DTMF and Dial Pulse)
- Direct Inward Dialing (DID) Wink Start (DTMF and Dial Pulse)
- Direct Inward Dialing (DID) Immediate Start (DTMF and Dial Pulse)
- E&M Tie Line Wink Start (DTMF and Dial Pulse)
- E&M Tie Line Immediate Start (DTMF and Dial Pulse)
- Line ports: 24
- Activity LED : Yes
- Mode switch: Yes
- Diagnostic LEDs: Yes
- Status LED: Yes
- CSU required: Yes
- Max. installed in DSX-80: 3 (64 line ports in 3 T1/E1/PRI Cards, with 8 T1 circuits disabled in programming)
- Max. installed in DSX-160: 3 (64 line ports in 3 T1/E1/PRI Cards, with 8 T1 circuits disabled in programming)
