Description

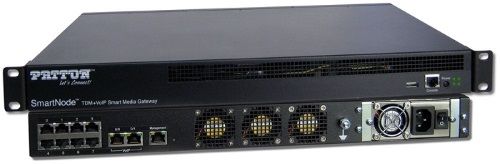

Patton SmartNode SN10100/4E8/RUI SS7 Gateway
Patton SN10100/4E8/RUI SmartNode SmartMedia Gateway 4 E1/T1, 120 VoIP Channels with Standard Signaling Set, Software Upgradeable to 8 E1/T1, 240 VoIP Channels. Redundant Universal AC
Patton SmartNode SN10100 series SS7 Gateway enables SIP-to-SS7 and H.323 VoIP services delivery by bridging voice traffic between the public switched telephone network (PSTN)—based on time-division multiplexing (TDM) with SS7 signaling—and emerging SIP-over-IP telephony networks. Service providers are adding VoIP capabilities to their sigtran SS7 networks to reduce the cost of interconnecting with other carriers, to cost-effectively build out their network footprints, or simply to transport voice traffic across their IP backbones. Positioned at the telephony-network core or edge, SmartNode SS7 media gateways provide a built-in the sigtran SS7 protocol stack that enables service providers to deliver SIP-over-IP VoIP services while maintaining the quality and the reliability of traditional TDM telephony networks that use the sigtran protocol.
Patton SN10100/4E8/RUI Gateway Features:
- 4 to 8 x T1/E1/J1 in a 1U chassis—Low cost per port; up to 66% rack and space cost savings
- 128 to 256 VoIP channels (field upgradable)—Simple field upgrade by purchasing our hardware-ready models
- Increased system up-time—SS7 link redundancy, dual power supply support, field-upgradable components
- Low operating expense (up to 80% cost savings) significantly improves ROI—Low power consumption (150 W for the SN10100 at full capacity)
- Connect with confidence to diverse VoIP endpoints and IP fax—Extensive media handling support for wireline, wireless and fax codecs
- See Patton SmartNode SN10100 datasheet for full spec
