Description

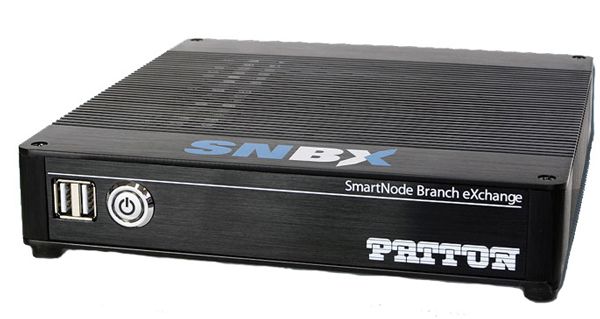

Patton SNBX IP-PBX Appliance - SNBX64/W3CX/EUI
The Patton SNBX, short for Smart Node Branch eXchange, is a fully-loaded Enterprise IP PBX appliance made easy for any business. SmartNode Branch eXchange (SNBX), 64 SIP calls, Windows 7 pre-installed, free version of 3CX Phone System comes pre-installed, External UI Power
In addition to running 3CX Phone System, the SNBX web GUI provides device monitoring and application management, and is open to 3rd party applications. No keyboard or mouse is required since the web GUI can be accessed from anywhere.
The SNBX fits your network by supporting any IP phone or softphone you prefer. You can keep your trusted PSTN lines or analog/ISDN phone equipment by simply adding Patton’s SmartNode Gateways. Or you can provide secure, prioritized VoIP by using a SmartNode VoIP Router to connect to your SIP trunks. Setup is quick and easy as the SNBX provides a built-in, extensive SmartNode configuration tool supplementing the supported configurations supplied by 3CX.
Feature & Specs:
Plug and Play
Comes with 3CX Phone System and Windows 7 already installed.
Up to 64 SIP Calls with Transcoding
Comes with any 3CX edition up to 64 simultaneous calls and supports up to 500 extensions.
Monitoring and Management
Web GUI for device monitoring and application management. Also includes built-in SmartNode Gateway configurator.
BYOP – Bring your own phone
Choose your own IP phones or softphones; no vendor lockin.
Keep Your Existing Equipment
Add a SmartNode Gateway to connect existing analog/ISDN equipment.
SIP Trunks or PSTN
Save on monthly call costs using SIP Trunks or receive and make calls via the standard PSTN using SmartNode Gateways and VoIP Routers.
Processor
1.8 Ghz Intel Dual Core Atom with Hyper Threading
Memory
4GB of DDR3 RAM
Hardrive
250GB
Ethernet
1 10/100/1000 Ethernet Port
Operating System
Windows 7
3CX Phone System
Version 11
Dimensions
1.4 x 7.5 x 7.7 in.
Weight
2.8 lbs. (1.27 kg)
External Power Supply
12 Volt 5 Amp
Capacity
64 calls with Transcoding
128 calls without Transcoding
20 CPS
100 CAPS
