Description
When your network has to work in places that would fry or freeze ordinary Wi-Fi gear, the Peplink AP One Rugged steps up. Built with a tough metal case and engineered for real-world punishment, this access point keeps your team connected in extreme temperatures, dusty factories, moving vehicles, or outdoor installs. You get fast dual-band Wi-Fi 5, easy mesh expansion, and simple power options so you can deploy once and forget it.
The Telecom Spot Expert Take
We love the AP One Rugged because it solves the “it worked in the office but died outside” problem. With railway-level certifications and a wide -40°F to 149°F operating range, it handles vibration, shock, and electromagnetic noise that would take down consumer-grade gear. Pair it with Peplink routers and InControl 2 for centralized management across dozens of sites.
Key Features
- Extreme-temperature toughness – Runs perfectly from -40°F to 149°F so you can mount it in freezers, hot factories, or sun-baked rooftops without worry.
- Rugged metal enclosure – Built to shrug off shock, vibration, and electromagnetic interference; backed by EN 61373 and full railway certifications.
- Flexible power & mounting – Use standard 802.3at PoE or the industrial microfit connector; DIN-rail mount for walls, poles, or ceilings.
- Wi-Fi 5 2x2 MIMO performance – Up to 300 Mbps on 2.4 GHz and 866 Mbps on 5 GHz with external antennas for strong signal.
- Mesh & wired expansion – Seamless mesh networks plus three Gigabit Ethernet ports for cameras, PLCs, and more.
- Enterprise management – Full control through InControl 2 cloud platform.
Technical Specifications
| Category | Details |
|---|---|
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) 2x2 MIMO, dual-band |
| Data Rates | 2.4 GHz: up to 300 Mbps 5 GHz: up to 866 Mbps |
| Channels | 20/40/80 MHz |
| Transmit Power | 17 dBm (both bands) |

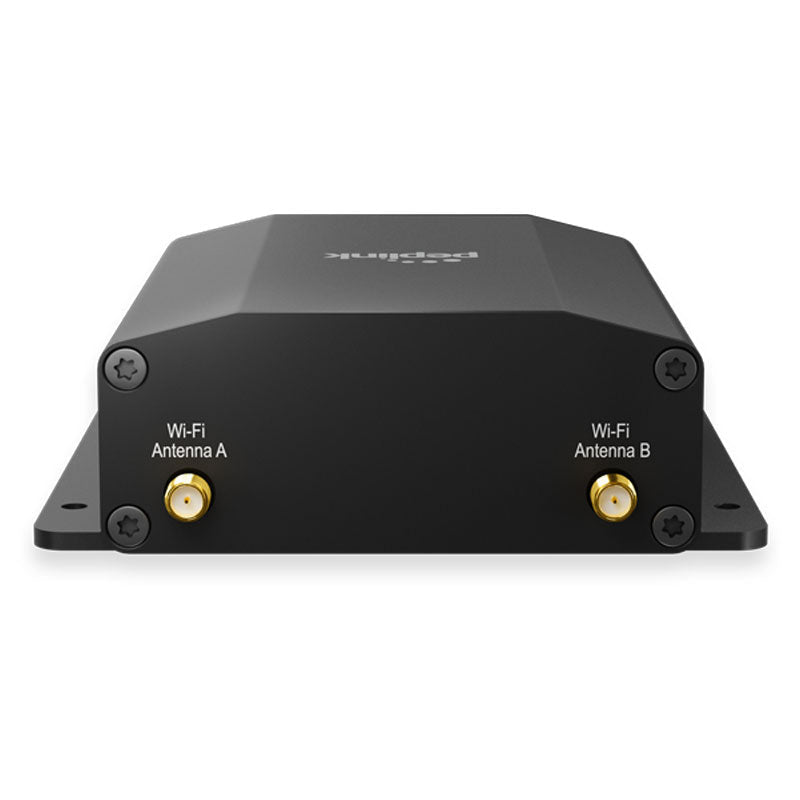

| Antennas | 2x external 3 dBi dual-band omni (RP-SMA) |

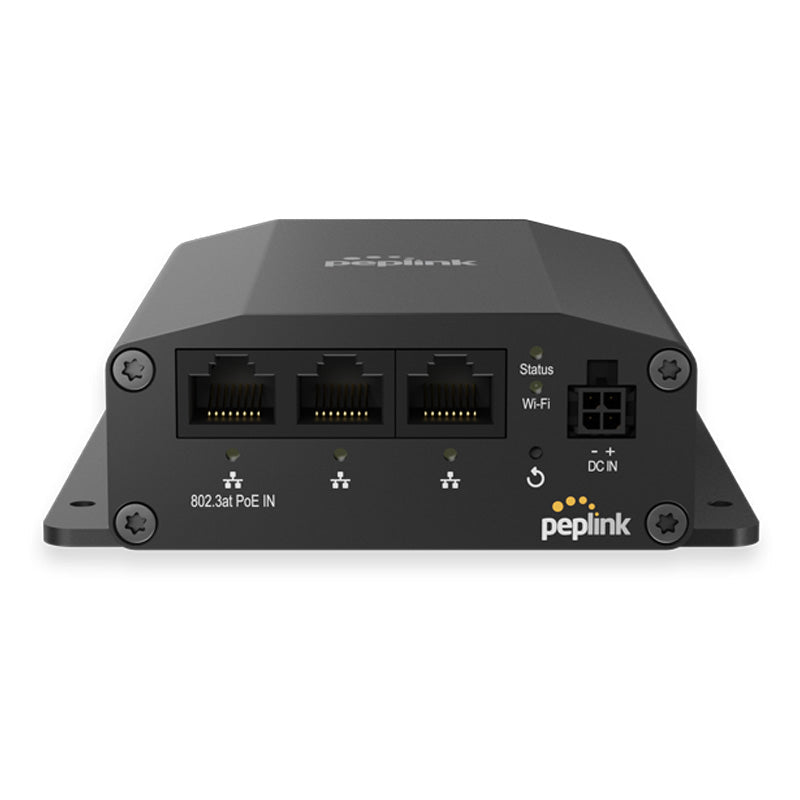

| Ethernet Ports | 3x 10/100/1000 Mbps (1x 802.3at PoE input) |
| Power Input | 10V–30V DC or 802.3at PoE |
| Power Consumption | 13 W maximum |
| Enclosure | Ruggedized metal |
| Dimensions | 4.8 × 4.2 × 1.4 in (122.1 × 107 × 35 mm) |
| Weight | 0.8 lb (365 g) |
| Operating Temperature | -40°F to 149°F / -40°C to 65°C |
| Humidity | 15%–95% (non-condensing) |
| Certifications | FCC, CE, IC, E-Mark, RoHS, EN 50155, EN 50121-3-2, EN 50121-4, EN 61373 |
| Management | InControl 2, web UI, SNMP, AP Controller |
| Warranty | 1-year limited |
