Description

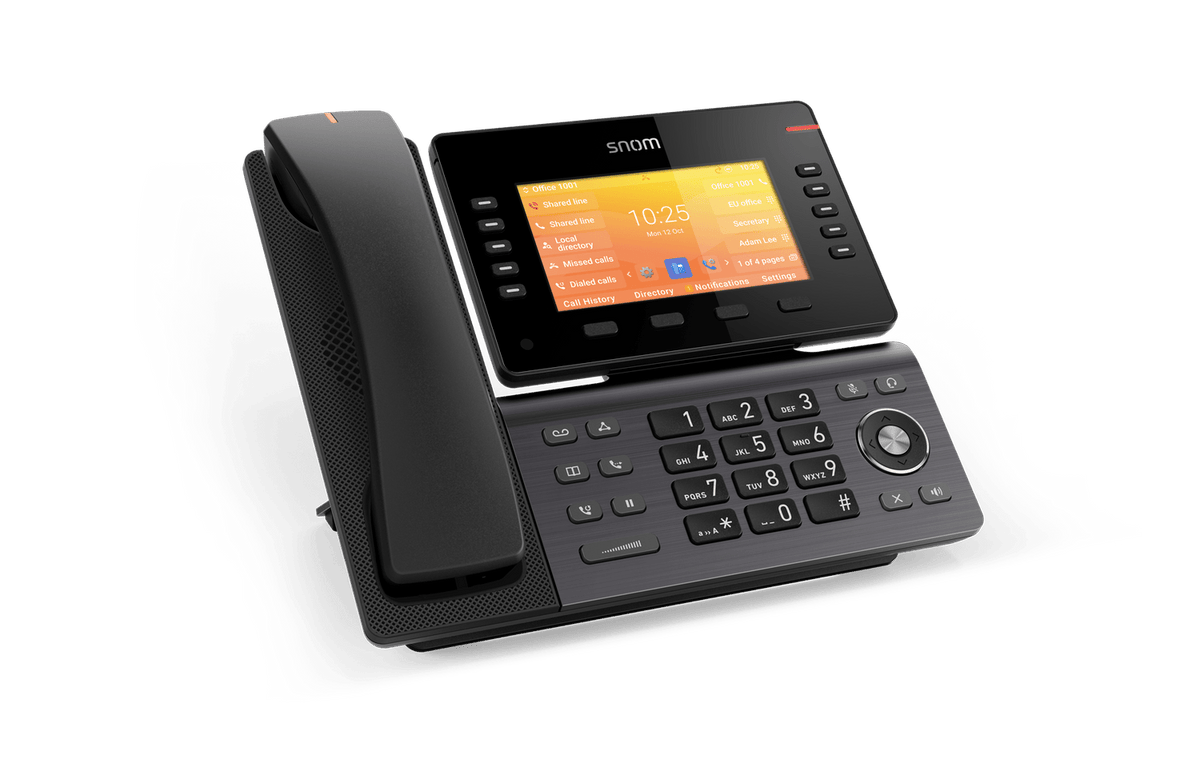

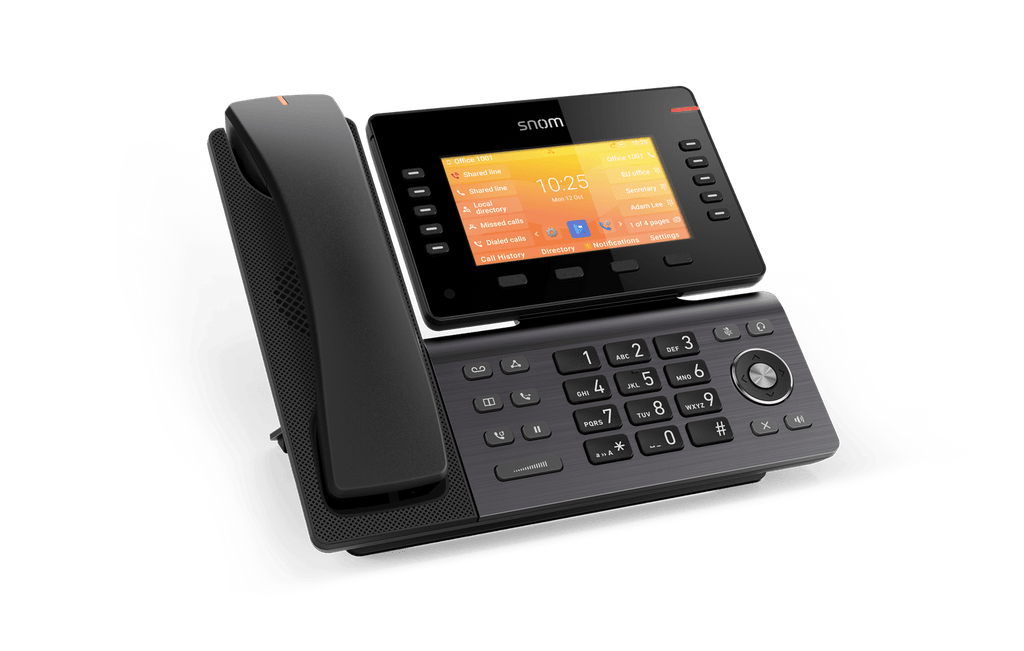

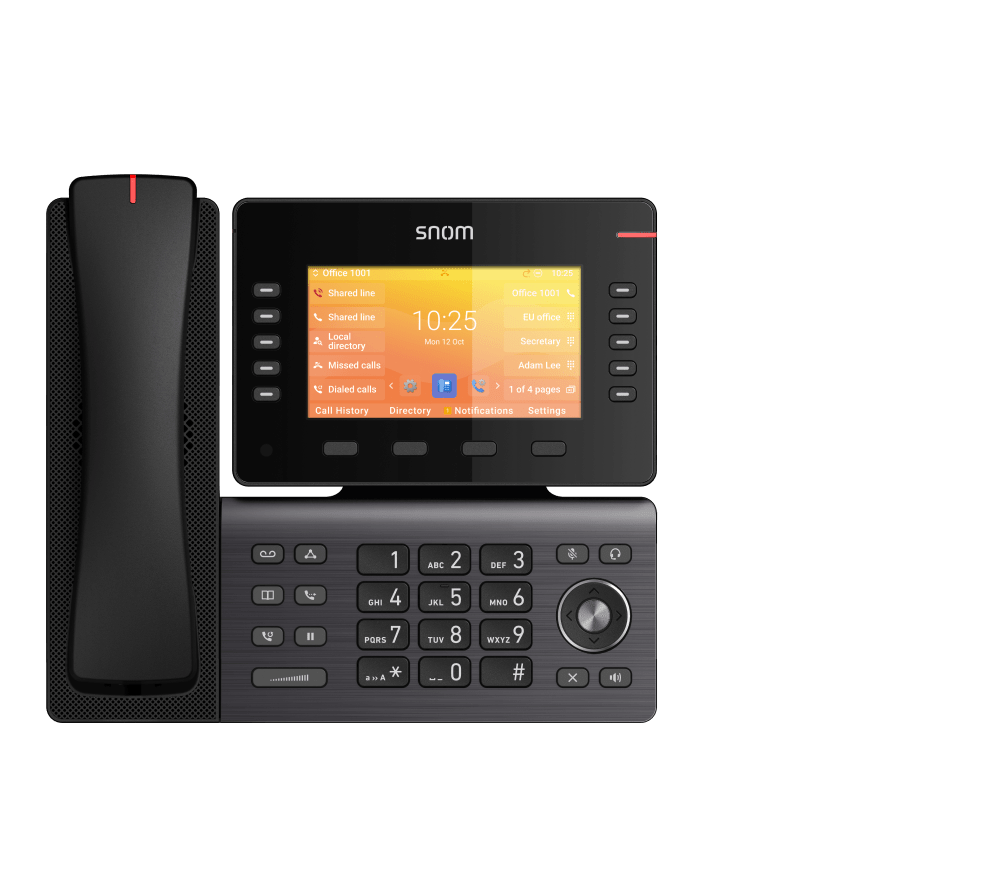

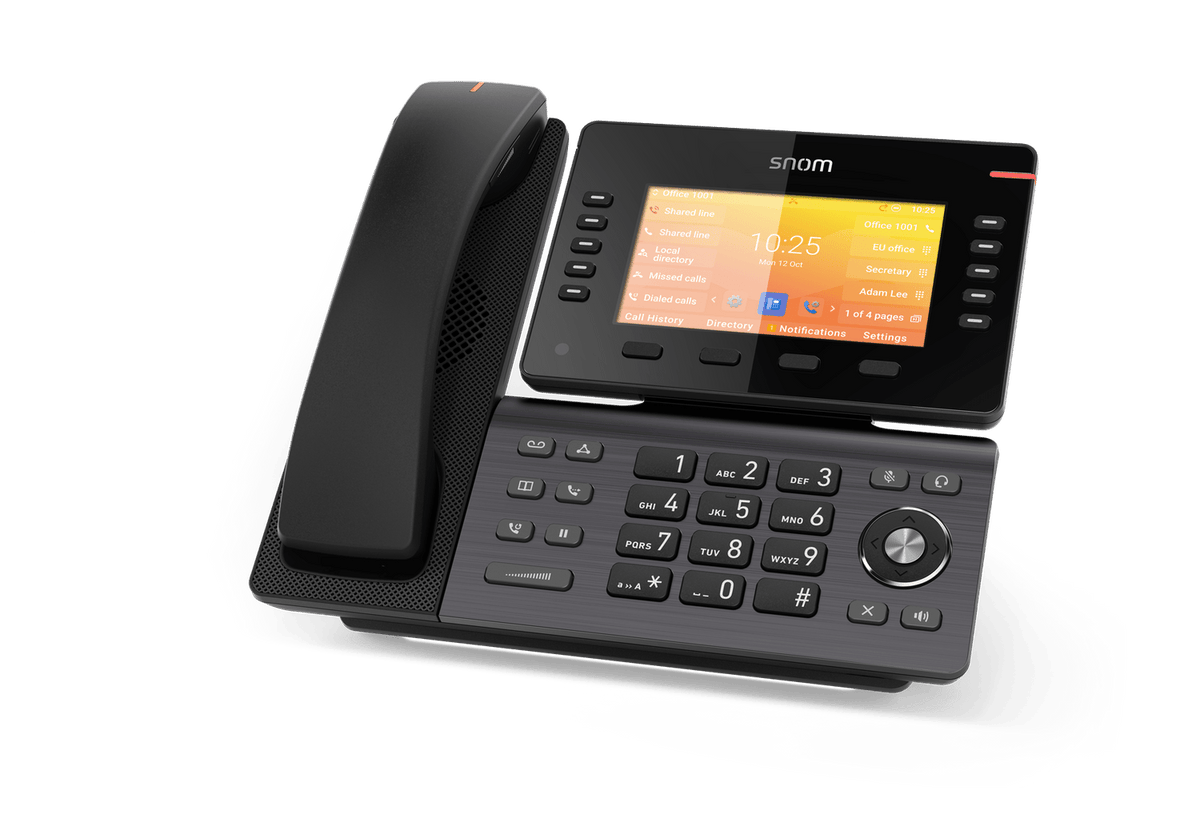

Need a desk phone you can walk away from? The Snom D892M is that phone. You get a 5" color SIP set on the desk and a D8M DECT handset in your hand. Wi-Fi and Bluetooth are built in. PoE Class 3 runs it. Twelve SIP accounts cover a busy user. Buy this when that person still takes calls while they leave the chair.
The Telecom Spot Take
Buy the D892M for the walker, not the sitter. The D8M handset charges on the cradle with no pins to clean, then you take the call up to 50 m indoors. The 5" screen stays on the desk for keys, names, and transfers. Want the same 5" set with no cordless handset? Get the D865. Want a bigger touch screen and the same DECT idea? Look at the D895M.
Key Features
- Phone plus cordless handset in one box: D892M on the desk. D8M in your hand. Sit down or walk off. Same call.
- Contactless charging: Drop the D8M on the cradle. No charging pins. Up to 12 hours wideband talk, 200 hours standby, 8 hours to fill the 850 mAh pack.
- 5" IPS you can tilt: 1280×720 color screen. Tilt it 40° so caller ID and key labels stay readable.
- 10 SmartLabel keys, 40 functions: Ten lit keys, four pages. Put BLF, speed dial, and park on the glass. Skip the paper strips.
- Wi-Fi 5 plus two Gigabit ports: Dual-band wireless when the drop is in the wrong place. NET + PC ports when you do run cable.
- Bluetooth 5.0 for a headset: Pair a wireless headset and leave the D8M on the cradle. RJ9 and EHS jacks are still there for a wired plan.
- 12 SIP accounts, 12 calls: Shared desk, hunt group, or two PBXs. Local 5-way (4+1) conference is on the phone.
- HD audio both ways: Full-duplex 5 W speakerphone on the desk. HAC handset on the walk. Noise cancellation on both.
- PoE Class 3: Plug into a Class 3 switch and you are done. No brick in the box. Need one? Add the 15W PSU or A5E injector.
- Grow the key field later: Two USB-A ports. Up to three D8C modules. Same ports record a call to USB.
- Locked-down IT stack: TLS 1.3, SRTP, 802.1X, OpenVPN, VLAN, IPv4/IPv6, SRAPS. Dual firmware partition on updates.
- Indoor desk or wall: Antibacterial housing. Wall kit sold separately. Keep it inside, 0 °C to 35 °C.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Snom D892M |
| Product type | SIP desk phone with DECT handset, Wi-Fi, and Bluetooth |
| Part number | 00004539 |
| EAN | 4260059583299 |
| UPC | 811819013293 |
| Color | Gunmetal black |
| Handset in the box | D8M (PN 00004557) |
| OS | Linux |
| Display | 5.0" IPS TFT, 1280 × 720, 110 × 62 mm, backlit, 40° tilt |
| LEDs on the desk phone | 15: call, MWI, 10 function-key, 3 audio-key |
| LED on the handset | 1 charging LED |
| Desk keys | 43 hard keys, including 10 SmartLabel keys (40 functions across 4 pages) |
| Handset keys | 5: volume, mute, hook, power |
| SIP accounts | 12 |
| Simultaneous calls | 12 |
| Conference | 5-way (4+1) local |
| Directory | LDAP plus local book up to 50,000 entries; CSV/XML import-export |
| Codecs | G.711, G.722, G.723.1, G.726, G.729, Opus |
| Desk audio | Full-duplex HD speakerphone, 5 W RMS, 2 dedicated mics, 100 Hz–14 kHz |
| Handset audio | HD, noise cancellation, 150 Hz–8 kHz, hearing-aid compatible |
| Ethernet | 2 × Gigabit RJ45 (NET / PC) |
| USB | 2 × USB 2.0 Type-A |
| Jacks | RJ9 corded handset, RJ9 headset, RJ12 EHS (corded handset and EHS sold separately) |
| Wi-Fi | Dual band, up to Wi-Fi 5 (802.11ac, 433 Mbps) |
| Bluetooth | 5.0, Class 2 |
| DECT band | 1,880–1,900 MHz (EU / UK / AU). Confirm region before a U.S. install. |
| Indoor DECT coverage | Up to 50 m |
| Handset battery | 850 mAh Li-ion, contactless charge; 12 h talk / 200 h standby / 8 h charge |
| Power | PoE IEEE 802.3af Class 3. Optional 15W PSU PN 00004715. |
| Expansion | Up to 3 × D8C modules on USB |
| Security | SIPS, SRTP, TLS 1.3, HTTPS, 802.1X, OpenVPN, VLAN |
| Management | PnP, SRAPS, HTTP/HTTPS/TFTP, DHCP options 43/60/66/67, TR-069 / TR-369 |
| Network | IPv4/IPv6, SIP, LDAP, LLDP-MED, ICE, STUN |
| Also on the phone | Keyboard lock, light sensor, USB call recording, dual firmware partition |
| Placement | Indoor desk. Wall kit D8xx WMK-M PN 00004544 sold separately. |
| Size / weight | 210 × 243 × 45 mm without stand; 193 × 243 × 165 mm with stand; 1.12 kg with stand |
| Environment | 0 °C to +35 °C operating; 5–95% humidity, non-condensing |
| Warranty | 3 years (D8xx series) |
| In the box | D892M, D8M handset, metal power pin, footstand, 1.5 m Ethernet cable, docs |
| Sold separately | 15W PSU (00004715), A5E injector (00004679), D8C module, wall kit (00004544), corded handset (00004561), EHS Advanced 2.0 (00002362), spare D8M (00004557) |
FAQ
Is the cordless handset in the box?
Yes. You get the D892M and the D8M handset (PN 00004557), plus stand, 1.5 m Ethernet cable, metal power pin, and docs. A coiled corded handset is extra (D8xx-WB-HS, PN 00004561).
Do I need a power supply?
Not on a Class 3 PoE switch. If your switch cannot feed Class 3, add the 15W PSU (PN 00004715) or the A5E injector (PN 00004679). Neither ships in the box.
How far can I walk?
Up to 50 m indoors on a clear path. Walls and racking cut that number. Treat 50 m as the ceiling, not a warehouse promise.
Can I add more buttons?
Yes. Two USB-A ports take up to three D8C modules. That is the move when 10 SmartLabel keys are not enough.
What do people forget to order?
Power adapter, wall kit, corded handset, EHS adapter, and D8C modules. PoE plus the included Ethernet cable will bring the phone up. Everything else is an add-on.
