Description

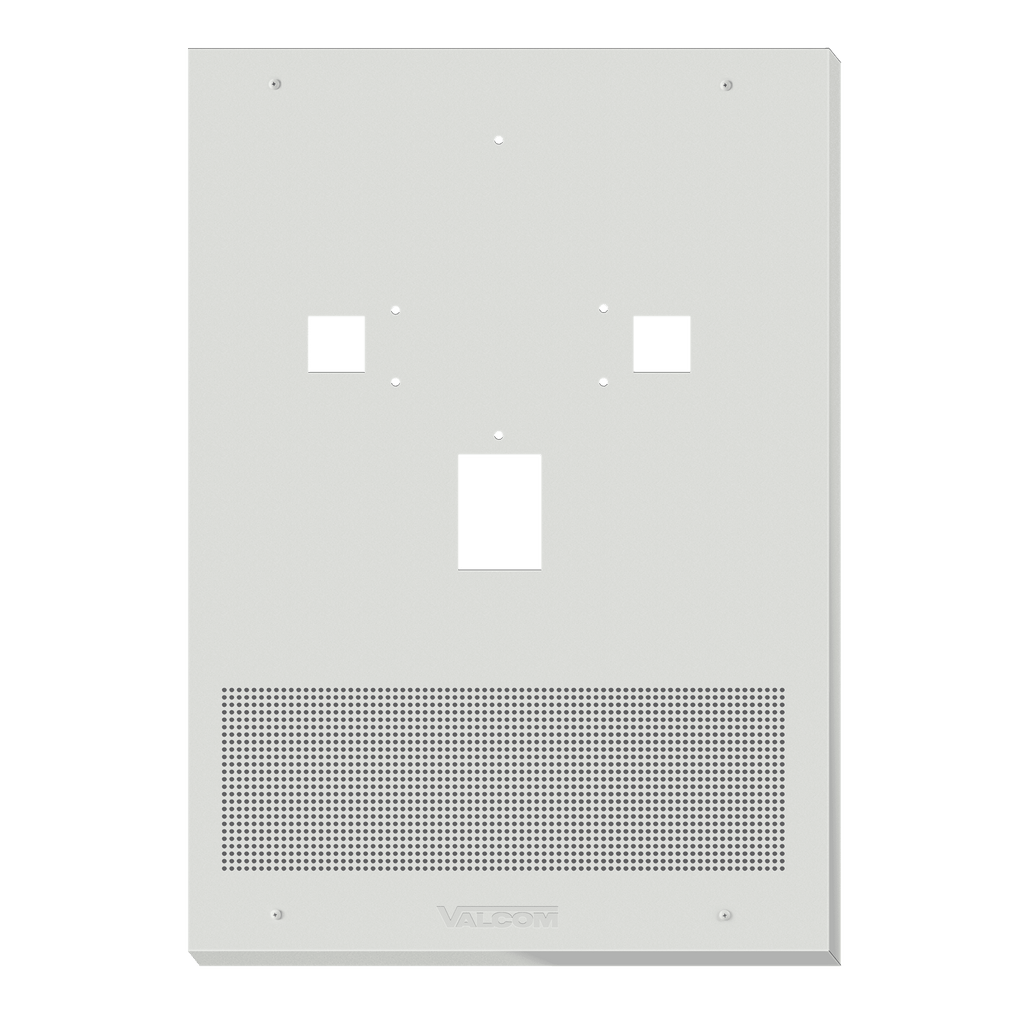

Mount a standard 8-inch paging speaker and a 12-inch analog clock in the same surface-mount enclosure with the Valcom V-CSB12S, a combination clock speaker baffle that eliminates the need for separate ceiling cuts and separate mounting hardware for each device.
The Telecom Spot Expert Review
Facilities that run both paging speakers and synchronized analog clocks face a repetitive installation challenge: two ceiling penetrations, two rough-in boxes, and two separate mounting procedures for devices that are nearly always installed in the same locations — hallways, classrooms, and common areas. The V-CSB12S solves that by combining both into a single surface-mount baffle that accepts a standard 8-inch speaker alongside a 12-inch analog clock face. One enclosure, one mounting location, one set of wires routed to a single box. This approach also produces a cleaner ceiling appearance than two separate units side by side. The surface mount design works on both drywall ceilings and drop tile grids where a recessed option is not available or practical.
Key Features
- Combination baffle mounts an 8-inch paging speaker and a 12-inch analog clock in one enclosure
- Surface mount design — works on drywall and drop tile ceilings
- Eliminates separate ceiling cuts and mounting hardware for each device
- Produces a cleaner ceiling appearance than two separate units
- Compatible with standard 8-inch Valcom ceiling speakers
Technical Specifications
| Model | V-CSB12S |
|---|---|
| Type | Combination Clock Speaker Baffle |
| Clock Size | 12 in. analog |
| Speaker Opening | 8 in. standard |
| Mount Type | Surface mount |
