Description

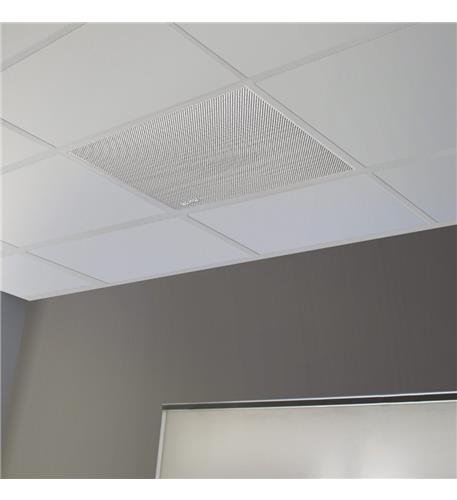

The Valcom VIP-422A is a full-duplex talkback IP speaker that drops into a standard 2x2 suspended ceiling grid. One PoE Ethernet cable handles power and data. It delivers high-quality voice paging, two-way handsfree conversation, and emergency notifications over your existing IP network — with no visible wiring, no ceiling modifications, and a UL-listed fire-rated integral backbox already built in.
The Telecom Spot Expert Review
The 2x2 lay-in talkback speaker is the most practical IP intercom solution for standard office and school ceiling builds. No separate intercom panel, no specialty cabling — it installs exactly like a ceiling tile and connects to your IP network at the nearest switch port. Full-duplex talkback means conversations flow naturally rather than requiring a push-to-talk workflow. The line-level AUX output supports up to 40 additional Valcom self-amplified speakers for larger coverage zones from a single network endpoint.
Key Features
- Full-duplex talkback IP speaker — 2x2 lay-in ceiling format
- Drops into standard 2 ft. x 2 ft. suspended ceiling grid — no cutting required
- PoE powered (802.3af) — single Ethernet cable for power and data
- 8-inch speaker — audio output exceeds 100 dB at 4 ft.
- Frequency response: 80 Hz to 15 kHz
- Line-level output supports up to 40 additional Valcom self-amplified speakers
- Integral backbox — UL listed, meets ASTM E84 flame and smoke standards
- Steel housing with white baked-on acrylic enamel finish
- Dimensions: 23.75 in. L x 23.75 in. W x 3.75 in. D | Weight: 5.5 lbs
Technical Specifications
| Model | VIP-422A |
|---|---|
| Format | 2 ft. x 2 ft. lay-in ceiling speaker |
| Communication | Full-duplex talkback (two-way) |
| Speaker Size | 8 in. |
| Power | PoE 802.3af |
| Audio Output | >100 dB at 4 ft. |
| Frequency Response | 80 Hz to 15 kHz |
| Line Output | Supports up to 40 Valcom self-amplified speakers |
| Backbox | Integral — UL listed, ASTM E84 rated |
| Finish | White baked-on acrylic enamel |
| Dimensions | 23.75 in. L x 23.75 in. W x 3.75 in. D |
| Weight | 5.5 lbs |
| Brand | Valcom |
| Supply Voltage | 48V DC (PoE 802.3af) |
