Description

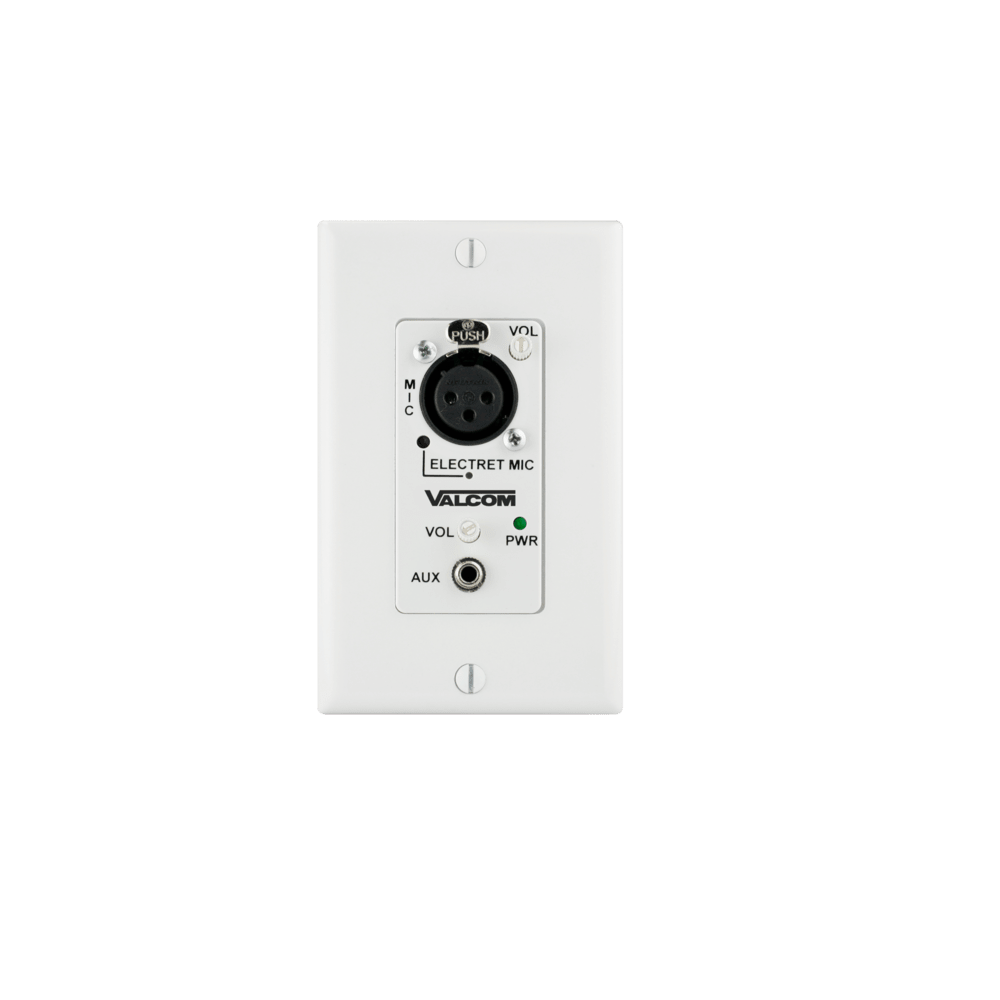

Expand a Valcom V-9983 in-wall paging control system to additional announcement locations with the V-9984-W, a white single-gang remote input module with one balanced XLR microphone input with phantom power, one stereo auxiliary input, and independent volume controls that connects to the main module via standard two-pair cable.
The Telecom Spot Expert Review
The V-9984-W is the remote input module for the V-9983 in-wall main control module — each V-9984-W adds a balanced microphone input and an auxiliary input at a separate wall location, allowing the paging control system to accept announcements from up to four physical locations throughout the facility. This is the correct configuration for facilities with multiple announcement points — a front desk, a secondary reception area, a manager's station, and a backup announcement position can all have their own microphone and music input without routing separate microphone cables back to a central rack. The XLR connection with release button provides a secure, professional-grade microphone interface that won't accidentally disconnect during an announcement. Switch-controlled phantom power enables condenser microphones that require it, extending the microphone choices beyond dynamic-only. The stereo mini jack aux input accepts MP3 players, CD/DVD players, and computer audio sources for background music or pre-recorded announcement playback. Two-pair 24AWG station cable connects each V-9984-W back to the V-9983-W main module.
Key Features
- Remote input module for V-9983 in-wall paging control — adds one mic input and one aux input per module
- XLR balanced mic connection with release button and switch-controlled phantom power
- Stereo mini jack aux input for MP3, CD/DVD, and computer audio sources
- Independent volume controls for mic and aux inputs
- Connects to main module via two-pair 24AWG station cable; mounts in single-gang electrical box
Technical Specifications
| Model | V-9984-W |
|---|---|
| Type | Remote Input Module |
| Compatible Main Module | Valcom V-9983-W |
| Mic Input | 1 balanced XLR (with release button) |
| Phantom Power | Switch-controlled |
| Aux Input | 1 stereo mini jack |
| Volume Controls | Per input |
| Connection to Main Module | 2-pair 24AWG station cable, screw terminals |
| Back Box | Standard single-gang electrical box |
| Faceplate | White decorator style |
