Description

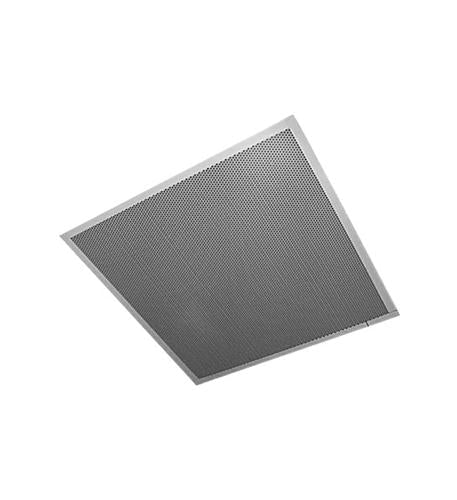

Replace a standard 2x2 ceiling tile with a high-fidelity Signature Series speaker using the Valcom V-1422, a one-way 2x2 lay-in ceiling speaker with a 6-watt built-in amplifier, integral 3-hour-rated backbox, front-accessible volume control, and a trim bar that also fits half of a 2x4 tile opening.
The Telecom Spot Expert Review
The V-1422 is Valcom's Signature Series 2x2 speaker — the upgrade path from the standard V-9022A when the application requires better frequency response for music reproduction and higher-fidelity voice intelligibility. The 6-watt built-in amplifier provides more headroom than standard one-watt ceiling speakers, which translates directly to cleaner audio at the volume levels needed in moderate-noise environments. Signature Series designation reflects the improved driver quality and frequency response optimized for music as much as for voice — making this the correct selection for conference centers, hotel lobbies, executive floors, retail environments with background music programs, and any location where audio quality is part of the installation specification. The integral backbox meets or exceeds the ASTM E84 flame and smoke test with a 3-hour burn rating, satisfying the code requirements for plenum-space installations in commercial construction. The included trim bar allows the assembly to cover half of a 2x4 tile opening, adding flexibility beyond the standard 2x2 format.
Key Features
- Signature Series 2x2 lay-in ceiling speaker with 6-watt built-in amplifier for high-fidelity voice and music
- Fits 2x2 ceiling tile opening or half of a 2x4 opening — trim bar included
- Integral backbox meets ASTM E84 flame and smoke test with 3-hour burn rating
- Front-accessible volume control for below-ceiling level adjustment
- White acrylic baked enamel finish; no tile cutting required
Technical Specifications
| Model | V-1422 |
|---|---|
| Type | Signature Series 2x2 Lay-In Ceiling Speaker |
| Speaker Line Voltage | 25V / 70V |
| Amplifier | 6W built-in |
| Ceiling Format | 2 ft. × 2 ft. lay-in (or half of 2 ft. × 4 ft.) |
| Backbox | Integral, ASTM E84 / 3-hour burn rating |
| Volume Control | Front-accessible |
| Finish | White acrylic baked enamel |
| Included Hardware | Trim bar |
| Operating Environment | Indoor suspended ceiling |
