Description

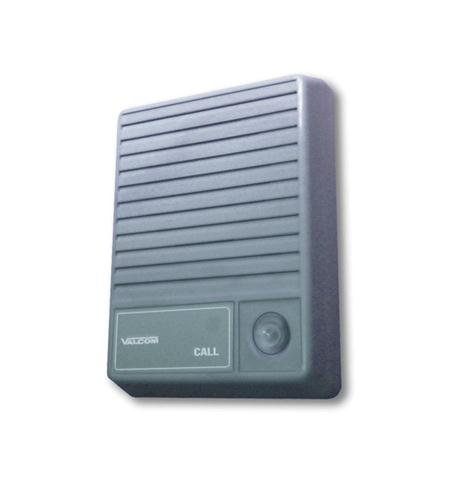

Identify entry points with a weather-resistant talkback doorplate speaker using the Valcom V-1074, a gray surface-mount unit with a Braille-marked CALL button that provides two-way communication between visitors and staff at exterior doors and entry vestibules.
The Telecom Spot Expert Review
The V-1074 is the surface-mount counterpart to the flush-mount V-1072 doorplate series — same functional purpose, different mounting profile. Where flush mounting requires a back-box rough-in inside the wall, the V-1074 mounts directly onto an existing flat surface without cutting into the wall — a significant advantage in retrofit installations where opening the wall is not practical or where existing electrical infrastructure can't easily accommodate a back-box. Gray plastic housing is appropriate for standard commercial entry locations and outdoor-rated installations. The Braille-marked CALL button satisfies ADA tactile requirements for push-button controls at accessible entry points. Weather resistance allows it to handle the rain exposure and temperature cycling typical of covered exterior entry locations. The compact 5.5 in. H × 4 in. W × 1.1 in. D profile stays unobtrusive at the doorway level.
Key Features
- Surface-mount talkback doorplate speaker — no wall back-box required
- Braille-marked CALL button for ADA tactile compliance
- Weather-resistant for exterior and entry vestibule installations
- Gray plastic housing, compact profile
- Two-way talkback for visitor-to-staff communication
Technical Specifications
| Model | V-1074 |
|---|---|
| Type | Talkback Doorplate Speaker |
| Mount Type | Surface mount |
| Dimensions | 5.5 in. H × 4 in. W × 1.1 in. D |
| Housing | Gray plastic |
| Call Button | Included (Braille marked) |
| Operation | Two-way talkback |
| Operating Environment | Indoor / outdoor, weather-resistant |
