Description

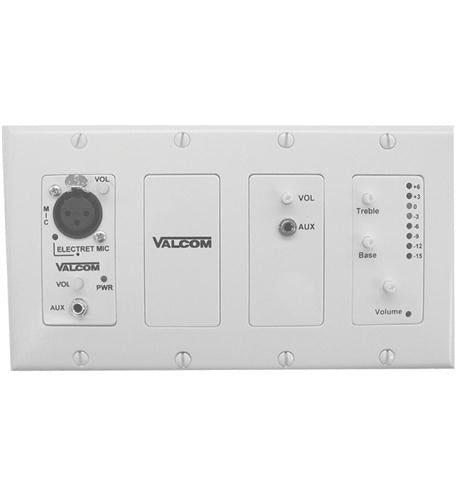

Build a flexible, multi-input paging mixing station directly into the wall with the V-9985W, an in-wall modular mixer that handles a balanced microphone, two auxiliary audio sources, and a building page override input — all behind a standard 4-gang decorator faceplate.
The Telecom Spot Expert Review
The V-9985W is purpose-built for installations where the paging control point needs to be at the wall rather than in a rack. One balanced mic input, two auxiliary inputs, and a building page override with priority switching give you the most common paging mixing scenarios without a separate mixer. Up to three additional Remote Modules (V-9984) can be chained in, each adding another balanced mic and auxiliary input channel — useful in multi-zone or multi-operator school and campus deployments. Mounts in a standard 4-gang deep electrical box.
Key Features
- 1 balanced microphone input for high-quality paging announcements
- 2 auxiliary inputs for background music and secondary audio sources
- Building page input with automatic override priority switching
- Expandable — up to 3 V-9984 Remote Modules can be added
- Each V-9984 Remote Module adds 1 balanced mic and 1 auxiliary input
- Mounts in a standard 4-gang deep electrical box
- Supplied with 4-gang white decorator-style faceplate
- Two-pair structured cable wiring
Technical Specifications
| Model | V-9985W |
|---|---|
| Mic Input | 1 Balanced Microphone |
| Aux Inputs | 2 High-Impedance Auxiliary |
| Page Input | Building Page with Override Priority |
| Expansion | Up to 3 x V-9984 Remote Modules |
| Electrical Box | 4-Gang Deep |
| Faceplate | 4-Gang White Decorator (Included) |
| Wiring | Two-Pair Structured Cable |
