Description

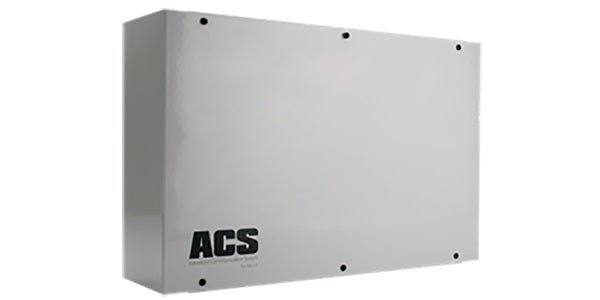

The Valcom V-ACS-X72-45 is an expansion module for the V-ACS45 Advanced Communication System that adds 24 talkback stations to bring the total system capacity to 72 stations on a 45-ohm speaker load. All speaker and I/O terminations are made inside the ACS enclosure. The module provides dual FXS access ports, dual auxiliary audio inputs, 3 programmable switch inputs, 4 programmable relays, 24 flexible non-blocking audio paging groups, 2 music groups, 8 bell schedules, NTP time updates, and integrated 59th-minute and data-based clock correction. Windows-based programming and administrative software handles configuration without specialized field tools.
The Telecom Spot Expert Review
The V-ACS-X72-45 is the second expansion step for a V-ACS45 system that has already added a V-ACS-X48-45, or the direct path to the maximum 72-station capacity for facilities that know they need it from day one. At 72 stations, the ACS platform covers large school campuses, multi-wing healthcare facilities, and mid-size manufacturing operations where talkback intercom at every work area is required. The two dedicated music groups are an addition over the 48-station module, allowing different background music sources to play in separate areas of the facility simultaneously while the 24 audio paging groups remain available for zone-selective announcements independently of the music zones.
Key Features
- Expands V-ACS45 to 72 talkback stations total
- 45-ohm speaker load (Valcom ACS system)
- Dual FXS access ports
- Dual auxiliary audio inputs
- 3 programmable switch inputs, 4 programmable relays
- 24 flexible non-blocking audio paging groups
- 2 flexible non-blocking music groups
- 8 bell schedules
- NTP time updates and data-based clock correction
- Up to 1 hour of custom WAV file storage
- All terminations inside ACS enclosure
- SIP accessible with additional equipment
- Windows-based programming and administrative software
Technical Specifications
| Speaker Load | 45 Ohm (Valcom ACS System) |
| Stations Added | 24 (brings V-ACS45 total to 72) |
| Telephone Ports | 2 FXS |
| Auxiliary Audio Inputs | 2 |
| Switch Inputs | 3 programmable |
| Relay Outputs | 4 programmable |
| Audio Paging Groups | 24 flexible non-blocking |
| Music Groups | 2 flexible non-blocking |
| Bell Schedules | 8 |
| Audio Storage | Up to 1 hour WAV |
| Time Sync | NTP + 59th-minute and data-based clock correction |
