Description
Clear, Flexible IP Paging for Any Commercial Indoor Space

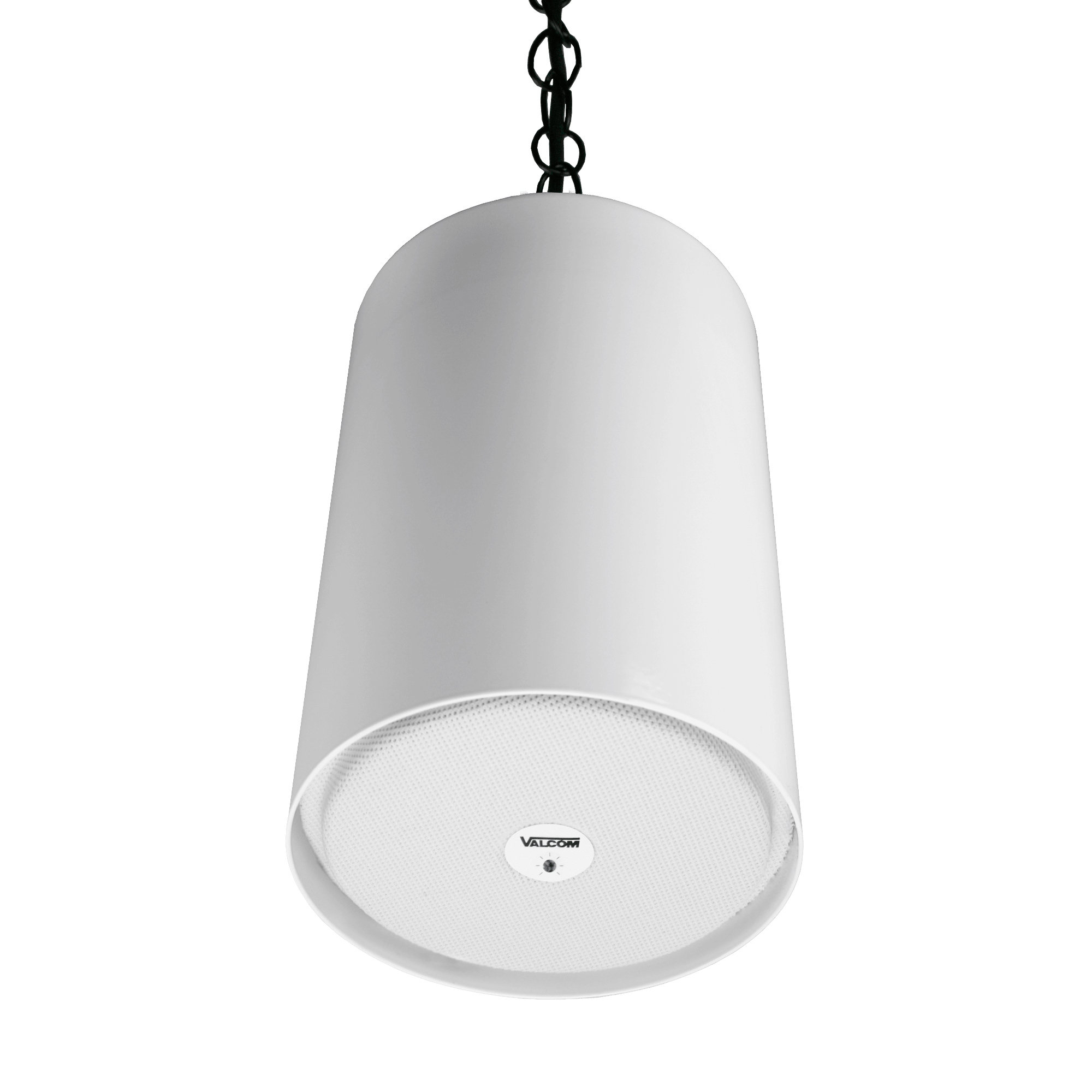

The Valcom VIP-415B-WW is a ceiling-hung IP pendant speaker designed for reliable voice paging, emergency alerts, and talkback communication in commercial buildings. It runs entirely on Power over Ethernet — no separate power supply or transformer needed — and supports SIP and Multicast simultaneously, making it compatible with virtually any modern IP telephony or paging platform. A high-efficiency Class-D amplifier drives the 5-inch cone driver for clear, intelligible audio in lobbies, warehouses, schools, and healthcare corridors. One-way paging and talkback intercom modes are both programmable through the Valcom VIP-102B setup tool, giving facility and IT managers the flexibility to match each unit to the communication workflow the space demands.
The Telecom Spot Take
The VIP-415B-WW hits the sweet spot for facilities that need standards-based IP audio without the cost and complexity of analog distribution. Concurrent SIP and Multicast support means it integrates directly with most modern phone systems — no proprietary middleware required. For IT and AV managers already standardized on PoE switching, deployment is as simple as running a single Cat5e/6 cable to each ceiling location, hanging the pendant chain, and letting the switch deliver both power and audio over the same port. The white-on-white finish blends cleanly into drop ceilings and drywall, and the included 14-foot Ethernet cable means you’re ready to go from the box. Talkback mode adds genuine two-way value in distribution centers, healthcare corridors, and reception areas where call confirmation matters. If the standard drop chain isn’t long enough, the optional V-1093-BK 6-foot extension chain covers most ceiling heights.
Key Features
- Concurrent SIP & Multicast: Operates on SIP-enabled phone systems and Valcom M Cast page groups simultaneously — no separate decoder box required
- PoE IEEE 802.3af (Class 3): Draws power directly from your existing PoE switch, eliminating separate power supplies and transformers
- One-Way/Talkback Programmable: Field-configurable for simplex paging or full talkback intercom mode via the Valcom VIP-102B IP Solutions Setup Tool
- High-Efficiency Class-D Amplifier: Efficient digital amplification delivers consistent audio output with low heat generation
- 5-Inch Cone Driver: Purpose-sized for voice intelligibility in commercial paging environments
- White with White Grille: Clean, unobtrusive appearance for offices, schools, medical facilities, and retail spaces
- Pendant Ceiling Mount: Hangs from ceiling via included chain; optional 6-foot extension chain (V-1093-BK) sold separately
- 14-Foot Ethernet Cable Included: Ready for immediate deployment directly out of the box
- Indoor Use: Designed for climate-controlled commercial interiors
Technical Specifications
| Specification | Value |
|---|---|
| Model | VIP-415B-WW |
| Product Type | IP Pendant Speaker |
| Speaker Driver | 5-inch cone |
| Amplifier Type | High-Efficiency Class-D |
| Power Input | PoE IEEE 802.3af (Class 3); 24VDC or 48VDC |
| Max PoE Power Consumption | Up to 15.4W (PoE Class 3) |
| Network Port | 1× 10/100Base-T RJ45 PoE |
| Protocol Support | SIP, Multicast (concurrent) |
| Compatible Systems | PBX FXO (w/VIP-811), POTS (w/VIP-811), PBX FXS (w/VIP-821), Valcom M Cast, SIP-enabled telephone systems |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0% to 85%, non-precipitating |
| Operating Environment | Indoor only |
| Color/Finish | White body, white grille |
| Dimensions | 5.80" diameter × 8.80" H (14.73 cm dia. × 22.35 cm H) |
| Weight | 3.20 lbs (1.45 kg) |
| Included Accessories | Chain, 14-foot Ethernet cable |
| Optional Accessory | V-1093-BK 6-foot extension chain (sold separately) |
| Certifications | FCC Class A |
Frequently Asked Questions
Does the VIP-415B-WW support two-way calling?
Yes. The speaker is programmable for either one-way (simplex) paging or talkback intercom mode. Note that talkback mode is not compatible with Valcom Call Switches.
What power source does the VIP-415B-WW require?
It is powered entirely via Power over Ethernet (PoE IEEE 802.3af, Class 3). No external power supply is needed — your PoE-capable network switch provides power and data over the same Cat5e/6 cable.
Can this speaker work with my existing SIP phone system?
Yes. The VIP-415B-WW supports concurrent SIP and Multicast, so it integrates natively with SIP-enabled PBX systems and also participates in Valcom M Cast page groups at the same time.
Is the VIP-415B-WW suitable for outdoor use?
No. The VIP-415B-WW is rated for indoor use only, within an operating temperature range of 0°C to 40°C (32°F to 104°F) and humidity up to 85% non-precipitating.
How is the VIP-415B-WW configured?
Configuration is handled through the Valcom VIP-102B IP Solutions Setup Tool, which allows IT managers to assign IP addresses, select operating mode (one-way vs. talkback), and define page groups without requiring a site visit to each speaker location.
