Description

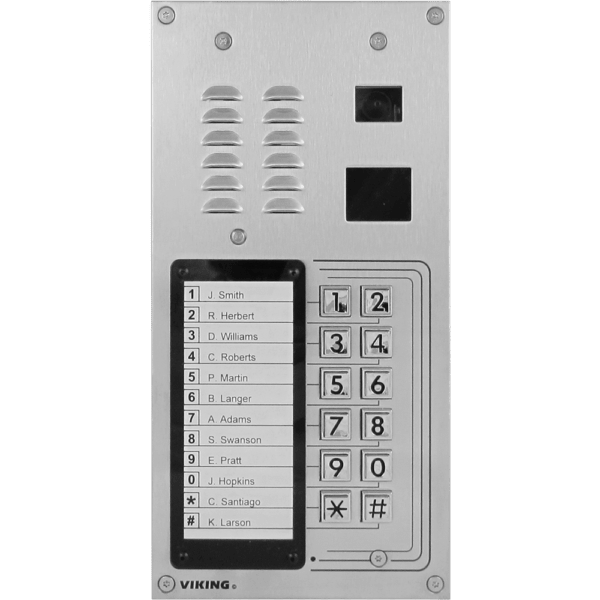

Picture this: a visitor presses one button next to a tenant’s name, the resident sees them clearly on video, and the door unlocks with a simple touch-tone command. No codes to remember, no missed deliveries, and no worries about rain or rough handling. The Viking K-1275-EWP is built exactly for busy apartment buildings, small professional offices, and gated communities that need reliable, secure visitor access every single day.
The Telecom Spot Expert Review
What we love most is how it balances tough construction with simple operation. Tenants just press the button beside their printed name—no confusing codes or apps required. The built-in color video camera gives crystal-clear visitor confirmation, while the 125 kHz proximity reader lets residents breeze through with a quick card tap. The Enhanced Weather Protection (EWP) package is a game-changer for outdoor or semi-exposed locations; it laughs at Texas downpours, humidity, and temperature swings.
Key Features
- 12-button directory dialer – Each tenant gets their own clearly labeled button with space for primary and backup numbers (up to 22 digits each)
- High-resolution analog color video camera – Wide viewing angle with easy tilt/swivel adjustment for perfect visitor shots
- 125 kHz proximity card reader – Fast, reliable resident access with audible and visual confirmation
- Handsfree two-way communication – Crystal-clear speakerphone—no handset to grab
- Built-in door strike relay – Remote door release with one touch-tone command • 50 programmable keyless entry codes – Great for guests, delivery drivers, or maintenance crews
- Vandal-resistant construction – 14-gauge 316 stainless steel faceplate, heavy-duty metal keypad, security Torx screws
- Enhanced Weather Protection (EWP) – IP66 rated, sealed keypad, self-draining mic, marine-grade stainless steel—built for rain, snow, or 100 % humidity
- Postal lock input – Ready for USPS or delivery access
Technical Specifications
- Dimensions: 5″ x 10″ x 2.5″ (127 mm x 254 mm x 63.5 mm)
- Shipping Weight: 4.8 lbs (2.2 kg)
- Operating Temperature: -30 °F to 150 °F (-34 °C to 65 °C) with up to 100 % humidity
- Power Requirements: Phone: 12–24 V AC or DC; Camera: 6–22 V DC
- Door Strike Relay Rating: 5 A @ 30 VDC / 250 VAC maximum
- Proximity Reader: 125 kHz, 26-bit Wiegand format
- Camera: Analog color NTSC, wide viewing angle, tilt/swivel adjustable
- Connections: 19 gel-filled butt connectors (3M Scotchlok UR2)
- Certifications: FCC Part 68, FCC Part 15, IP66 (EWP)
