Description

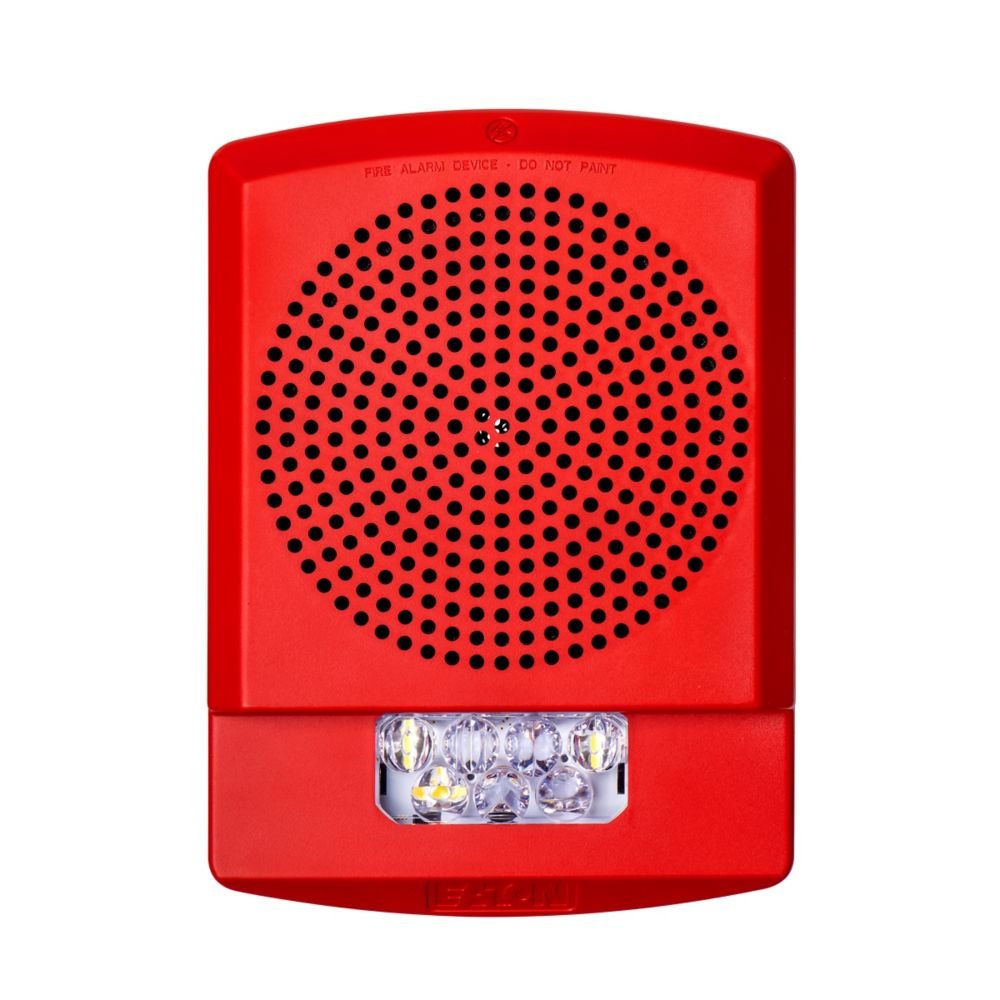

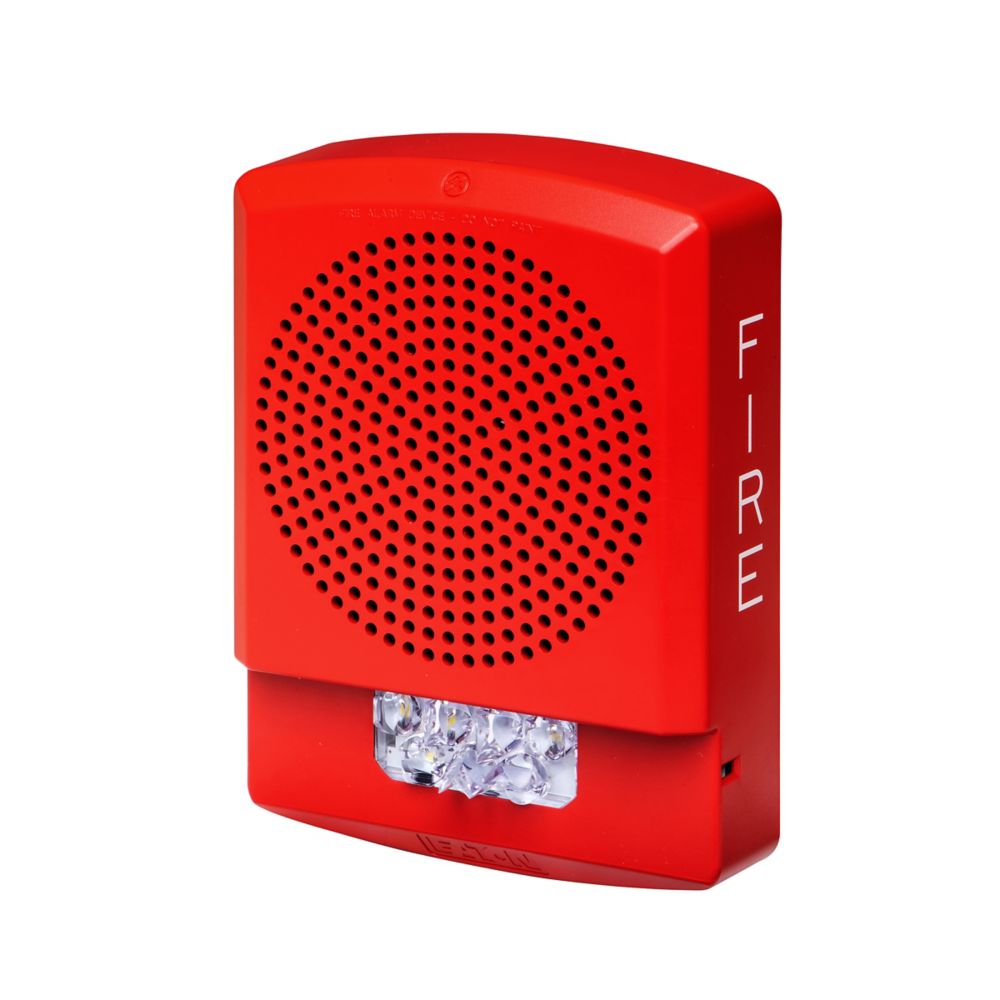

The Wheelock Eluxa ELMTSR is a low-profile indoor multitone LED horn strobe designed for cost-effective fire alarm notification on conventional 24VDC NAC circuits. High-efficiency LED technology delivers industry-leading low current draw across all six candela settings, reducing power supply counts and minimizing wire run costs. Eight field-selectable alarm tones and a slide-switch candela selector allow full configuration at the device — no separate programmer needed. Clean aesthetics with no visible mounting screws and a snap-on grille cover suit commercial and institutional environments.
Key Features
- 8 field-selectable alarm tones: Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo
- 6 field-selectable candela settings: 15, 30, 75, 110, 135, 185 cd
- High-efficiency LED strobe — one of the lowest current draws in its class
- Selectable HI and STD dBA output levels
- Pre-wire, pre-test mounting plate with capture hinge for fast installation
- Snap-on grille cover with no visible mounting screws
- Indoor wall mount
- UL 1971, UL 464, and cUL listed
- Red housing, clear lens, FIRE lettering
Specifications
| Specification | Value |
|---|---|
| Part Number | ELMTSR |
| Voltage | 16–33 VDC (24 VDC nominal) |
| Alarm Tones | 8 selectable (Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo) |
| Candela Settings | 15, 30, 75, 110, 135, 185 cd (field selectable) |
| Sound Output | Selectable HI / STD dBA |
| Strobe Technology | LED (advanced power-saving) |
| Mounting | Indoor wall mount; pre-wire mounting plate included |
| Color | Red, clear lens, FIRE lettering |
| Certifications | UL 1971, UL 464, cUL |
| Application | Indoor |
| Manufacturer | Eaton (Wheelock) |
