Description

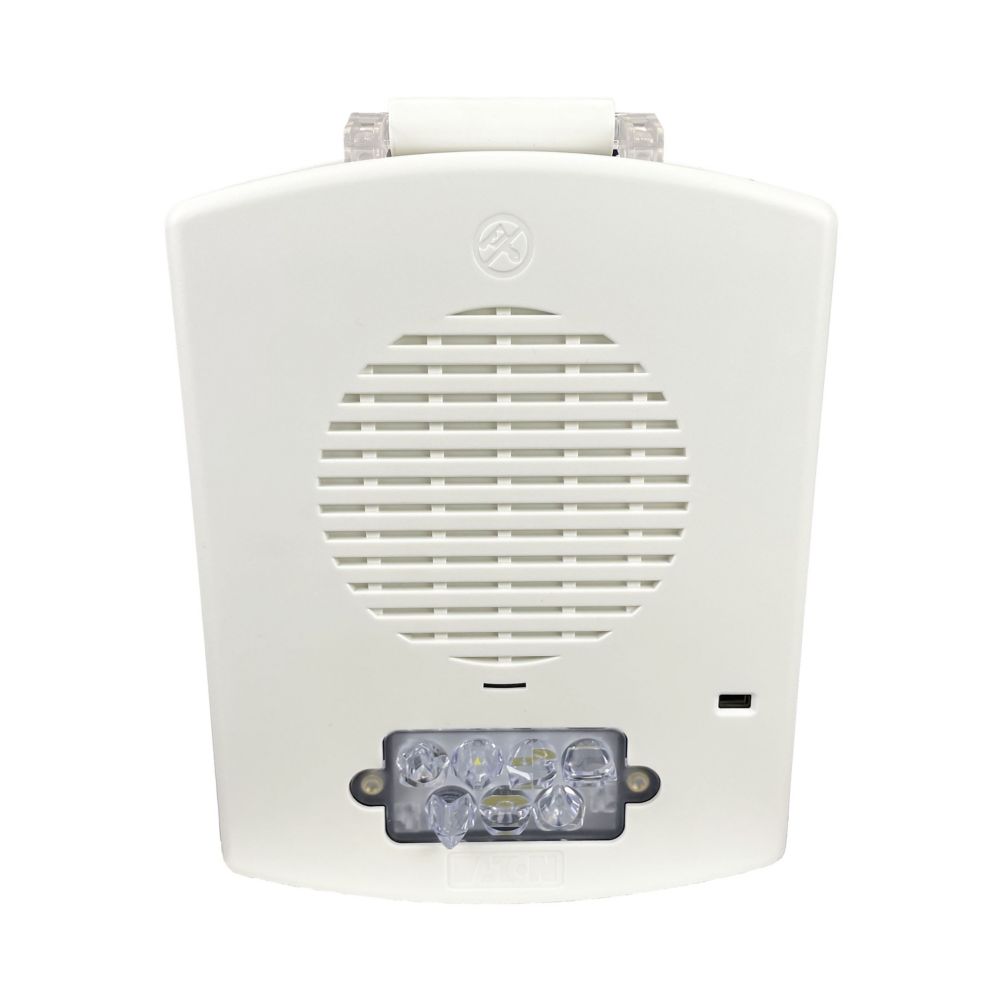

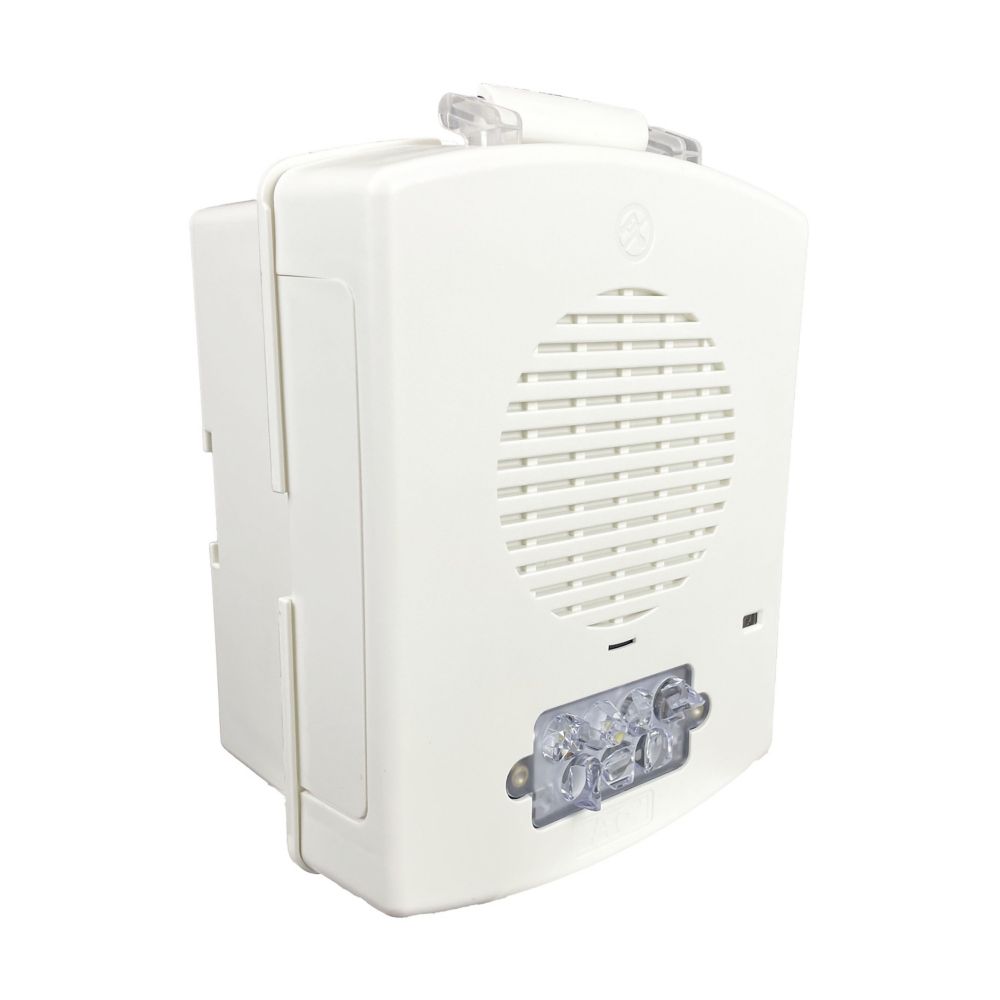

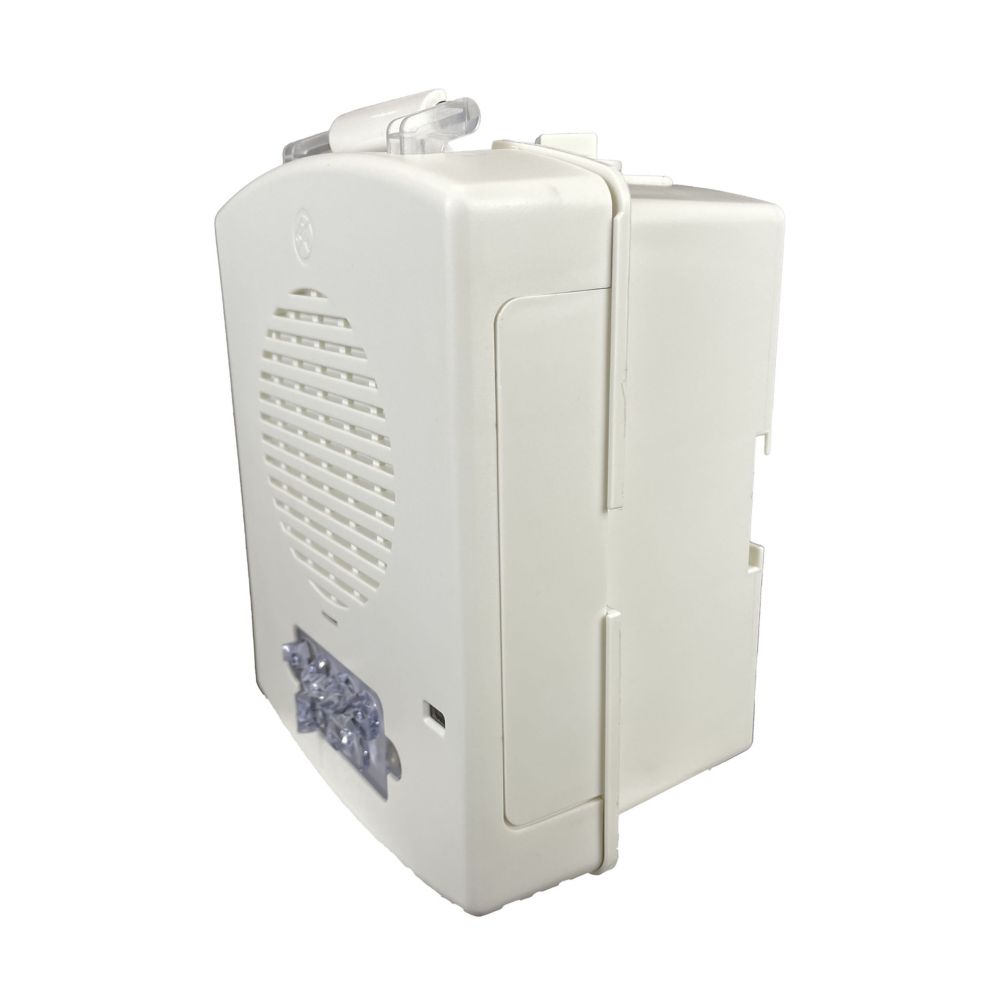

The Wheelock Eluxa EL4XMTST-FW is a weatherproof outdoor multitone LED horn strobe engineered for demanding fire alarm applications. Its NEMA 4X / IP66-rated enclosure — paired with the included matching white EL4XBB-W surface backbox — resists corrosion, ice formation, and water intrusion, making it equally at home on an exterior wall or in a harsh industrial environment. Eight field-selectable alarm tones and six candela settings from 15 to 185 cd let installers configure audible and visual output to meet any code requirement without additional hardware.
The 4-wire design keeps horn and strobe circuits independent, preserving full compatibility with conventional 24VDC NAC panels. Sleek, low-profile styling with no visible mounting screws completes the install cleanly.
Key Features
- NEMA 4X / IP66 weatherproof enclosure — resistant to corrosion, ice, and high-pressure water
- Includes EL4XBB-W white NEMA 4X surface backbox
- 8 field-selectable alarm tones: Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo
- 88 dBA (HI) / 83 dBA (STD) sound output at 10 ft, 24VDC
- 6 field-selectable candela settings: 15, 30, 75, 110, 150, 185 cd
- LED strobe meets NFPA 72 2016 20 ms light pulse requirement
- 4-wire connection — independent horn and strobe circuits
- Wall or ceiling mountable
- Rated –40°F to 150°F (–40°C to 66°C)
- UL 1971, UL 464, and cUL listed
- White housing, clear lens, FIRE lettering
Specifications
| Specification | Value |
|---|---|
| Part Number | EL4XMTST-FW |
| Voltage | 16–33 VDC / FWR (24 VDC nominal) |
| Current Draw (Horn) | 108 mA (HI) / 44 mA (STD) @ 24 VDC |
| Sound Output @ 10 ft | 88 dBA (HI) / 83 dBA (STD) @ 24 VDC |
| Alarm Tones | 8 selectable (Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo) |
| Candela Settings | 15, 30, 75, 110, 150, 185 cd (field selectable) |
| Environmental Rating | NEMA 4X / IP66 (with included backbox) |
| Operating Temperature | –40°F to 150°F (–40°C to 66°C) |
| Wiring | 4-wire (independent horn and strobe circuits) |
| Mounting | Wall or ceiling |
| Color | White, clear lens, FIRE lettering |
| Includes | EL4XBB-W NEMA 4X surface backbox |
| Certifications | UL 1971, UL 464, cUL; NFPA 72 2016 compliant |
| Manufacturer | Eaton (Wheelock) |
