Description

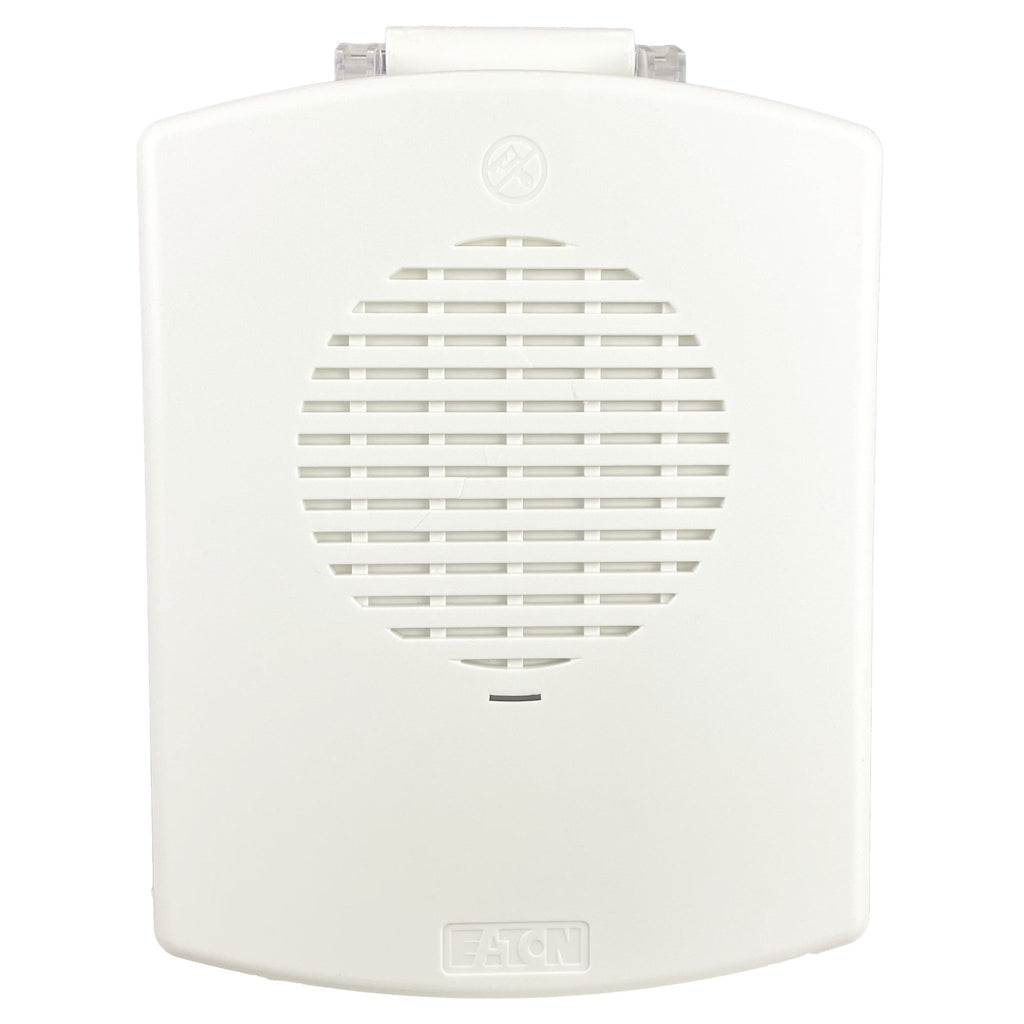

The Wheelock Eluxa EL3RHN-NW is a weatherproof outdoor fire alarm horn built for reliable performance in demanding environments. Its NEMA 3R / IP54-rated enclosure protects against rain, sleet, and ice while delivering a loud, penetrating 88 dBA alert at 10 ft (HI setting). Engineered for 24VDC fire alarm notification circuits, the EL3RHN-NW installs quickly on any wall or ceiling surface using the EL3RMP mounting plate — no separate back box required. UL 464 and cUL listed for compatibility with any standard FACP.
Key Features
- NEMA 3R / IP54 weatherproof enclosure rated for outdoor and wet-location use
- 88 dBA (HI) / 83 dBA (STD) sound output measured at 10 ft on 24VDC
- Operates on 16–33 VDC (24V nominal); also supports 12VDC systems
- Wall or ceiling mountable via EL3RMP mounting plate — no back box needed
- Wide operating temperature: –40°F to 150°F (–40°C to 66°C) at 95% RH
- UL 464 and cUL listed; compatible with all standard fire alarm control panels
- White, UV-stabilized textured housing
Specifications
| Specification | Value |
|---|---|
| Part Number | EL3RHN-NW |
| Voltage | 16–33 VDC (24 VDC nominal); 12 VDC compatible |
| Current Draw | 52 mA (HI) / 38 mA (LOW) @ 24 VDC |
| Sound Output @ 10 ft | 88 dBA (HI) / 83 dBA (STD) @ 24 VDC |
| Environmental Rating | NEMA 3R / IP54 |
| Operating Temperature | –40°F to 150°F (–40°C to 66°C) at 95% RH |
| Mounting | Wall or ceiling; EL3RMP mounting plate included |
| Color | White |
| Application | Indoor / Outdoor |
| Certifications | UL 464, cUL |
| Manufacturer | Eaton (Wheelock) |
