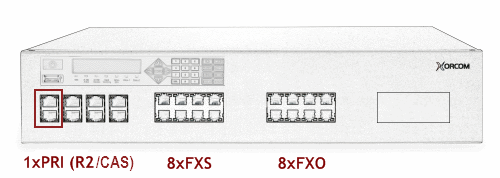

Xorcom XE2072 Asterisk PBX: 1 E1/T1 + 8 FXS + 8 FXO

XE2000 is a stand-alone, pre-configured, out-of-the-box
Asterisk IP PBX optimized for businesses with high call volumes and
/ or additional communications applications

The XE2000 is an "BACKGROUND-COLOR: #ffffff">Elastix Asterisk IP PBX system
supporting various combinations of telephony ports. The stand-alone
XE2000 base unit may be equipped with up to 32 analog FXS/FXO
ports, up to 8 BRI ports, and 1 E1/T1 PRI, 1 T1 CAS, or 1 E1 R2
port in a single, 19" 2U chassis. Additional PSTN / Analog phone
ports can be provided by connecting external Astribank units via
the USB2 ports, for a total of up to 160 PSTN / Analog phones
ports, up to 200 users and up to 45 concurrent calls.

The robust XE2000 comes standard with a dual hard drive (RAID1),
redundant fans for cooling, internal backup and restore, front
panel USB access, and two Ethernet ports to allow separation of IP
voice and data traffic for improved voice quality and increased
throughput.

A multi-function LCD (Liquid Crystal Display) on the XE2000
allows the system administrator to perform several of the most
common functions directly on the front panel of the IP-PBX without
having to attach a keyboard and monitor. The touch panel uses a
text-based menu tree to facilitate monitoring, maintenance and
troubleshooting of the entire telephony system.

Also available with the XE2000 is the Xorcom Rapid Recovery
backup utility, provided on Disk-on-Key. XE2000 units with an FXS
module support Xorcom Rapid PA to provide public address
functionality to Asterisk installations, and are also offered with
I/O ports to support a wide array of peripheral devices.

Mechanical Design

The XE2000 comes in a professional industry standard 19 2U
rack-mountable chassis.

Up to four Astribank units may be connected to a single XE2000
server using different USB 2.0 ports, a USB 2.0 hub or USB 2.0 PCI
card.

Applications

• Complete, stand alone IP-PBX for medium-sized businesses and
  enterprises (SMB and SME)
• Complete telephony system for hotels and condominiums (add
  on)
• CLEC (Competitive Local Exchange Carriers) IP-PBX

"Features">Features

• Various combinations of FXS, FXO, BRI ISDN and PRI/CAS/R2
  ports
• Supports SIP and IAX2 phones and trunks
• From 8 to 32 analog lines/extensions integrated into the
  unit
• Up to 8 BRI ISDN ports
• Single ISDN PRI (E1/T1) T1 CAS, or E1 R2 port
• Up to 4 external Astribank USB channel banks
• Up to 45 concurrent calls
• Supports auxiliary appliances (door locks, alarm systems).
  Available for models that feature I/O ports.
• FreePBX - Easy-to-use Web interface for Asterisk and network
  setup
• Advanced support and maintenance features:

  • Rapid Tunneling - opens a secured direct SSH tunneling to
    our support engineers upon user's request. Get our direct support
    wherever you are, behind firewalls and NATs.
  • Internet updates
  • Configuration export / import

Software

• Elastix
