Xorcom XE3009 Asterisk PBX: 24 FXS + 8 FXO + I/O

XorcomSKU: XE3009

Condition: New

Price:
Sale price$5,220.00

Login for lower price
Stock:
In stock

Description

XE3000 is a heavy-duty, stand-alone, pre-configured,
out-of-the-box Asterisk IP PBX optimized for businesses with high
call volumes and / or additional communication
applications

The XE3000 is an Elastix Asterisk IP PBX system supporting
various combinations of telephony ports. The stand-alone XE3000
base unit may be equipped with up to 32 analog FXS/FXO ports, up to
8 BRI ISDN ports, and up to 4 E1/T1 PRI, 4 T1 CAS, or 4 E1 R2 ports
in a single, 19" 2U chassis. Additional PSTN/analog phone ports can
be provided by connecting external Astribank units via the USB2
ports, for a total of up to 672 PSTN/analog phones ports, up to
1000 users and up to 480 concurrent calls.

The robust XE3000 comes standard with a dual hard drive
(RAID1)
, redundant fans for cooling, internal backup and
restore, front panel USB access, and two Ethernet ports to allow
separation of IP voice and data traffic for improved voice quality
and increased throughput.

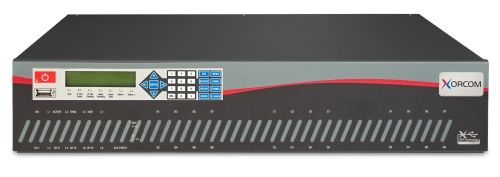

A multi-function LCD (Liquid Crystal Display) on the XE3000
allows the system administrator to perform several of the most
common functions directly on the front panel of the IP-PBX without
having to attach a keyboard and monitor. The touch panel uses a
text-based menu tree to facilitate monitoring, maintenance and
troubleshooting of the entire telephony system.

Also available with the XE3000 is the Xorcom Rapid Recovery
backup utility, provided on Disk-on-Key. XE3000 units with an FXS
module support Xorcom Rapid PA to provide public address
functionality to Asterisk installations, and are also offered with
I/O ports to support a wide array of peripheral devices.

Mechanical Design

XE3000 comes in a professional industry standard 19 2U
rack-mountable chassis.

Up to 20 Astribank units may be connected to a single XE3000
server using different USB 2.0 ports, a USB 2.0 hub or USB 2.0 PCI
card.

Applications

  • Complete, heavy duty stand alone IP-PBX for large
    businesses
  • Complete telephony system for hotels and condominiums (add
    on)
  • CLEC (Competitive Local Exchange Carriers) IP-PBX

Features

  • Various combinations of FXS, FXO, BRI ISDN and PRI, CAS or R2
    ports
  • Supports SIP and IAX2 phones and trunks
  • From 8 to 32 analog lines/extensions integrated into the
    unit
  • Up to 4 PRI (E1/T1), T1 CAS, or R2 (E1) ports
  • Up to 8 BRI ISDN ports
  • Up to 20 external Astribank USB channel banks
  • Up to 480 concurrent calls
  • Supports auxiliary appliances (door locks, alarm systems).
    Available for models that feature I/O ports.
  • FreePBX - Easy-to-use Web interface for Asterisk and network
    setup
  • Advanced support and maintenance features:
    • Rapid Tunneling - opens a secured direct SSH tunneling to
      our support engineers upon user's request. Get our direct support
      wherever you are, behind firewalls and NATs.
    • Internet updates
    • Configuration export / import

Software

  • Elastix
