Description

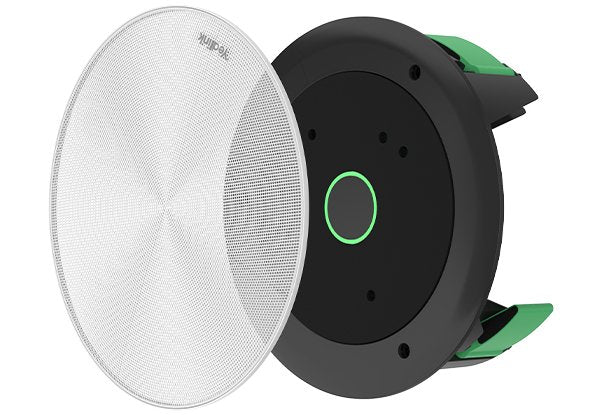

Yealink CM20 AI-Powered Beamforming Ceiling Microphone (1303095)
The Yealink CM20 is a top-of-the-line ceiling microphone, meticulously designed to elevate audio quality in corporate meetings. Featuring a sophisticated array of 16 omnidirectional mics, the CM20 captures sound from all angles, promoting clear and inclusive communication. Its integrated DSP allows for seamless use with Yealink MVC systems, eliminating the need for additional audio processing. Created for medium to large conference spaces, the CM20 seamlessly blends advanced technology and a modern aesthetic for maximum functionality and style.
Please see the Yealink CM20 Datasheet for more details.
Yealink CM20 Features
-
Advanced Microphone Array:
CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones
-
Superior Coverage:
Yealink CM20 has a premium quality 30 ㎡ full-duplex audio capture (STIPA 0.78 at pick-up radius 3.2 merters), and an effective coverage up to 60 ㎡ (STIPA 0.72 at pick-up radius 4.5 meters), in the environment of RT60=408ms @1khz,
Noise Level=40dBA, 2.8 meter height, ideal for medium to large spaces.
-
Intelligent Sound Processing:
Integrates Yealink's advanced noise reduction, echo & reverberation cancellation technologies for crystal-clear audio in every meeting -
Intelligent Tracking: *
Features 8 beam outputs for precise speaker tracking and integrates with room cameras for enhanced camera tracking, enriching meeting engagement -
In-built DSP for Simplicity:
Equipped with an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need
for external audio processing
-
Network and Deployment Efficiency: *
Supports AES67 for easy integration into audio networks. PoE enabled, requiring just one Ethernet cable for power and audio
-
Versatile Ceiling Integration:
Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration
-
Elegant and Unobtrusive Design:
Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain
Yealink CM20 Package Contents
- CM20 Microphone
- White Mesh Cover (Black Optional)
- Quick Start Guide
- Assembly Fixing Bracket
- Dust Cover
- Bracing Bridge*1 pair
- Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
- Self-tapping Screw*6 (T4*30mm)
- Machine Screw*5 (3*6PMOZN3+)
- Bracing Bredge Screw*20 (M3*6PWMHOZN3)
Optional Accessories: Suspend Pole Adapter, Length-Adjustable Pole
