Description
Yealink MeetingBar A10 with CTP18 Touch Panel – All-in-One Android Collaboration Bar

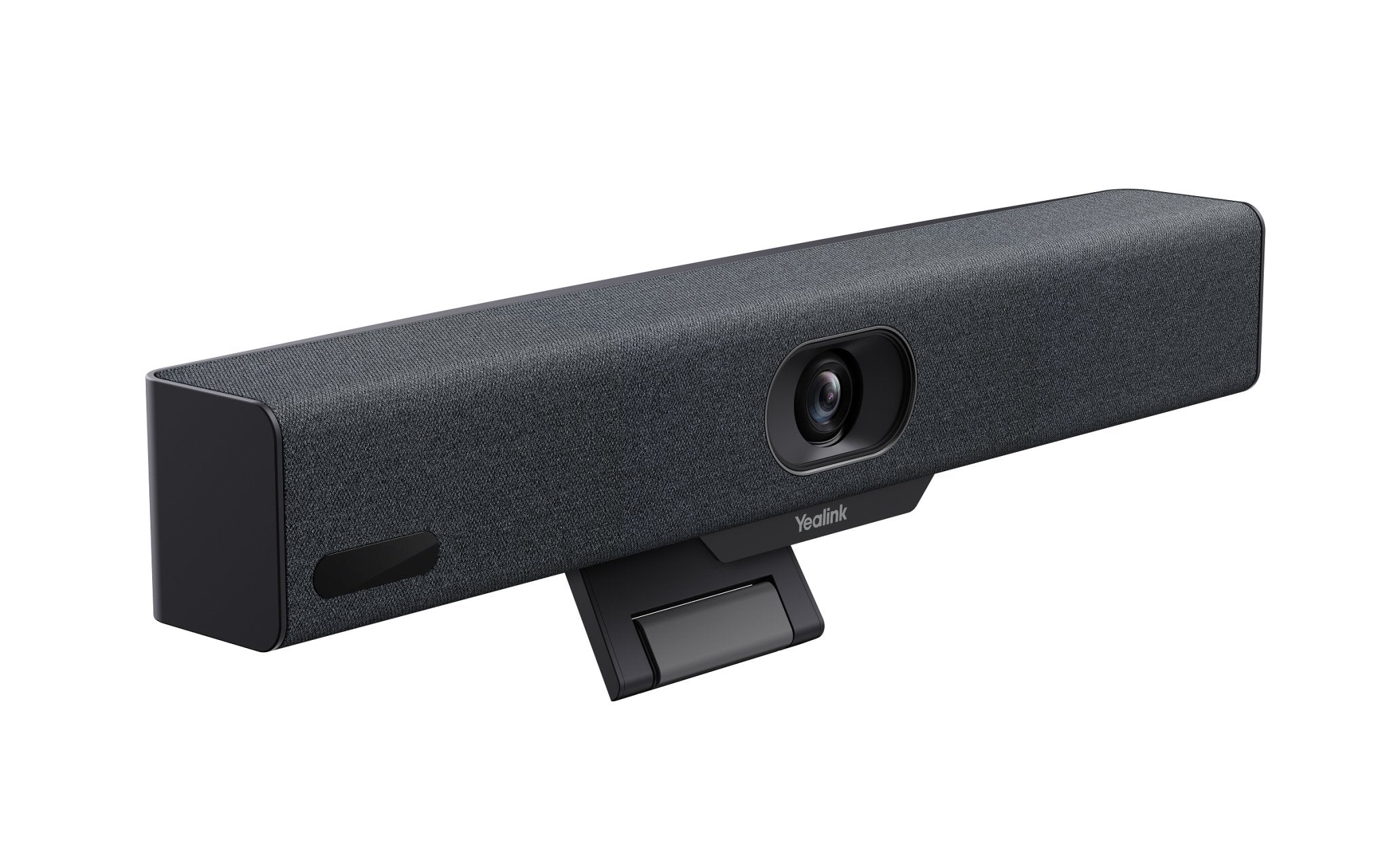

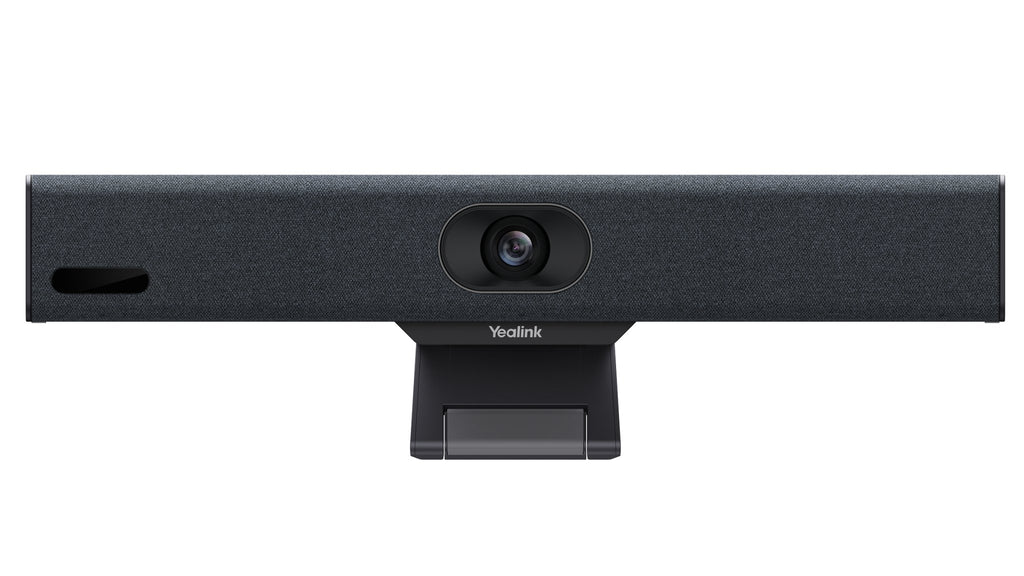

The Yealink MeetingBar A10 is a compact all-in-one video collaboration bar purpose-built for small meeting rooms, huddle spaces, and focus rooms. It integrates compute, camera, microphones, speakers, Wi-Fi, and Bluetooth into one tidy unit, and this A10-020 bundle includes the CTP18 touch panel for one-touch join and in-room control—no dedicated PC required.
Clear video in tight spaces
A 4K ultra-wide camera is optimized for short viewing distances and compact layouts, keeping participants naturally framed at the table. AI features like Auto Framing and Speaker Tracking help remote attendees follow the conversation without manual camera steering.
Room-filling audio, close-range pickup
A MEMS microphone array with full-duplex processing, noise reduction and echo cancellation captures voices around the table, while forward-facing speakers provide clear, balanced sound for small rooms.
Native Teams & Zoom—plus BYOD flexibility
Run Microsoft Teams Rooms or Zoom Rooms natively on the bar. For ad-hoc meetings or guest devices, connect via BYOD or share content using Yealink’s wired sharing kit.

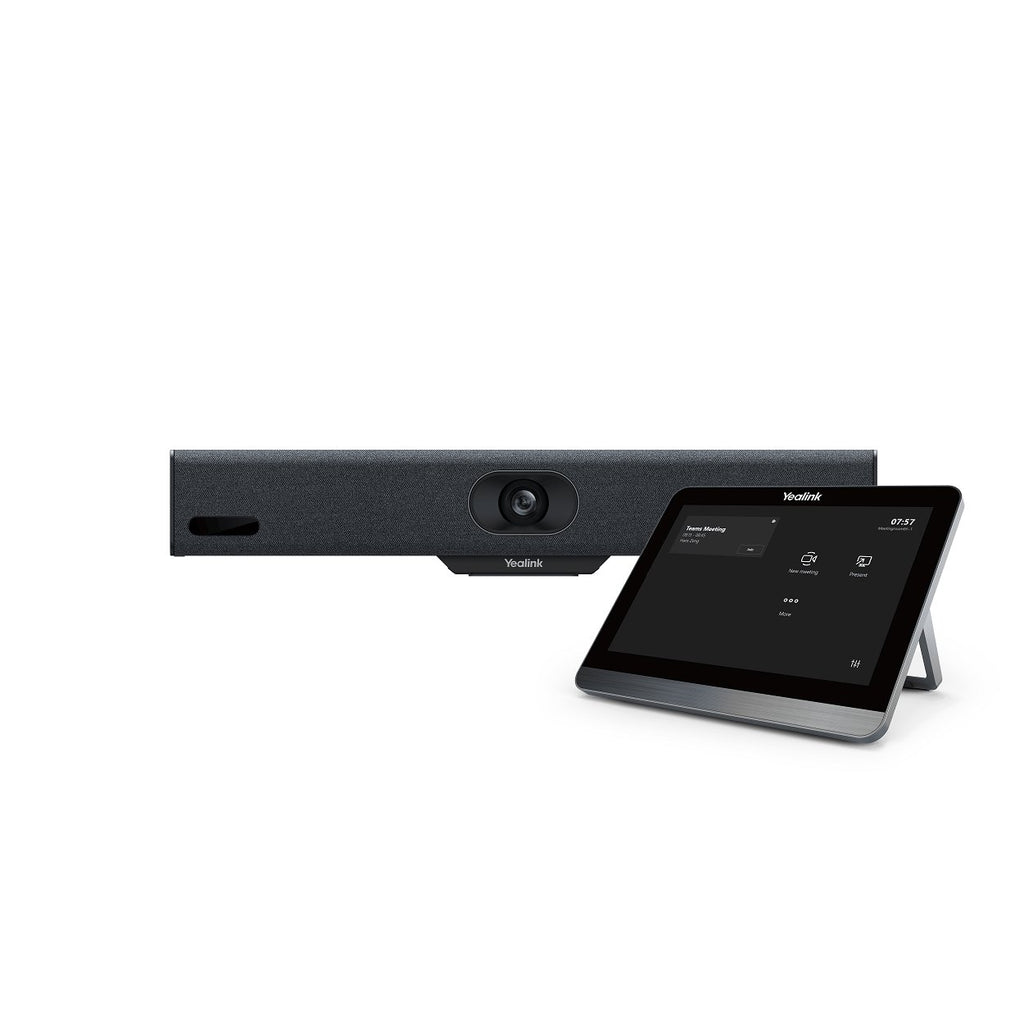

CTP18 touch control
The CTP18 console delivers one-touch join, call controls, camera adjustments, volume, mute, and layout switching from the tabletop for a streamlined in-room experience.
Key Features
- Designed for Small Rooms — Ideal for huddle/focus spaces and compact meeting areas.
- 4K Ultra-Wide Camera — AI Auto Framing and Speaker Tracking keep everyone in view.
- CTP18 Touch Panel Included — One-touch join and intuitive in-room control.
- Native Teams Rooms & Zoom Rooms — PC-free room system with fast startup.
- BYOD & Wired Sharing — Flexible for guest devices and mixed environments.
- All-in-One Simplicity — Compute, camera, mics, speakers, Wi-Fi & Bluetooth in one device.
Datasheet & Full Specifications
For complete technical details, see the Yealink MeetingBar A10 Datasheet (Oct 2025, PDF) .
Prefer a remote instead of the touch panel? View A10-010 (VCR remote) →
Looking for a deal? See A10-010 Open-Box →
Package Contents (A10-020)
- MeetingBar A10 endpoint
- CTP18 Touch Panel
- HDMI and network cables
- Mounting bracket & accessories
- Power adapter
- Quick Start Guide
Technical Specifications
| Parameter | Description |
|---|---|
| Camera | • 4K camera (2160p @ 30 fps, 1080p @ 30 fps, 720p @ 30 fps) • 120° DFoV / 105° HFoV / 4× e-PTZ camera • Electric privacy shutter • Intelligence Features: – Auto Framing – Speaker Tracking – Multi-focus Framing – Smart Gallery (Zoom only) |
| Audio | • Built-in 8 MEMS microphone array • 4.5 m pickup distance (3.5 m high-quality range) • AI Noise Cancellation Algorithm / Full-duplex audio • AGC (Automatic Gain Control) / Echo Cancellation Technology • Mic frequency response: 100 Hz – 8 kHz Speaker: – Built-in 5 W high-fidelity speaker (8 W max) – Frequency response: 210 Hz – 20 kHz – Volume: 88 dB SPL @ 1 W / 93 dB SPL @ 3 W (±2 dB @ 0.5 m) – Sensitivity: 84 dB SPL @ 1 W @ 0.5 m – THD < 5% @ 5 W, 1 kHz – Impedance: 4 Ω – Forward-facing sound emission / 48 kHz sampling |
| Operating System | Android 11 |
| Meeting Features | • Calendar integration & one-click join • Content sharing and collaboration • Meeting control options: – Add participants – Hold/Resume – Camera On/Off – Mute/Unmute – Volume Up/Down – Hang Up |
| Video Standard & Codecs | H.264 High Profile, H.264 SVC, H.264 baseline compatible |
| Network & Security | • Dual-band Wi-Fi (2.4 GHz / 5 GHz) & Bluetooth 4.2 • IPv4/IPv6 support, DHCP / Static IP • HTTP/HTTPS server, TLS 1.2/1.3 & AES-256 encryption • QoS 802.1p/q, DiffServ / VLAN / LLDP • IEEE 802.1X (EAP-MD5, EAP-TLS, PEAP-MSCHAPv2, EAP-TTLS MSCHAPv2) • Network diagnostics: Ping / Trace route • SNTP time sync & built-in certificate management |

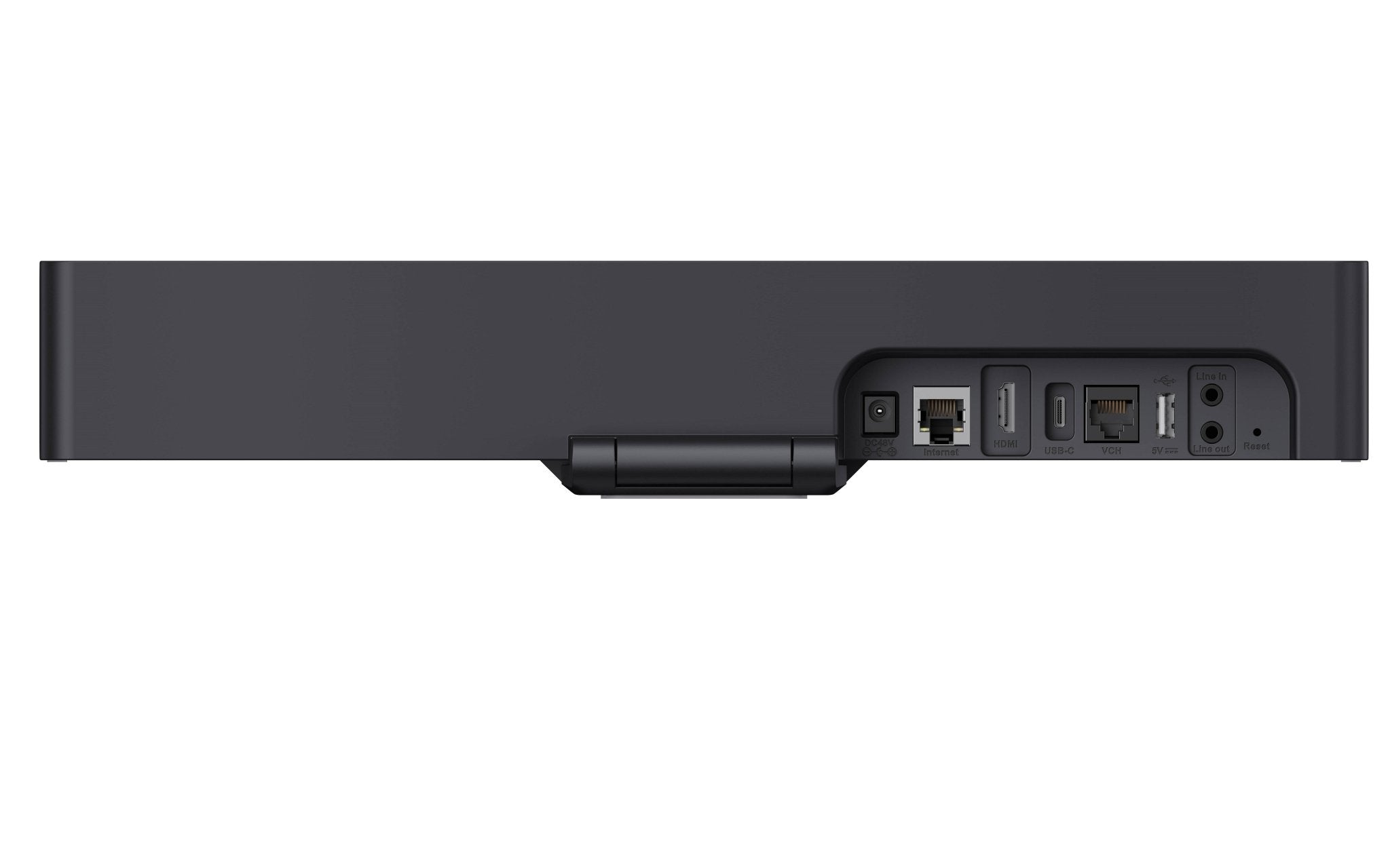

| Ports & Connectivity | • 1 × HDMI output (CEC supported) • 1 × USB 2.0 Type-A • 1 × USB-C for content sharing / BYOD • 1 × Line In/Out (3.5 mm) • 1 × Ethernet (10/100/1000 Mbps) • 1 × Yealink VCH port (RJ-45) • 1 × Power port / Security lock slot / Reset slot |
| Power & Consumption | • AC 100 – 240 V input / DC 48 V 0.7 A output • USB output 5 V 0.5 A • Power usage: 7.9 W standby / 4.6 W avg / 8.1 W peak |
| Physical & Environmental | • Dimensions (W×D×H): 380 × 57 × 57 mm • Operating temperature 0 – 40 °C / humidity 10 – 90 % • Storage temperature –30 – +70 °C |
| Weight | • A10-010 (Carton Qty 4): N.W. 8.31 kg / G.W. 9.25 kg • A10-020 (Carton Qty 1): N.W. 3.59 kg / G.W. 4.27 kg |
| Package Contents | • MeetingBar A10 endpoint • 3 m Ethernet cable • 1.8 m HDMI cable • Mounting bracket & accessories • Power adapter & Quick Start Guide • Controller device: CTP18 Touch Panel (included in A10-020) / VCR11 Remote (optional) • Sharing & BYOD device: HDMI/USB-C sharing kit (optional) |
| Device Management | • Yealink HTTPS Web Portal • Yealink Device Management Platform (DMP) • Yealink Cloud Service (YDMP) • Microsoft Teams Admin Center / Zoom Device Management |
Frequently Asked Questions
What’s included with the A10-020 bundle?
The MeetingBar A10 video bar, CTP18 touch panel, HDMI & network cables, mounting hardware, power adapter, and Quick Start Guide.
Which platforms does A10 support?
Microsoft Teams Rooms and Zoom Rooms run natively on the bar. The system also supports BlueJeans and RingCentral experiences.
How can I share content?
Use wired content sharing via Yealink’s optional HDMI/USB-C sharing kit or use BYOD and native screen sharing within Teams/Zoom.
Note: Wireless Presentation Pods (WPP20/WPP30) are not available in the U.S.
What room size is A10 designed for?
A10 is optimized for small rooms, huddle spaces, and focus rooms where short camera distances and compact layouts are common.
What’s the difference between A10-020 and A10-010?
Core hardware is the same. A10-020 includes the CTP18 touch panel for in-room control. A10-010 includes a handheld remote instead.
Do you offer an open-box option?
Yes—see our A10-010 Open-Box listing for a like-new unit with full accessories (inventory varies).
