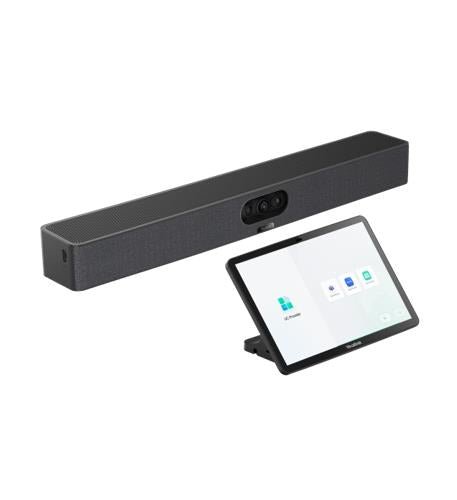

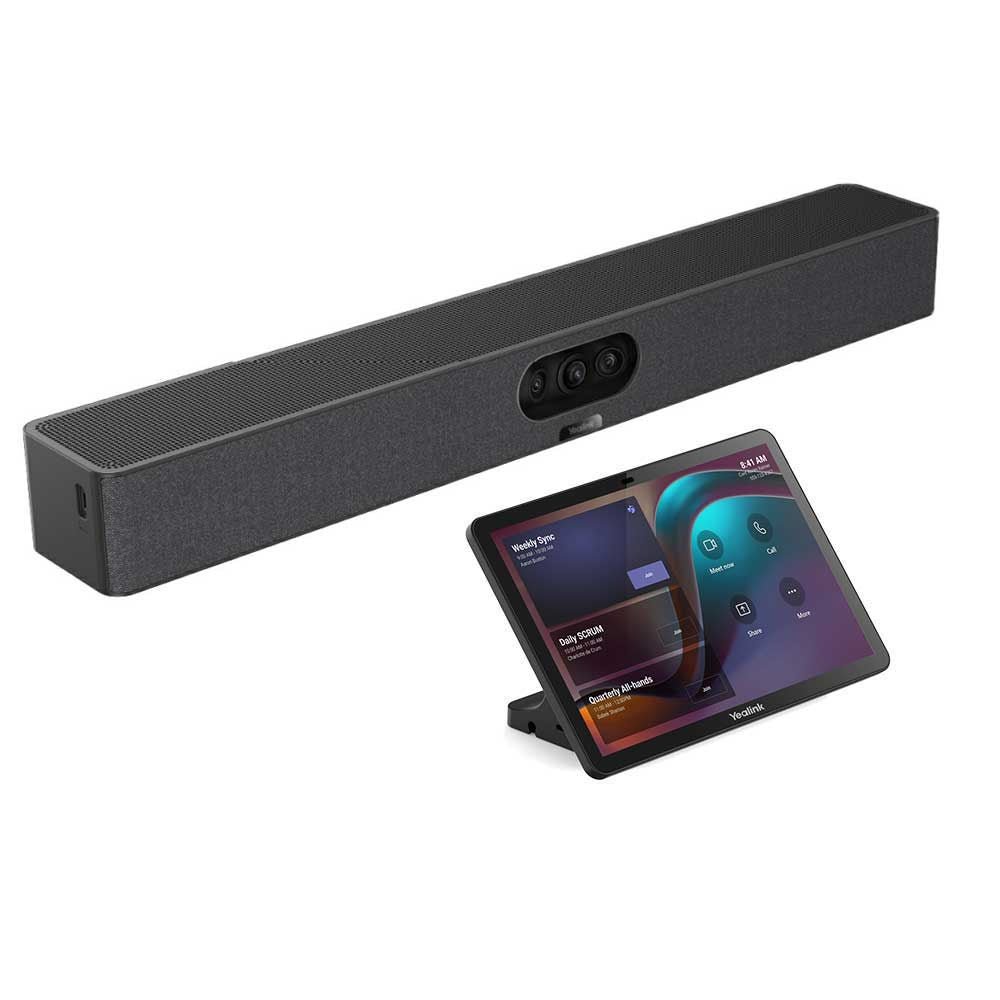

Yealink MeetingBar A25 with CTP25 – All-in-One Android Video Bar for Focus Rooms

YealinkSKU: A25-031

Condition: New

Price:
Sale price$2,299.00

Login for lower price
Stock:
Re-stocking soon

Have a question? Call us! 866-369-3394

Secure payments

Free shipping on orders over $500*

30 Day Hardware Return Policy

Top Rated Customer Care

Description

Yealink MeetingBar A25 with CTP25 – All-in-One Android Video Bar for Focus Rooms (1206713)

The Yealink MeetingBar A25 is an advanced all-in-one video conferencing bar purpose-built for focus and huddle rooms. Featuring a powerful triple-camera system with a 151° ultra-wide field of view, 4K video resolution, and an 8-microphone MEMS array, the A25 ensures every participant is clearly seen and heard.

Powered by Android 13 with support for Microsoft Teams Rooms, Zoom Rooms, and BYOD mode, this sleek bar delivers seamless compatibility, intelligent security via Microsoft MDEP, and a simple plug-and-play deployment experience.

Key Features & Benefits

  • Triple-Camera System with 151° Ultra-Wide View
    Capture every angle with three integrated 4K cameras delivering sharp detail, IntelliFocus, auto-framing, and smart gallery options for hybrid meetings.
  • Crystal-Clear Audio with AI Noise Reduction
    An 8-mic array and built-in 10W speaker provide 5-meter pickup range, full-duplex audio, and advanced noise suppression for professional sound quality.
  • Enterprise-Grade Security & Deployment
    Fully Microsoft MDEP compatible, ensuring secure, streamlined setup and IT-friendly device management.
  • Multi-Platform Flexibility
    Natively supports Microsoft Teams Rooms and Zoom Rooms. In BYOD mode, connect via USB to run meetings on any third-party platform
  • Simple Deployment & Remote Management
    Direct CTP25 login saves setup time, while Yealink’s Cloud Device Management Platform allows remote monitoring, updates, and troubleshooting.
    Flexible Installation Options
    Mount on the wall, place on a desktop, or use with a TV mount for professional room integration.

Please see Yealink A25 Datasheet for more information

Yealink MeetingBar A25 Specifications

Parameter Description
Operating System Android 13
Camera
  • Maximum pixels: 3 × 4K camera
  • Number of cameras: 3
  • Electronic gimbal; 9 preset positions
  • Ultra-wide camera: HFOV 151°, VFOV 81°
  • Two tele-cameras: HFOV 84.4°, VFOV 53.1°
  • Depth of field: 0.4–2.5 m
  • Maximum resolution: 4K @ 30 fps
  • Electric privacy lens cap; lens calibration
  • Intelligence features: IntelliFocus (2 portraits), Auto Framing, Speaker Tracking, Picture-in-Picture, Video Fence, Smart Gallery (Zoom Rooms only)
Speaker
  • Built-in 10 W speaker (max power 12 W; rated 10 W)
  • Max SPL: 110 dB SPL (10 W @ 0.1 m)
  • Frequency response: 100–16 kHz
  • Sensitivity: 86 dB SPL @ 1 W @ 0.5 m
  • Sampling rate: 48 kHz
  • Forward-facing sound emission
  • THD: <5% @ 10 W, 1 kHz
  • Rated impedance: 4 Ω
Microphone
  • Built-in 8 MEMS microphone array
  • Pickup: up to 5 m (3.5 m high-quality pickup)
  • SNR: 72 dB
  • Max SPL: 130 dB SPL (device), 100 dB SPL (per mic)
  • Dynamic range: 28–100 dB SPL
  • Sensitivity: −38 dBV/Pa
  • Frequency response: 100–20 kHz
  • Sampling: 48 kHz / 32-bit
Resolution
  • Portrait video: up to 4K @ 30 fps
  • Recommended bandwidth: ≥ 10 Mbps
Content Sharing
  • General mode: up to 4K @ 15 fps
  • Microsoft Teams: 1080p in-meeting; 4K local sharing
  • Zoom: 1080p
Video Codec H.264 High Profile, H.264 SVC, H.264
Communication Standard / Protocol
  • H.323 / SIP (General mode)
  • Dual stream: H.239 (H.323) / BFCP (SIP)
  • FECC: H.224 / H.281
  • H.323 suite: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account
Network Protocol
  • Wi-Fi 6 (2.4G & 5G; 802.11 a/b/g/n/ac/ax; 2×2 MIMO)
  • Bluetooth 5.1
  • TCP/IP (IPv4/IPv6), DHCP / Static IP
  • HTTPS secure web access
Configuration Management
  • Auto configuration via web / display / AutoP
  • Firmware upgrade; factory reset
  • Config import/export; system log export
Device Management
  • Yealink HTTPS Web Portal
  • Yealink Device Management Platform
  • Yealink Management Cloud Service
  • Microsoft Teams Admin Center / Intune
  • Zoom Device Management
Installation
  • Wall mount
  • TV mount (optional)
  • Desktop placement (optional)
Ports
  • USB-A 2.0 ×1
  • USB-C 2.0 (side) ×1
  • USB-C 3.0 ×1
  • Ethernet ×1
  • Yealink VCH (RJ-45) ×1
  • HDMI-out ×1
  • 3.5 mm Line-out ×1
  • Power port ×1
  • Security lock slot ×1
  • Reset slot ×1
Package Contents
  • MeetingBar A25
  • Power adapter
  • HDMI cable ×1
  • Network cable ×1
  • USB-A to USB-C cable ×1
  • Wall mount ×1
  • Optional kits:
    • A25-010: A25 + USB-C to USB-C cable + VCR11
    • A25-031: A25 + CTP25
Environmental
  • Operating humidity: 10–95%
  • Operating temperature: 0–40 °C
Dimensions & Weight
  • Bar: 570 × 80 × 65 mm
  • N.W./CTN: 3.812 kg
  • G.W./CTN: 4.290 kg
