Description

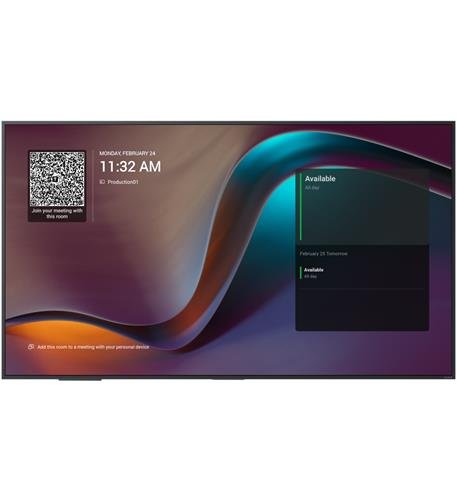

Yealink MeetingDisplay 65/75/86 – 4K UHD Anti-Glare Interactive Display
Options Available:
-

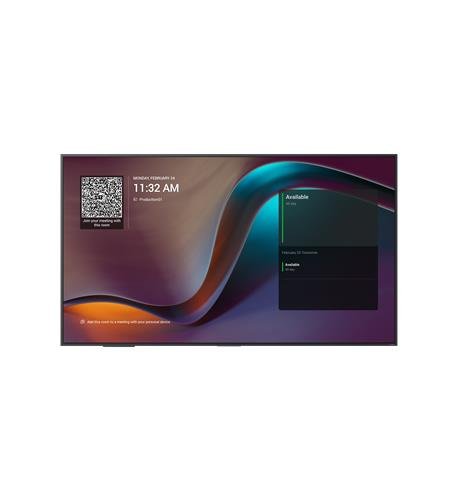

65" MeetingDisplay 65 - MD65 (1203690)

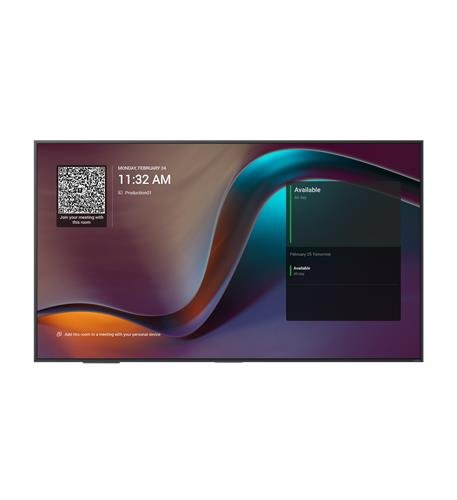

- 75" MeetingDisplay 75 - MD75 (1203691)
-
86" MeetingDisplay 86 - MD86 (1203692)
PLEASE NOTE: This product is oversized and may require a custom shipping quote.
The Yealink MeetingDisplay Series (65”, 75”, and 86”) redefines what professional meeting room displays can do. Designed specifically for Yealink Microsoft Teams Room (MTR) systems, these premium 4K displays seamlessly integrate with Yealink’s MeetingBar, UVC camera, and MCore components — giving businesses a truly unified collaboration experience.
Whether you’re outfitting a small huddle room or a large boardroom, the Yealink MeetingDisplay ensures crystal-clear visuals, simple setup, and effortless management from one interface.

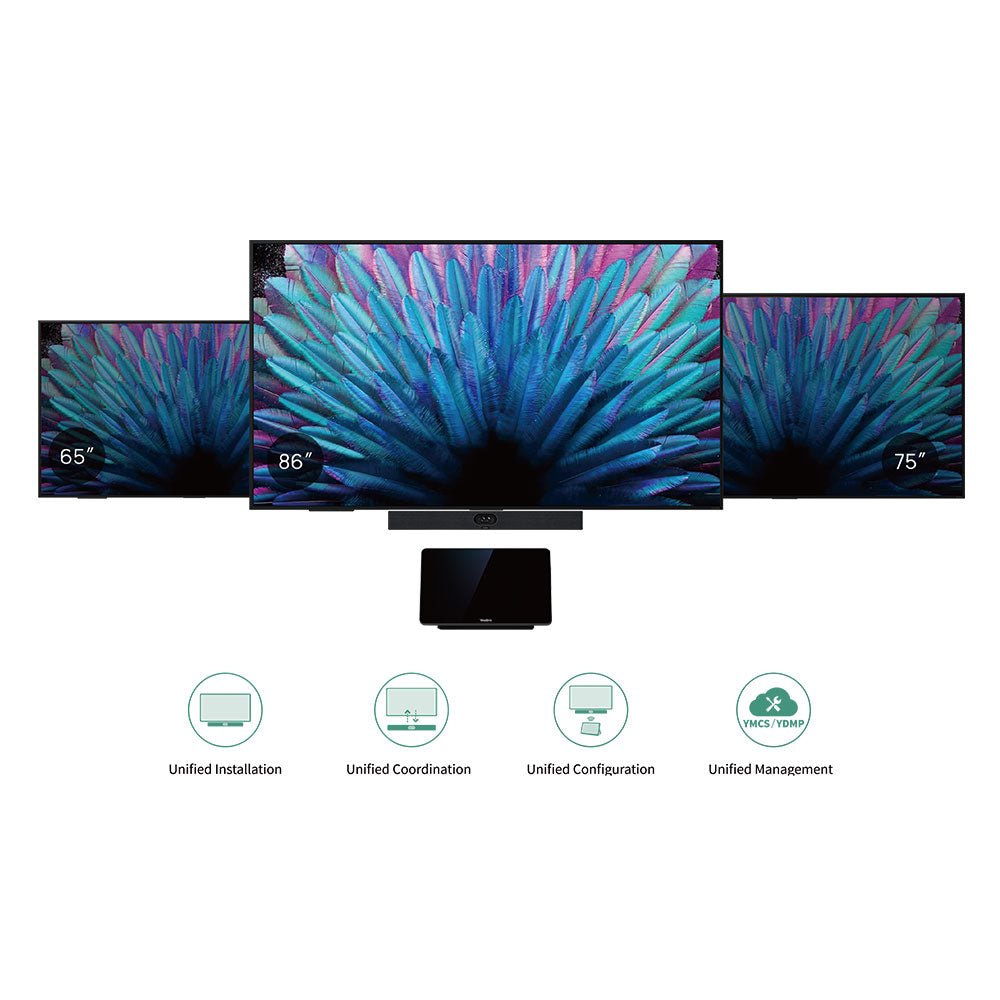

Unified Design and Installation
Forget complicated installations and wall damage. The Yealink MeetingDisplay features custom mounting brackets embedded into the rear panel, allowing direct attachment of Yealink components such as the MeetingBar A40/A50, UVC cameras, and MCore mini-PCs — all in under 5 minutes.
The result is a clean, cable-free, professional setup that keeps your conference space looking modern and organized.
Smarter Meeting Management
The MeetingDisplay doesn’t just show content — it works intelligently with your Yealink MTR system to synchronize power, sleep, and wake functions, reducing energy use and streamlining daily operation.
Everything can be controlled from a single touch console, including brightness, audio settings, and configuration.
Powerful Performance, Exceptional Clarity
- Stunning 4K UHD resolution (3840×2160)
- High brightness (500 cd/m²) with anti-glare coating for any lighting condition
- 178° wide viewing angle ensures every participant sees clearly
- 10-bit color depth and 72% NTSC gamut deliver vivid, true-to-life visuals
- Audio is equally robust, with dual 12W speakers built in for rich, room-filling sound.
All-in-One Connectivity
Enjoy flexible wired or wireless screen sharing through HDMI, AirPlay, Miracast, or Yealink’s Wireless Presentation Pod (where available). The display also includes:
- Wi-Fi 6 and Bluetooth 5.1 for fast, stable connections
- Dual RJ45 network ports for device passthrough
- Multiple USB and HDMI inputs for external sources
- RS232 and IP control support for advanced integration
Please see the Yealink MeetingDisplay Datasheet for more information
Specifications
| Parameter | Description |
|---|---|
| Display Sizes | 65", 75", and 86" |
| Display Type | IPS Panel |
| Surface Treatment | Anti-glare coating |
| Refresh Rate | 60 Hz |
| Grayscale Response Time | 8 ms |
| Color Gamut | 72 % NTSC |
| Color Depth | 1.07 B (10-bit) |
| Viewing Angle | 178° (H) / 178° (V) |
| Contrast Ratio | 1200 : 1 |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 500 cd/㎡ |
| Haze | 25 % |
| Operation Time | 7 × 18 h continuous operation |
| Audio | Built-in 12 W × 2 stereo speakers |
| Content Sharing – Wired | HDMI In |
| Content Sharing – Wireless | AirPlay, Miracast, Wireless Presentation Pod (*unavailable in U.S.*) |
| Video Inputs | HDMI In 2.0 × 3 |
| Audio Output | 3.5 mm Stereo Mini Jack (Output) |
| USB Ports | USB-A 2.0 × 2, USB-B 2.0 × 1 |
| LAN Ports | RJ45 10/100/1000 M × 2 |
| Control Ports | RS232 × 1, IP Control (via LAN) |
| Other Controls | Reset × 1 |
| Wireless | Wi-Fi 6 (2.4 G & 5 G dual-band 802.11 a/b/g/n/ac/ax), Bluetooth 5.1, IR supported |
| Installation Methods | Wall-mounted or Floor-stand installation |
| Operating System | Android 13 |
| Memory | 4 GB RAM |
| Storage | 32 GB Flash |
| Power Adapter | 100 – 240 V AC 50/60 Hz |
| Power Consumption (65") | Max 210 W / Typical 183 W / Off < 0.5 W |
| Power Consumption (75") | Max 215 W / Typical 186 W / Off < 0.5 W |
| Power Consumption (86") | Max 323 W / Typical 268 W / Off < 0.5 W |
| Operating Temperature | 0 – 40 °C |
| Storage Temperature | -20 – 60 °C |
| Operating Humidity | 10 – 95 % |
| Warranty | 3 years |
Bracket Compatibility
| Bracket | Compatible Devices |
|---|---|
| MD-WallMount | MeetingDisplay 65, 75, 86 (sold separately) |
| MD-AVBracket-S | MeetingBar A40, SmartVision 40, MSpeaker Pro |
| MD-AVBracket-L | MeetingBar A50, S50 |
| MD-PTZBracket | UVC86, SmartVision 80 |
| MCore Bracket | MCore 4 (included in the package) |
Suggested Bundles
| Bundle | Recommended Brackets |
|---|---|
| MeetingDisplay 65/75 + MeetingBar A40 | Wall: MD-WallMount + MD-AVBracket-S Mobile: MB-FS-Lift + MD-AVBracket-S |
| MeetingDisplay 65/75 + MVC S40 | Wall: MD-WallMount + MD-AVBracket-S + MCore Bracket Mobile: MB-FS-Lift + MD-AVBracket-S + MCore Bracket |
| MeetingDisplay 75/86 + MeetingBar A50 | Wall: MD-WallMount + MD-AVBracket-L Mobile: MB-FS-Lift + MD-AVBracket-L |
| MeetingDisplay 75/86 + MVC S50 | Wall: MD-WallMount + MD-AVBracket-L + MCore Bracket Mobile: MB-FS-Lift + MD-AVBracket-L + MCore Bracket |
| MeetingDisplay 86 + MVC S80/MVC 860 | Wall: MD-WallMount + MD-PTZBracket + MCore Bracket Mobile: MB-FS-Lift + MD-PTZBracket + MCore Bracket |
| MeetingDisplay 86 + MVC S80/MVC 860 + MSpeaker Pro | Wall: MD-WallMount + MD-PTZBracket or MD-AVBracket-S + MCore Bracket Mobile: MB-FS-Lift + MD-PTZBracket or MD-AVBracket-S + MCore Bracket |
Main Unit Dimensions & Weight
| Parameter | MeetingDisplay 65 | MeetingDisplay 75 | MeetingDisplay 86 |
|---|---|---|---|
| Bare Device Dimensions (W × D × H) | 1456 × 58 × 834 mm | 1680 × 57 × 959 mm | 1927 × 61 × 1099 mm |
| Packaging Dimensions (W × D × H) | 1590 × 185 × 925 mm | 1815 × 185 × 1055 mm | 2065 × 215 × 1155 mm |
| Net Weight | 19.9 kg (43.9 lbs) | 28.4 kg (62.6 lbs) | 45.2 kg (99.6 lbs) |
| Gross Weight | 28.2 kg (62.2 lbs) | 38.7 kg (85.3 lbs) | 58.7 kg (129.4 lbs) |
| VESA Hole Specs | 400 × 400 mm | 600 × 400 mm | 600 × 400 mm |
| VESA Mount Screw | M8 | M8 | M8 |
| Bezel Width (L/R/U/D) | 6 / 6 / 6 / 7.5 mm | 6 / 6 / 6 / 8.5 mm | 9 / 9 / 9 / 9 mm |
| Quantity per Box | 1 unit | 1 unit | 1 unit |
Package Contents
- MeetingDisplay (size selected)
- 3 m AC Power Cable
- 3 m CAT5E Network Cable
- Quick Start Guide
- Cable Pack and Ties
- Remote Controller (IR) + 2 × AAA Batteries
- MCore Bracket (compatible with MCore 4; MCore sold separately)
