Description

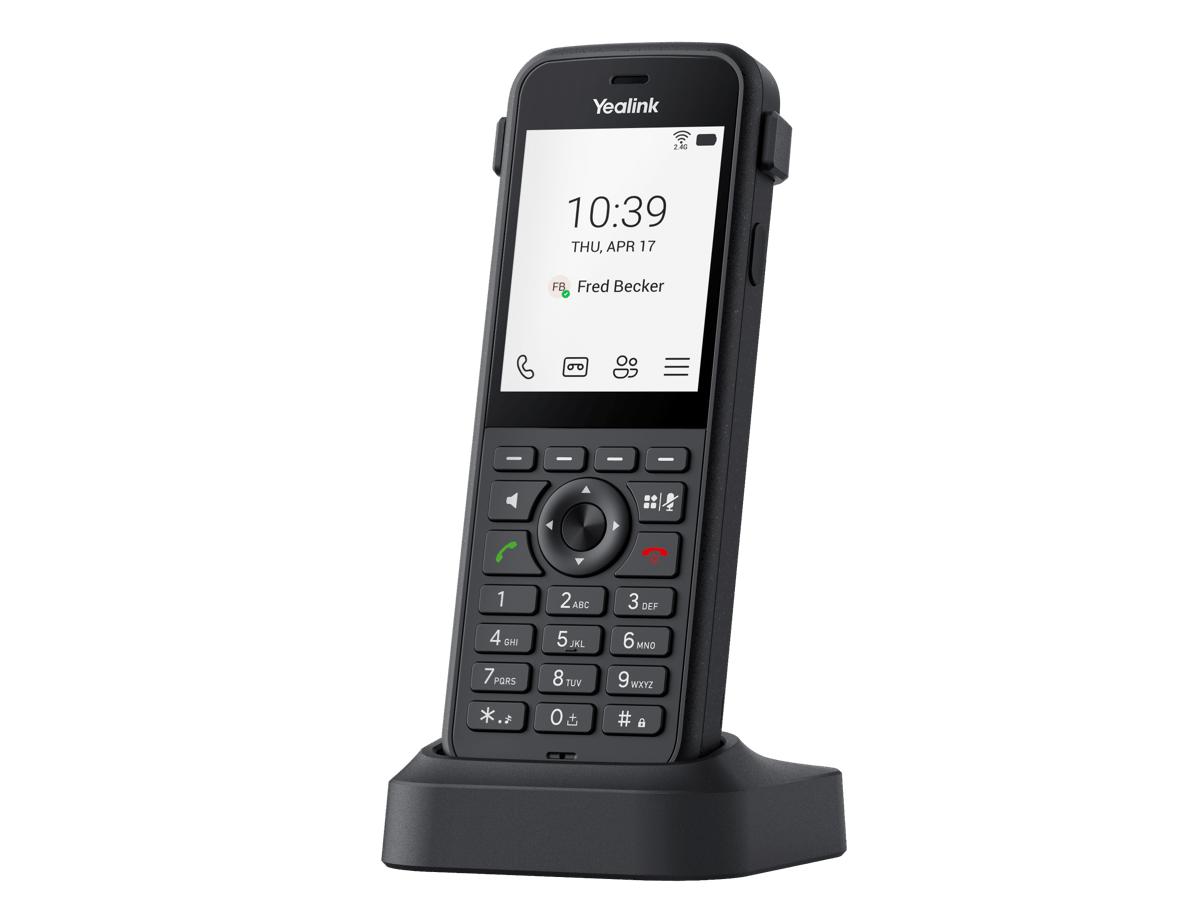

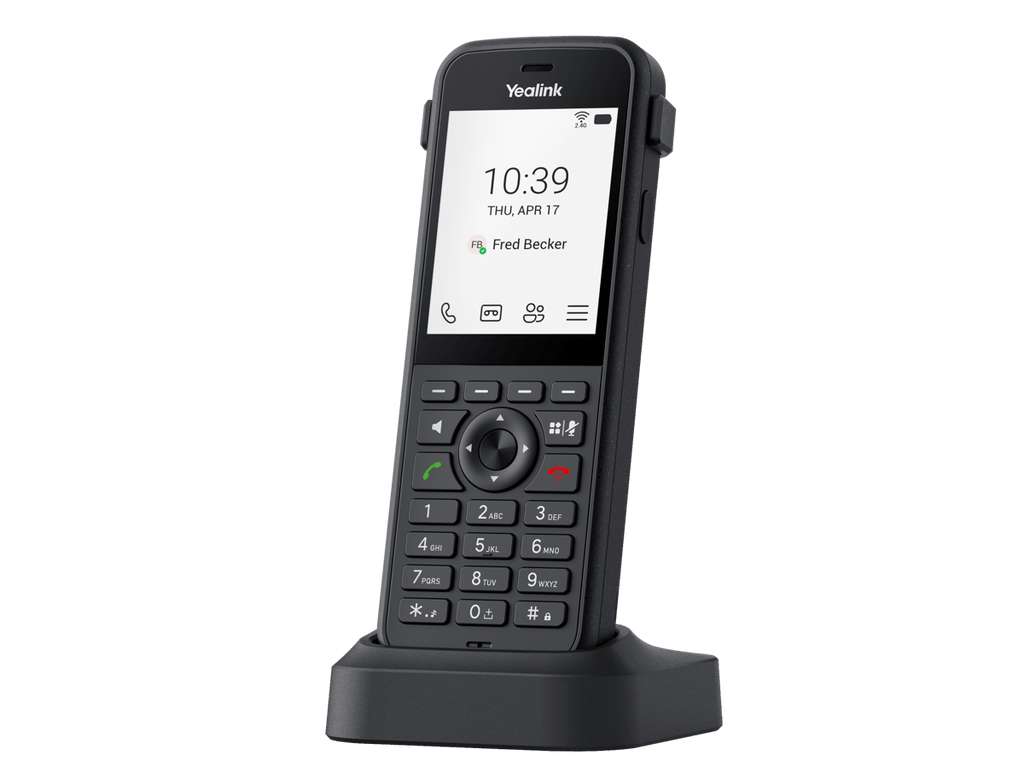

The Yealink MP66W (1301233) is a Microsoft Teams certified cordless rugged handset built for mobile professionals. This enterprise portable Teams Wi-Fi color screen phone meets the IP67 protection standard for waterproof, dustproof, and 1.8-meter drop-proof capability. Built on the Microsoft Device Ecosystem Platform (MDEP, Android 15), it delivers a native Teams calling and meeting experience, while Yealink Optima HD Audio and AI Noise Cancellation keep voices clear. Yealink designed it for wireless scenarios such as healthcare, manufacturing, retail, warehouses, transportation, and education.
Key Features
- IP67-rated rugged design – Waterproof and dustproof, drop-proof up to 1.8 meters, with an antibacterial design and chemical-cleaning-resistant materials.
- Built on MDEP (Android 15) – Microsoft Device Ecosystem Platform uses Microsoft Public Key Infrastructure (PKI) and hardware-based attestation to protect device-to-cloud communication, making zero-touch enrollment feasible.
- 2.8-inch color screen – 240 x 320 TFT non-touch color display with backlight.
- Tri-band Wi-Fi 6E with fast roaming – 2.4 GHz/5 GHz/6 GHz Wi-Fi 6E with IEEE 802.11k/v/r roaming for automatic network switching in milliseconds between access points (Yealink notes 6 GHz Wi-Fi is coming soon).
- Optima HD audio with AI Noise Cancellation – Acoustic Shield, dual-mic noise cancellation, and a full-duplex hands-free speakerphone with AEC.
- Push-to-talk – Dedicated PTT button for instant one-press team communication.
- Emergency alerting – Red emergency button and programmable action button for instant emergency calls.
- Bluetooth 5.3 – Built-in Bluetooth for headsets.
- USB Type-C and charging cradle – Type-C port for charging, headsets, and YubiKey, plus an included charging cradle; with 2.5-hour full charging.

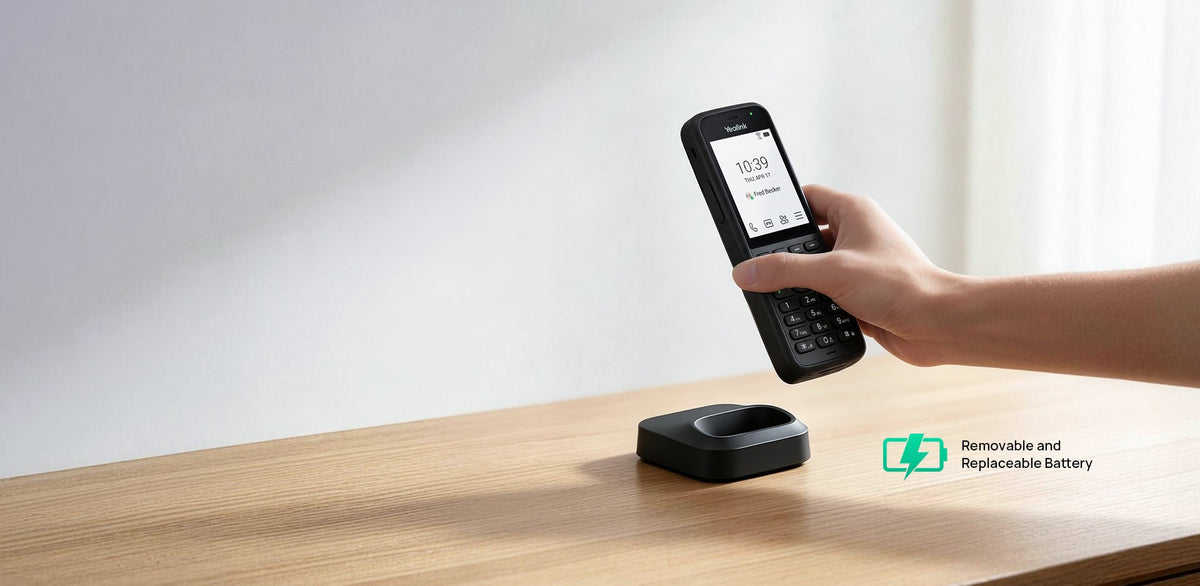

- All-day battery – 3000 mAh swappable battery with up to 8 hours of talk time and up to 80 hours of standby (laboratory data).
- Flexible management – Supports Microsoft Teams Admin Center (TAC), Yealink Device Management Platform (YDMP), and Yealink Management Cloud Service (YMCS); wall-mountable.
Technical Specifications
| Category | Details |
|---|---|
| Operating System | MDEP (Android 15) |
| Display | 2.8-inch (240 x 320) TFT color non-touch screen with backlight; keypad backlight; power LED for call and message waiting indication |
| Audio | HD handset, HD speaker, hearing aid compatible (HAC) handset, Acoustic Shield, AI Noise Cancellation, dual-mic noise cancellation, full-duplex hands-free speakerphone with AEC |
| Audio Codecs | SILK, G.722, G.722.1, G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC, ARES |
| Phone Features | P2P incoming/outgoing calls, Cloud PSTN calls, call hold/mute/transfer/forward, visual voicemail, synchronized call logs, add/remove participant, multi-line, emergency calls, Common Area Phone (CAP) |
| Keys | 4 soft keys; 4 feature keys (speaker, off-hook, on-hook, mute); programmable action key; side key; volume keys; navigation keys and OK key |
| Wi-Fi | Built-in tri-band 2.4 GHz/5 GHz/6 GHz (6 GHz coming soon); IEEE 802.11a/b/g/n/ac/ax; roaming IEEE 802.11k/r/v |
| Bluetooth | Bluetooth 5.3 for headsets |
| Interfaces | 1 x USB Type-C (charging, headsets, YubiKey); charging dock connector |
| Security | WPA/WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise, IEEE 802.1X, TLS 1.3, HTTPS certificate manager, AES encryption for the configuration file |
| Network | IPv4/IPv6, static/DHCP IP assignment, SNTP time synchronization |
| Management | Microsoft Teams Admin Center (TAC), Yealink YDMP/YMCS, Yealink RPS, auto-provisioning, QoE monitoring reports |
| Battery | 3000 mAh rechargeable lithium-ion, 3.85 V, 11.55 Wh; up to 8-hour talk time and up to 80-hour standby (laboratory data) |
| Power Adapter | AC 100–240 V input, DC 5 V / 3 A output |
| Durability | IP67, safe drop height 1.8 m, chemical cleaning resistant, antibacterial design |
| Handset Size | 160.9 x 58.8 x 21.5 mm |
| Handset Weight | 220 g |
| Operating Environment | 0–40 °C (32–104 °F), 10–95% humidity; storage -30–70 °C |
| Package Contents | MP66W handset, charger cradle, rechargeable battery, belt clip, quick start guide, power adapter |
Yealink MP66W Datasheet
