Description
Yealink MVC S80-C5U-000 Teams Room System for Large Rooms (1106798)

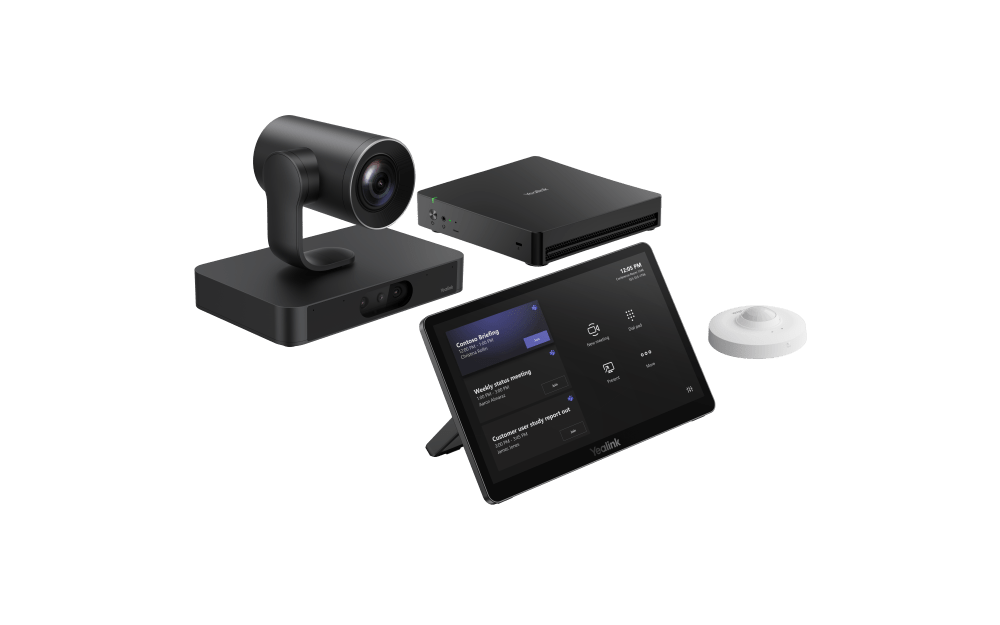

Experience next-level video conferencing with the Yealink MVC S80-C5U – an advanced Microsoft Teams Room (MTR) system engineered for large conference spaces. This all-in-one bundle includes the powerful MCore 4 mini-PC, intuitive MTouch Plus touch panel, intelligent SmartVision 80 four-lens AI camera, and RoomSensor for automated occupancy detection and environmental monitoring.
At its core, the MVC S80-C5U is powered by an Intel Ultra5 125H processor, delivering blazing-fast performance, superior AI-driven processing, and seamless Teams Room operation. The SmartVision 80 camera system combines a PTZ lens with three electronic cameras to provide complete room coverage, up to 20x optical zoom, and AI features like IntelliFocus, Auto Framing, Presenter Tracking, and Speaker Tracking.
Built for professional-grade performance, the MTouch Plus 11.6” touch controller offers one-touch meeting controls, real-time content sharing (wired or wireless -not currently available in USA), and dynamic integration with the RoomSensor for a smarter, more responsive meeting environment. Whether you're running hybrid board meetings, global team calls, or client presentations, the MVC S80-C5U is the ultimate solution for effortless, high-impact collaboration.
Key Features:
- SmartVision 80 Camera: PTZ + panoramic + dual telephoto lenses for 360° visibility and 20x zoom
- AI Meeting Intelligence: IntelliFocus, Auto Framing, Presenter & Speaker Tracking
- 11.6" Touch Control: MTouch Plus interface for seamless Teams operation and content sharing
- Powerful MCore 4 Mini-PC: Intel Ultra5 125H, 16GB DDR5 RAM, 256GB SSD, Wi-Fi 6, BT 5.2
- RoomSensor: Occupancy detection, temperature, and humidity metrics displayed live
- Flexible Sharing: Supports HDMI, USB-C, and wireless (not currently available in USA) 1080p content sharing
- Simple Deployment: One-cable setup, remote management, and Windows 11 IoT pre-installed
Ideal For:
- Executive boardrooms
- Large conference spaces
- Enterprise Teams deployments
- Hybrid meeting environments
Please see the Yealink MVC S80-C5U Datasheet for more information.
Yealink MVC S80-C5U-000 Specifications
| Parameter | Description |
|---|---|
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • SmartVision 80 |
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output -CEC -EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function Features： •1920 x 1080 video resolution • Support wired and wireless (with WPP30 - not currently available in USA) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| SmartVision 80 | Camera: • PTZ Camera: 20×optical zoom • 69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera) • 110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera) • 51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera) AI Feature: • IntelliFrame • Participant Identification • IntelliFocus • Speaker Tracking • Presenter Tracking • Video Fence • PIP • Auto Framing Interfaces: • 1×USB 3.0 Type-B port • 1×USB 2.0 Type-A port • 2×VCH port(RJ45) • 1×Network Port (RJ45) • 1×HDMI out port • 1×Line in port • 1×Line out port • 1×Reset Button • 1×DC Power Port |
FAQs
What’s included in the Yealink MVC S80-C5U package?
The MVC S80-C5U includes the MCore 4 mini-PC, MTouch Plus touch panel, RoomSensor for occupancy detection, and the SmartVision 80 four-lens intelligent camera. All hardware is preloaded with Windows 11 IoT, Microsoft Teams Rooms App, and Yealink RoomConnect.
What size meeting room is the MVC S80-C5U recommended for?
This solution is designed for large meeting rooms and boardrooms, typically supporting 12+ participants with expanded camera tracking and multiple audio devices.
Does the MVC S80 support AI-powered camera tracking?
Yes, the SmartVision 80 camera includes IntelliFocus, Auto Framing, Presenter Tracking, and Speaker Tracking, powered by onboard AI for professional video experiences.
Can I share content during a Teams call?
Absolutely. The MVC S80-C5U supports both wired (USB-C/HDMI).
Is the system easy to deploy and manage?
Yes. A single CAT5e cable connects the core components, and Yealink’s Device Management Platform enables remote updates, monitoring, and configuration.
