Description

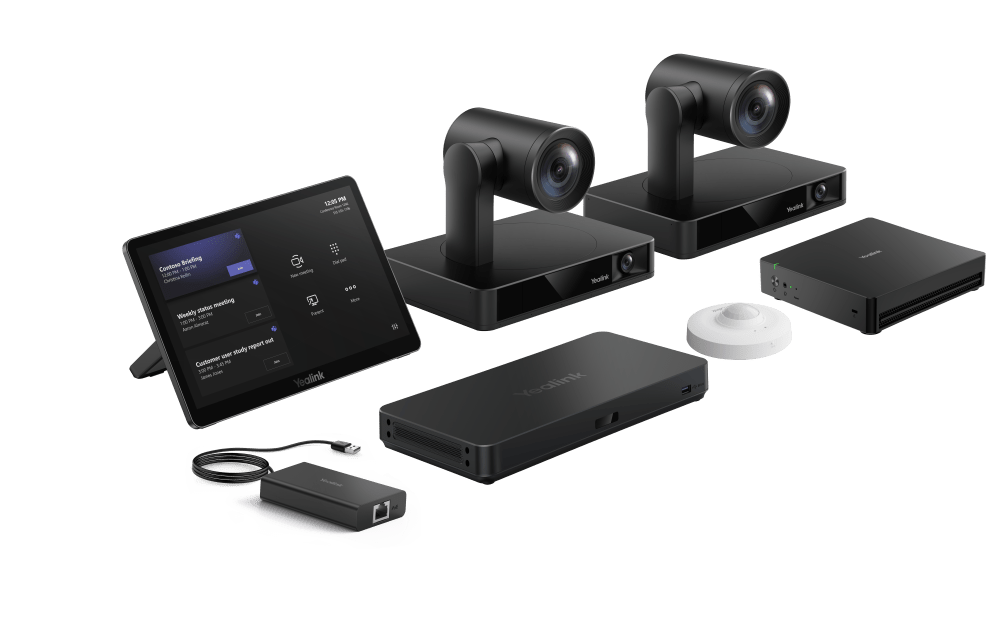

Yealink MVC S90-C5U-004 Teams Room System for Extra-Large Rooms (1106799)
Transform your extra-large meeting spaces into intelligent, Microsoft Teams-optimized collaboration hubs with the Yealink MVC S90-C5U Microsoft Teams Rooms System. Built for enterprise-level performance, this all-in-one solution includes the ultra-powerful MCore 4 mini-PC (Intel Ultra5 125H), dual 4K UVC86 PTZ cameras with AI-powered speaker tracking, the intuitive MTouch Plus touch panel, and Yealink’s AVHub for flexible multi-camera layouts and multi-speaker voice tracking.
With native Microsoft Teams integration, the MVC S90-C5U delivers a seamless meeting experience, while the RoomSensor automatically detects room occupancy and displays live environmental data. Whether wired or wireless (not currently available in USA), content sharing is effortless—boosting productivity for hybrid meetings, training sessions, and executive boardrooms.
Easy deployment via a single CAT5e cable and remote device management make this powerful system ideal for IT teams looking to simplify setup and maintenance.
Key Features:
- Dual 4K AI Cameras with 12x Optical Zoom and Intelligent Tracking
- Powerful MCore 4 Mini-PC with Intel Ultra5 125H Processor
- 11.6” Touch Control Panel with Wired Content Sharing
- AVHub for Multi-Camera Layouts and Voice Tracking
- Native Microsoft Teams Rooms Integration
- Real-Time Environmental Display via RoomSensor
- BYOD Support for Hybrid Room Flexibility
- Remote Monitoring via Yealink Management Platform
Perfect for executive conference rooms, classrooms, training environments, and large enterprise spaces.
Please see the Yealink MVC S90-C5U Datasheet for more information.
Yealink MVC S90-C5U-004 Specifications
| Parameter | Description |
|---|---|
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • UVC86*2 • AVHub • BYOD-Extender |
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output -CEC -EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function Features： •1920 x 1080 video resolution • Support wired and wireless (with WPP30 - not currently available in USA) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| UVC86 USB PTZ Camera | Camera: • 4K Sensor • 20.4 × HD zoom (12x optical, 1.7x digital) • 90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens) • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) • Up to 9 preset positions can be set • Horizontal rotation: 200° • Vertical rotation: 130° AI feature: • Auto-framing • Speaker tracking • Presenter tracking, support area trigger and gesture control • Multi-focus • Picture-in-picture Interfaces: • 1 x HDMI output • 1 x Yealink microphone port(RJ-45) • 1 x USB 3.0 Type-B port • 1 x USB 2.0 Type-A Port • 1 x Power Port • 1 x Security Lock • 1 x Reset Hole |
| AVHub,audio and video processor |
Interfaces: Function Features： |
| BYOD-Extender | Interfaces: • 1.5m USB2.0 Type-A cable • 1 x VCH port (RJ45) Physical Feature: • Operating humidity: 10~95% • Operating temperature: 0~40℃ • Dimension:89mm x 48mm x 17mm |
FAQs
What room size is the Yealink MVC S90-C5U best suited for?
This system is optimized for extra-large conference rooms, training spaces, and executive boardrooms.
Does this system support Microsoft Teams natively?
Yes. It comes preloaded with Microsoft Teams Rooms and offers a fully native Teams interface for easy setup and operation.
Can I connect more than two cameras?
Yes. The included AVHub supports up to 9 Yealink cameras for custom layouts and advanced speaker tracking.
Is content sharing available?
The system supports both wireless (via Yealink dongle - not currently available in USA) and wired (USB-C/HDMI) content sharing options.
How is it powered and connected?
It uses a single CAT5e cable for power and data between the MCore 4 and MTouch Plus, simplifying installation.
Can I manage the system remotely?
Yes. It supports Yealink Device Management Platform and Cloud Service for remote updates, monitoring, and configuration.
