Description
Yealink MVC S98-C5U-004 Teams Room System for Extra-Large Rooms (1106797)

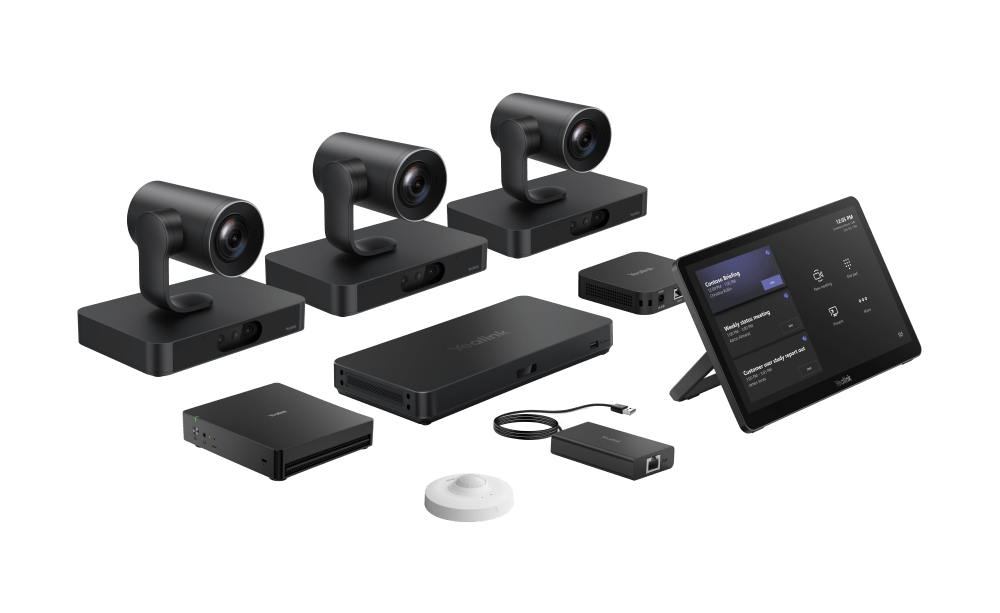

The Yealink MVC S98-C5U is an advanced Microsoft Teams Rooms solution engineered for extra-large meeting spaces, classrooms, and auditoriums. This all-in-one collaboration kit includes the ultra-powerful MCore 4 mini-PC, the intuitive MTouch Plus touchscreen controller, and three SmartVision 80 cameras for seamless multi-angle video coverage.
Equipped with a quad-lens AI-powered camera system (PTZ + 3 e-cams) and AVHub processor, this system enables up to 9 synchronized cameras with speaker tracking, IntelliFocus, and Presenter Auto-Framing. The included RoomSensor and BYOD Extender offer smart occupancy detection and flexible USB connectivity for non-Teams meetings.
Whether you’re deploying in enterprise boardrooms or educational environments, the MVC S98-C5U ensures crystal-clear video, AI-optimized tracking, and simplified room management — all in one plug-and-play package with remote monitoring via Yealink Device Management Platform.
Key Features:
- Includes 3x SmartVision 80 cameras with 20x optical zoom and AI multi-speaker tracking
- MCore 4 powered by Intel Ultra5 125H processor with 16GB DDR5 RAM
- MTouch Plus 11.6” touchscreen for intuitive Teams control & content sharing
- Supports up to 9 Yealink cameras with flexible layout via AVHub
- RoomSensor for occupancy detection, temperature, and humidity display
- BYOD-Extender for plug-and-play non-Teams video conferencing
- Remote device management and diagnostics through Yealink Cloud Platform
Perfect for Teams-certified deployments in extra-large meeting spaces where performance, clarity, and flexibility are mission critical.
Please see the Yealink MVC S98-C5U Datasheet for more information.
Yealink MVC S98-C5U-004 Specifications
| Parameter | Description |
|---|---|
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • SmartVision 80 x 3 • AVHub • RCH40 E2 • BYOD-Extender |
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output -CEC -EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x Reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function Features： •1920 x 1080 video resolution • Support wired and wireless (with WPP30 - not currently available in USA) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| SmartVision 80 | Camera: • PTZ Camera: 20×optical zoom • 69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera) • 110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera) • 51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera) AI Feature: • IntelliFrame • Participant Identification • IntelliFocus • Speaker Tracking • Presenter Tracking • Video Fence • PIP • Auto Framing Interfaces: • 1×USB 3.0 Type-B port • 1×USB 2.0 Type-A port • 2×VCH port(RJ45) • 1×Network Port (RJ45) • 1×HDMI out port • 1×Line in port • 1×Line out port • 1×Reset Button • 1×DC Power Port |
| AVHub,audio and video processor | Interfaces • 2 x USB-A port • 1 x USB-B port • 1 x Codec port • 7 x Yealink VCH port(RJ-45) • 1 x RCA in/out interface • 1 x 6.3mm Line in interface • 1 x 6.3mm Line out interface • 1 x power interface Function Features： • Dividable and merging meeting rooms are supported • Support intelligent multi-speaker tracking |
| RCH40 E2 | Interface&LED: • 4 x 10/100/1000Mbps Port • 1 x LED indicates Power state • 1 x LED indicates PoE Budget Physical Feature: • Multiple deployment method • 90w total PoE Budget(30w per port） • Support standard PoE Supply(802.3af） • Power adapter: PSE 48V 2A • Dimension(WDH）:100mm x 100mm x 23mm • Operating Humidity: 5%-90% |
| BYOD-Extender | Interfaces: • 1.5m USB2.0 Type-A cable • 1 x VCH port (RJ45) Physical Feature: • Operating humidity: 10~95% • Operating temperature: 0~40℃ • Dimension:89mm x 48mm x 17mm |
FAQs
Who is the Yealink MVC S98-C5U designed for?
The MVC S98-C5U is built for extra-large Microsoft Teams Rooms—ideal for enterprise boardrooms, classrooms, training centers, and auditoriums. It’s designed to support complex layouts with multiple cameras, intelligent tracking, and high-performance processing.
What’s included in the MVC S98-C5U package?
- MCore 4 Gen-4 Mini-PC (Intel Ultra5 125H, 16GB RAM, 256GB SSD)
- MTouch Plus 11.6” touch panel controller
- 3x SmartVision 80 AI cameras (with PTZ + 3-lens setup)
- AVHub audio and video processor
- RoomSensor for occupancy & environment data
- RCH40 E2 Gigabit PoE+ switch
- BYOD-Extender for third-party meeting platforms
How many cameras can this system support?
The system includes three SmartVision 80 cameras but can support up to 9 Yealink cameras simultaneously using the AVHub processor, enabling multi-speaker tracking and customizable layouts.
Does this system support Zoom or BYOD meetings?
Yes. The included BYOD-Extender allows USB connectivity to use the system's cameras and microphones with any conferencing platform including Zoom, Webex, or Google Meet.
How is content shared during meetings?
You can share content via HDMI or USB-C from a laptop using the MTouch cable or wirelessly with the optional WPP30 dongle (not currently available in USA) at up to 1080p/30fps resolution.
Can I manage this system remotely?
Yes. Remote monitoring, updates, and troubleshooting are available via Yealink’s Device Management Platform and Cloud Service.
Is the RoomSensor necessary?
The RoomSensor is optional but enhances the system by providing occupancy detection and environmental metrics, visible on the MTouch Plus interface. Great for automation and smart scheduling.
