Description
Looking for a reliable, network-ready amplifier that handles everything from clear paging announcements to great-sounding background music without needing extra modules? The Bogen NQ-A4060-G2 is a compact Gen-2 Nyquist 4-channel power amplifier built for real-world installs.
It gives you 60 watts per channel in 4-channel mode (or up to 120W bridged), flexible outputs for 4-ohm, 8-ohm, 25V, or 70V speakers, and a full set of built-in DSP tools that make tuning easy. Whether you're outfitting a small office, school hallway, retail space, or even a residential multi-room system, this amplifier delivers clean Class D sound, runs cool, and integrates seamlessly with Bogen's Nyquist platform.
Key Features
- 4 channels at 60W each (4-ohm/25V) - or bridge to 120W per pair (8-ohm/70V)
- Built-in advanced DSP with 16-band graphic EQ, 7-band parametric EQ, filters, noise gate, compressor/limiter, and factory loudspeaker presets

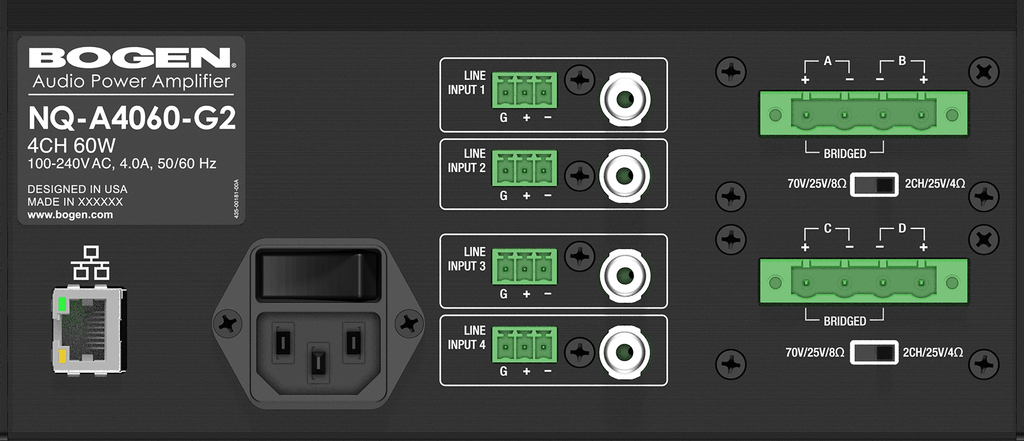

- 4 dedicated balanced line inputs - both Phoenix plug and RCA connectors
- Network audio input for Nyquist paging and audio distribution; line inputs routable over the network
- Flexible outputs: 4-ohm, 8-ohm, 25V, and 70V
- Switch-selectable modes: 4-channel, 3-channel, or 2-channel bridged
- Class D efficiency - cool running, reliable, and energy-smart (up to 89% efficient)
- Compact half-rack 2RU design - wall, shelf, or rack mountable (19" rack kit sold separately)
- Convection cooled - no fans for silent operation
- Safety & compliance - certified for residential use, meets UL/EN 62368-1 and EMC standards
- Standalone SIP endpoint capability for use with existing PBX/VoIP systems
Technical Specifications
- Power Output: 4 x 60W @ 25V/4 ohms (4-channel mode); 2 x 120W @ 70V/25V/8 ohms (bridged)
- Frequency Response: 20 Hz - 20 kHz ±0.5 dB (at rated power)
- Total Harmonic Distortion (THD): < 0.05%
- Signal-to-Noise Ratio: 97 dB (20k BW)
- Inputs: 4 balanced line (Phoenix + RCA)
- Outputs: 4-ohm, 8-ohm, 25V, 70V per channel configuration
- DSP Features: 16-band graphic EQ, 7-band parametric EQ, high/low/bandpass filters, noise gate, compressor/limiter, signal/clip monitor
- Networking: 10/100 RJ45 to Nyquist network (Cat5 or better)
- Power Efficiency: Up to 89% with PFC
- Cooling: Convection (fanless)
- Dimensions: ½ rack width, 2RU height
- Weight: Approximately 6.3 lbs
- Mounting: Wall, shelf, or rack (NQ-RMK03 kit optional)
- Certifications: Residential certified; CAN/CSA 62368-1, EN 62368-1, FCC Part 15 Class B
