Description

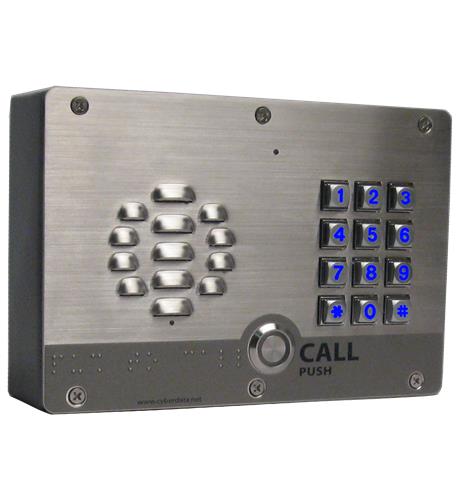

Need reliable outdoor communication and access control without the hassle of extra wiring or weak signals? The CyberData SIP Outdoor Intercom with Keypad (011214) delivers crystal-clear two-way VoIP conversations plus secure entry all in one tough, weatherproof unit. Your facilities team can talk to visitors, employees, or delivery drivers and unlock doors or gates instantly from any desk phone or mobile extension. Perfect for small businesses and enterprises that want simple, dependable outdoor security without ripping up walls or running new cables.
Our Expert Take: Our customers—IT directors and facilities managers—tell us this intercom shines in real-world outdoor spots like loading docks, parking garages, school gates, and warehouse entrances. It runs on standard PoE so you skip power outlets, stays tough from -40°F to 131°F, and gives you full control with a backlit keypad that supports up to 500 user codes. The built-in relay handles door strikes directly, and the echo-canceling audio cuts through wind and noise. It just works with almost any VoIP system (on-prem or cloud), so you get professional-grade access control without the usual headaches or high price tag. If you manage busy outdoor areas and want one device that does it all reliably, this is the one your team will thank you for choosing.
Key Features
- IP65 weatherproof rating – Built to handle rain, dust, snow, and temperature swings so it keeps working outdoors year-round without extra protection in most conditions.
- Backlit 12-key keypad with up to 500 user codes – Employees, contractors, and visitors can enter quickly with programmable codes; security mode lets you blacklist unwanted codes and set time windows.
- Full-duplex audio with acoustic echo cancellation – Conversations sound natural and clear on both ends—no push-to-talk delays or echo even in noisy outdoor spaces.
- Built-in relay for secure door/gate control – One relay (1A @ 30VDC) opens electric strikes or mag locks directly; configurable for any keypad mode plus DTMF control from the phone side.
- Simultaneous SIP registration and multicast paging – Receive pages from Poly phones or standard multicast sources while still ready for intercom calls—no extra setup needed.
- Loud/Night Ringer on second SIP extension – Use it as a ringer or alert device for after-hours or high-noise areas.
- Easy integration – Works with most SIP-based VoIP systems, supports TLS 1.2 security, autoprovisioning, and Cisco SRST resiliency so it fits right into your existing phone setup.
- Tamper and door-status alerts – Get instant notifications if someone tries to tamper with the unit or if the door stays open too long.
Technical Specifications
| Category | Specification |
|---|---|
| Ethernet | 10/100 Mbps |
| Protocol | SIP RFC 3261 compatible |
| Power | PoE 802.3af or +8 to +12VDC @ 1A (power supply not included) |
| Audio Output | Up to 86 dB @ 1 meter (PoE) |
| Relay | 1A @ 30 VDC |
| Codecs | G.711 a-law, G.711 µ-law, G.722, G.729 |
| Network Security | TLS 1.2, SRTP, HTTPS |
| Weather Rating | IP65 |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Humidity | 5-95% non-condensing |
| Dimensions | 7.48" L × 5.12" H × 2.28" W (190 × 130 × 58 mm) |
| Weight | 2.8 lbs (1.27 kg) |
| Compliance | CE, FCC Part 15 Class A, RoHS, TAA Compliant |
| Warranty | 5 years limited |
Comparison at a Glance
- Vs. basic analog intercoms: No VoIP integration, weaker audio, no remote control or user codes—requires separate phone lines and power. The 011214 gives you network-based control and crystal-clear digital audio.
- Vs. non-keypad SIP outdoor intercoms: Lacks secure entry codes and keypad; you can’t grant access without a separate system. This model adds the keypad and relay in one weatherproof package.
- Vs. consumer doorbell cameras: No professional VoIP integration or relay control; limited to app-only access and often needs Wi-Fi. The CyberData unit is built for commercial 24/7 use with your existing business phone system.
Frequently Asked Questions
How tough is this intercom for outdoor use?
It carries an IP65 rating and operates from -40°F to 131°F, so it handles rain, dust, and extreme weather without extra enclosures in most installations.
Does it work with my current VoIP phone system?
Compatible with nearly all SIP-based systems (on-prem or cloud), including support for Poly multicast paging and Cisco SRST.
Can I control a door strike or gate with it?
Absolutely. The built-in relay (1A @ 30VDC) opens electric strikes directly; you can also add CyberData relay modules for higher-power or normally-closed setups.
Do I need a separate power outlet?
No—standard PoE 802.3af powers everything, or you can use a optional 12VDC supply if preferred.
How many access codes can I program?
Up to 500 user codes with configurable time windows and blacklisting for maximum security flexibility.
Is it easy to install and manage?
Yes—web-based configuration, autoprovisioning, HTTPS security, and simple mounting options make setup fast for any IT or facilities team.
