Description

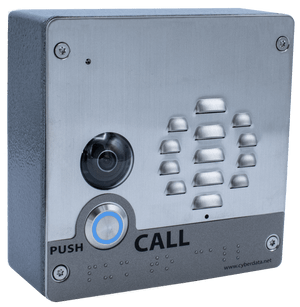

If your facility needs reliable visitor communication and secure access at outdoor entry points, the CyberData 011410 delivers. This SIP-enabled video intercom integrates with your VoIP phone system to provide clear, full-duplex two-way audio and live H.264 video. The built-in dry contact relay lets you control doors and gates right from your desk phone or mobile app. Built tough with IP65 rating and vandal-resistant design, it’s ready for rain, dust, and daily use.
Our Expert Take: Customers choose the CyberData 011410 when they need dependable video intercom performance without the hassle. Its PoE support means simple wiring, while the adjustable camera and built-in relay deliver practical security that fits real-world needs like loading docks, employee entrances, and perimeter gates. With strong echo cancellation and broad compatibility, it helps your team respond faster and keep unauthorized visitors out more effectively. The conformal-coated electronics and 5-year warranty make it a long-term investment in peace of mind for small businesses and enterprises alike.
Key Features
- Full duplex audio with enhanced acoustic echo cancelling for natural conversations even in noisy outdoor settings
- H.264 video at 320×240 resolution with 72° lens and 30° mechanical adjustment for precise visitor viewing
- DTMF-controlled dry relay contact (1A @ 30 VDC) to trigger electric door strikes or gates directly from any SIP phone
- IP65 weatherproof and vandal-resistant enclosure built to survive harsh elements and potential tampering
- PoE 802.3af compliant for easy single-cable installation
- Simultaneous SIP and multicast support plus loud/night ringer function for flexible paging and alerts
- TLS 1.2 enhanced security, autoprovisioning, and web-based configuration for secure local or cloud deployments
- Door closure and tamper alert signals plus network volume control for complete monitoring and customization
Technical Specifications
- Ethernet I/F: 10/100 Mbps
- Protocol: SIP RFC 3261 compatible
- Power Input: PoE 802.3af or +8 to +12VDC @ 1000mA (regulated power supply not included)
- Audio Output (Max): 86dB @ 1 meter (PoE)
- Power Rating (Max): 5 Watts (PoE)
- On-Board Relay: 1A @ 30 VDC
- Payload Types: G.711 a-law, G.711 μ-law, G.722, G.729
- Video Codec: H.264 Baseline
- Camera Resolution: 320 × 240
- Video Lens Angle: 72 degrees with 30-degree mechanical adjustment
- Network Security: TLS 1.2
- IP Rating: IP65
- Operating Range: Temperature −40°C to 55°C (−40°F to 131°F); Humidity 5-95% non-condensing
- Dimensions: 5.118 in × 2.252 in × 5.118 in (130 mm × 57.21 mm × 130 mm)
- Weight: 2.0 lbs (0.90 kg)
- Warranty: 5 years limited
- Electronics are conformal coated for environmental protection
FAQ
Q: How does the door control feature work on the CyberData 011410?
A: Use DTMF tones from your SIP phone to activate the built-in dry contact relay that triggers electric door strikes or gates.
Q: What video quality does the CyberData 011410 provide?
A: It delivers H.264 video at 320×240 resolution with a 72° lens you can mechanically adjust 30° for the best view of your entry point.
Q: Is the CyberData 011410 suitable for outdoor use?
A: Yes—its IP65 rating, conformal-coated electronics, and wide operating temperature range (−40°F to 131°F) make it ideal for weather-exposed locations. Pair with the Cyberdata Shroud.
Q: What power options does it support?
A: Standard PoE 802.3af or an optional +8 to +12VDC regulated power supply (not included).
Q: Will the CyberData 011410 work with my existing VoIP system?
A: It’s SIP RFC 3261 compatible with most on-premise and cloud-based VoIP systems, SBCs, and gateways.
Q: Does it support paging or night ringer functions?
A: Yes, it handles simultaneous SIP and multicast paging plus a loud/night ringer on a second SIP extension.
