Description

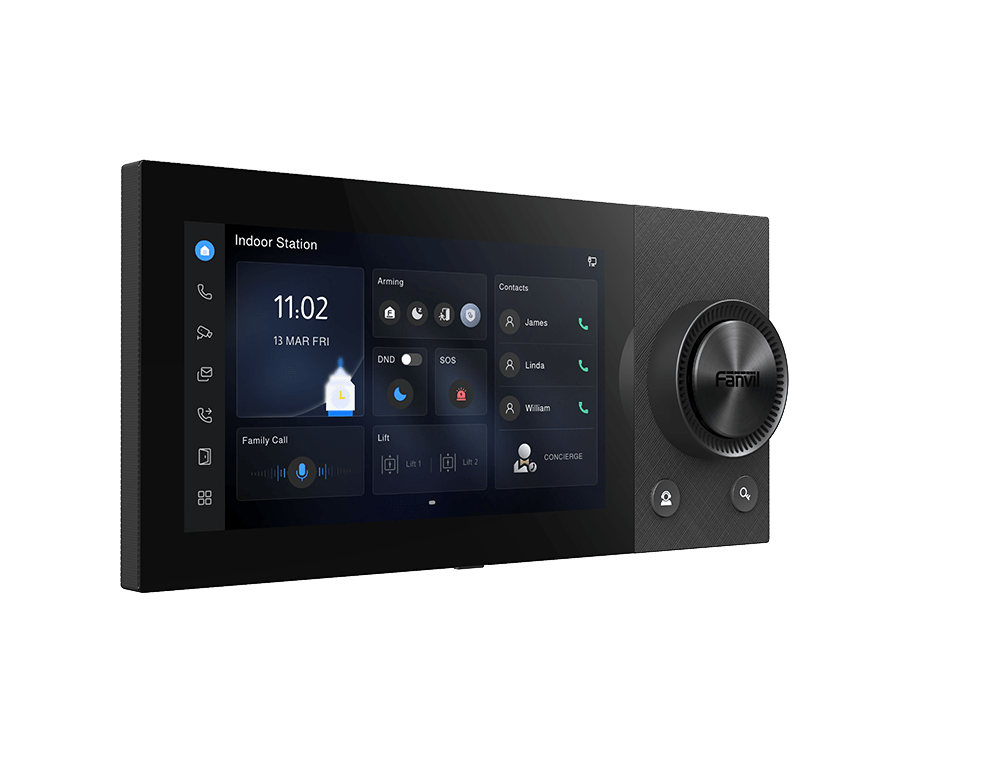

The Fanvil i564W SIP Indoor Station puts professional video intercom and access control right at your fingertips. This sleek 7-inch color touchscreen unit combines a brand-new intuitive UI/UX with a tactile rotary volume knob, HD audio, and one-touch family calling for instant crystal-clear communication. Built for convenience and security, it delivers a smart living experience that’s ideal for mid-to-high-end residences, villas, and commercial offices.
The Telecom Spot Take
The Fanvil i564W's Wi-Fi 6 support makes it perfect for retrofit projects or new builds, while the 5W multimedia speaker with intelligent noise reduction and AEC ensures every call sounds professional. The physical knob and shortcut buttons give even kids or elderly users effortless control. Whether you’re managing a villa, multi-unit building, or small office, this station delivers secure remote unlocking, room-to-room broadcast, and alarm integration—all in a minimalist gunmetal-gray design that blends into any space.
Key Features

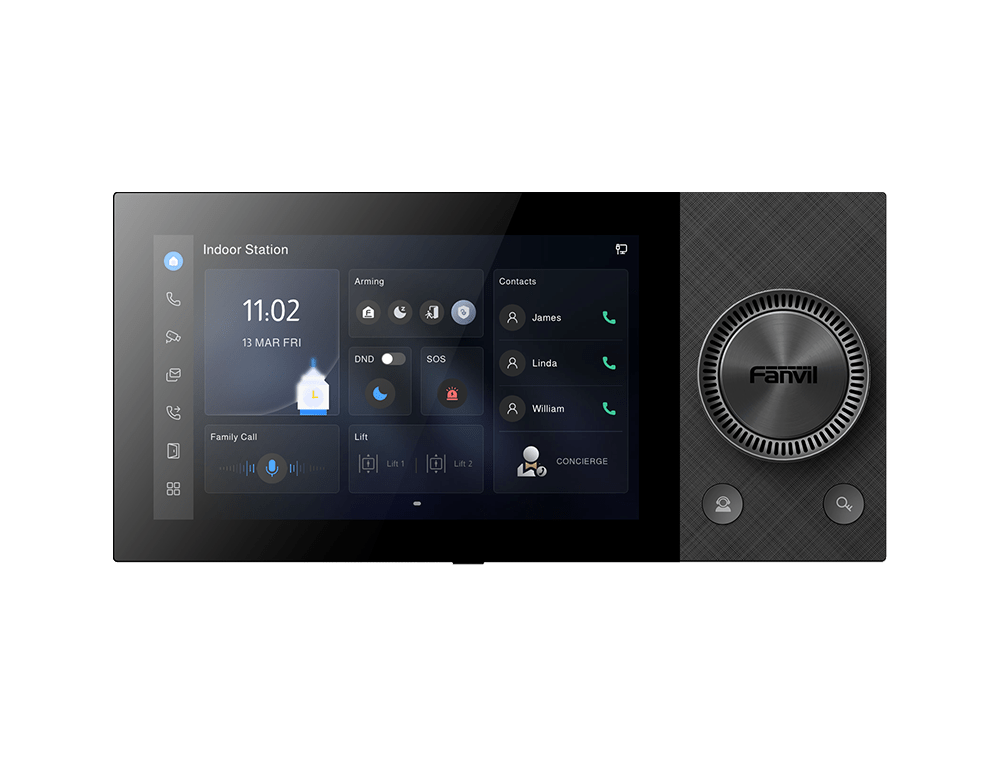

- 7-inch IPS capacitive touchscreen (1024×600 resolution) – Crisp, responsive display makes navigation and video viewing effortless for daily use.
- Wi-Fi 6 connectivity (2.4 GHz) – Wire-free installation for faster setup in hard-to-wire locations while maintaining stable SIP performance.
- Tactile rotary volume knob + 2 shortcut buttons – Premium feel and one-handed operation that’s intuitive for every member of your team or household.
- HD audio with 5W multimedia speaker and AEC – Full-duplex hands-free calls with intelligent noise reduction and up to 5-meter pickup range for clear 360° communication.
- One-touch family call & whole-home broadcast – Instant room-to-room communication at the press of a button—perfect for quick coordination.
- Secure access control integration – Remote door unlocking, BLE button support (i564W only), plus 8 alarm inputs and relay output for comprehensive monitoring.
- Flexible power & mounting – Supports PoE 802.3af or 12V DC; wall-mounts on standard CN/US/EU boxes or desktop stand (sold separately).
Technical Specifications
| Category | Details |
|---|---|
| Display | 7-inch IPS color capacitive touchscreen, 1024×600 resolution |
| Casing & Color | ABS, Gunmetal gray |
| Physical Controls | 1 rotary knob, 2 shortcut function buttons |
| Audio | 5W multimedia speaker, Acoustic Echo Cancellation (AEC), full-duplex hands-free |
| Network | Wi-Fi 6 (IEEE 802.11b/g/n/ax, 2.4 GHz only – i564W), 2× RJ45 10/100 Mbps Ethernet |
| Bluetooth | BLE for button connectivity (i564W only) |
| Interfaces | 8 alarm inputs, 1 short-circuit output (relay), 1 doorbell input, 1 RS-485, TF card slot (up to 128 GB) |
| Protocols | SIP 2.0 over UDP/TCP/TLS |
| Audio Codecs | Narrowband: G.711a/u, G.723.1, G.726 (16/24/32/40 kbps), G.729AB, iLBC Wideband: G.722, Opus |
| Video | H.264, H.265 (optional); supports QVGA, CIF, VGA, 4CIF, 720p, 1080p |
| Power Supply | 12V DC / 2A or PoE 802.3af |
| Operating Temp | −10°C to +50°C |
| Dimensions | 245.6 × 117.0 × 11.0 mm (L×W×H) |

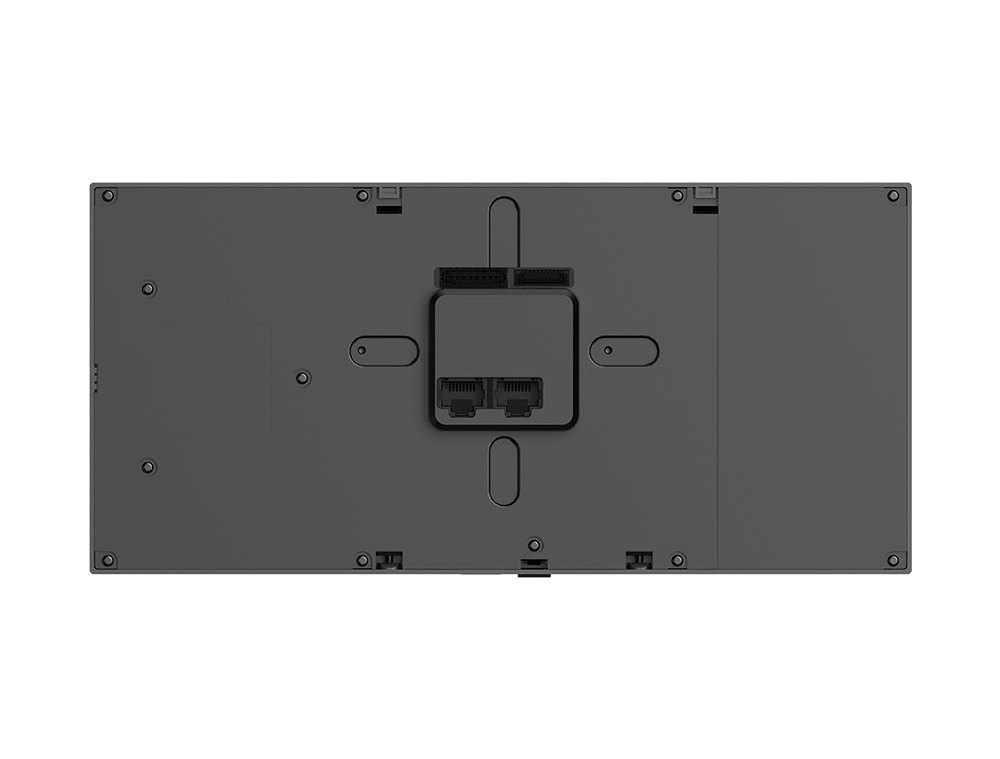

| Installation | Wall mounting (CN, US, EU electrical boxes); desktop stand DS106 sold separately |
