Description

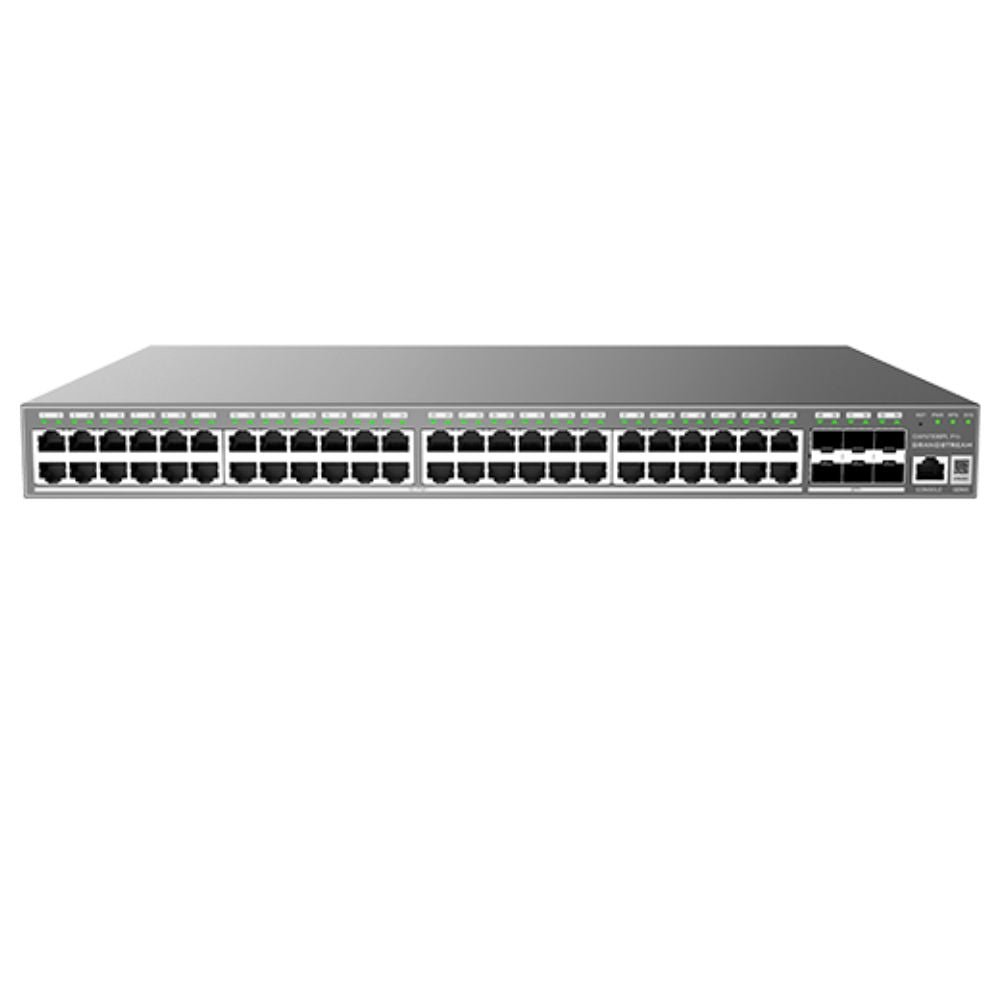

If you’re building or expanding a reliable network for your small-to-medium business and want plenty of power without overspending, the Grandstream GWN7806PL Pro is a smart, future-ready choice. This Layer 2++ managed switch gives you 48 Gigabit PoE+ ports with a solid 400W total budget—enough to comfortably run dozens of IP phones, Wi-Fi access points, security cameras, and other PoE devices. Six built-in 10G SFP+ uplinks keep your backbone lightning-fast for video calls, cloud apps, and large file transfers.
The Telecom Spot Expert Review
The GWN7806PL Pro is our top recommendation when you have 20–40 PoE devices but don’t need the ultra-high 60W-per-port output of the bigger PH model. The 400W budget feels generous in the real world thanks to smart dynamic allocation and priority settings.
What we love:
- Every one of the 48 ports delivers true PoE+ (up to 30W) with no guesswork.
- Full 10G SFP+ uplinks + stacking up to 8 units makes scaling simple and cost-effective.
- Free lifetime GDMS cloud management means you can monitor everything from your phone.
Pro setup tip from our team: When mixing Yealink phones, Grandstream APs, and IP cameras, turn on LLDP-MED and set port priorities in the WebUI. It takes about 10 minutes and automatically protects your critical devices if you ever get close to the 400W ceiling.
Key Features
- 48 Gigabit PoE+ Ports – Every port supports up to 30W (IEEE 802.3af/at) with smart dynamic power allocation.
- 400W Total PoE Budget – Powers dozens of phones, cameras, and access points at full strength.
- 6x 10Gigabit SFP+ Uplinks – Future-proof fiber or DAC connections for ultra-fast backbone links.
- Layer 2++ Capabilities – Advanced VLANs (4K), QoS, IGMP/MLD snooping, ACLs, and static routing.
- Stacking Support – Manage up to 8 switches as one logical device for simple growth.
- Flexible Management – Free GDMS cloud, embedded WebUI controller, GWN Manager, or CLI.
- Enterprise Security – 802.1X, ARP inspection, DoS protection, port security, and more.
- Built for Reliability – Dual-core CPU, redundant power support, surge protection, and smart fan control.
Comparison to Similar Models
Here’s how the GWN7806PL Pro stacks up (all specs verified from Grandstream datasheets):
| Model | PoE Ports | PoE Budget | Uplinks | Switching Capacity | Stacking | Best For |
|---|---|---|---|---|---|---|
| GWN7806PL Pro (this one) | 48 PoE+ | 400W | 6× 10G SFP+ | 216 Gbps | Up to 8 | Balanced power + speed SMBs |
| Grandstream GWN7806PH Pro | 48 PoE++ | 720W | 6× 10G SFP+ | 216 Gbps | Up to 8 | High-power devices (PTZ cams) |
| Grandstream GWN7806P (non-Pro) | 48 PoE+ | 400W | 6× 10G SFP+ | 216 Gbps | Up to 4 | Budget 48-port deployments |
| Ubiquiti USW-Pro-48-PoE | 48 PoE+ | 600W | 4× 10G SFP+ | 176 Gbps | No | UniFi ecosystem users |
Pick the GWN7806PL Pro when you want the perfect mix of power, speed, and value—especially if you’re already using Grandstream phones or APs.
Technical Specifications
- Ports: 48 × 10/100/1000 Mbps PoE+ RJ45 + 6 × 10G SFP+
- PoE: IEEE 802.3af/at, 30W per port max, 400W total budget
- Switching Capacity: 216 Gbps
- Non-blocking Throughput: 108 Gbps
- Forwarding Rate: 160.704 Mpps
- MAC Address Table: 32K
- VLANs: 4K (port-based, 802.1Q, MAC-based, Voice, QinQ)
- Management: WebUI, GDMS Cloud, GWN Manager, CLI
- Power: 100-240V AC, supports 1+1 external RPS (460W)
- Dimensions: 440 × 300 × 44 mm (1U rack-mount)
- Weight: ~5.3 kg
- Operating Temp: 0°C to 45°C
- Warranty: 3 years
