Description

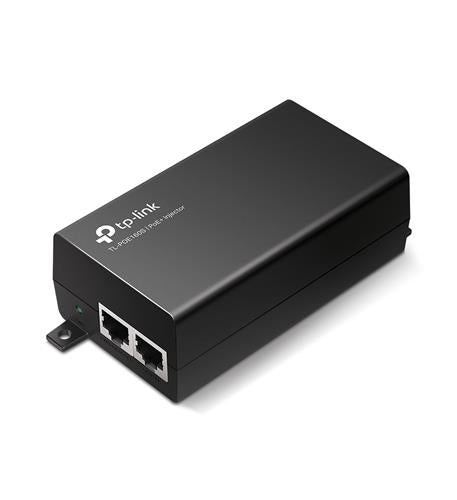

Running network cables is easy—running power cables to every device isn’t. The TP-Link POE160S PoE+ Injector fixes that headache instantly. Just plug your existing Ethernet cable into this compact unit and it adds up to 30W of power while keeping full Gigabit speeds.
Perfect for IP phones, wireless access points, security cameras, or any PoE device in offices, warehouses, or remote spots where outlets are scarce.
Key Features
- 2 Gigabit Ports – 10/100/1000Mbps Data In + Power + Data Out for full-speed transmission
- 30W PoE+ Output – Complies with IEEE 802.3af/at standards; auto-senses and delivers exact power needed
- Single-Cable Solution – Combines data and power over one Ethernet run up to 100 meters
- Plug & Play – No configuration required; works immediately with any PoE-compliant device
- Flexible Mounting – Desktop or wall-mount with integrated power supply
- Safe & Reliable – Over-current, short-circuit, and over-voltage protection plus auto power detection
Technical Specifications
- Model: POE160S (TL-POE160S)
- Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at
- Ports: 1× 10/100/1000Mbps RJ45 Data In, 1× 10/100/1000Mbps RJ45 Power + Data Out, 1× AC socket
- PoE Power: Up to 30W (auto-determined)
- Power Input: 100-240V, 50/60 Hz
- Cable Support: Cat3/Cat5/Cat5e/Cat6 up to 100m
- Dimensions: 4.9 × 2.3 × 1.4 in (125 × 59.4 × 36.8 mm)
- Mounting Distance: 115.7 mm vertical, 37.7 mm horizontal
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Certifications: FCC, CE, RoHS
