Description

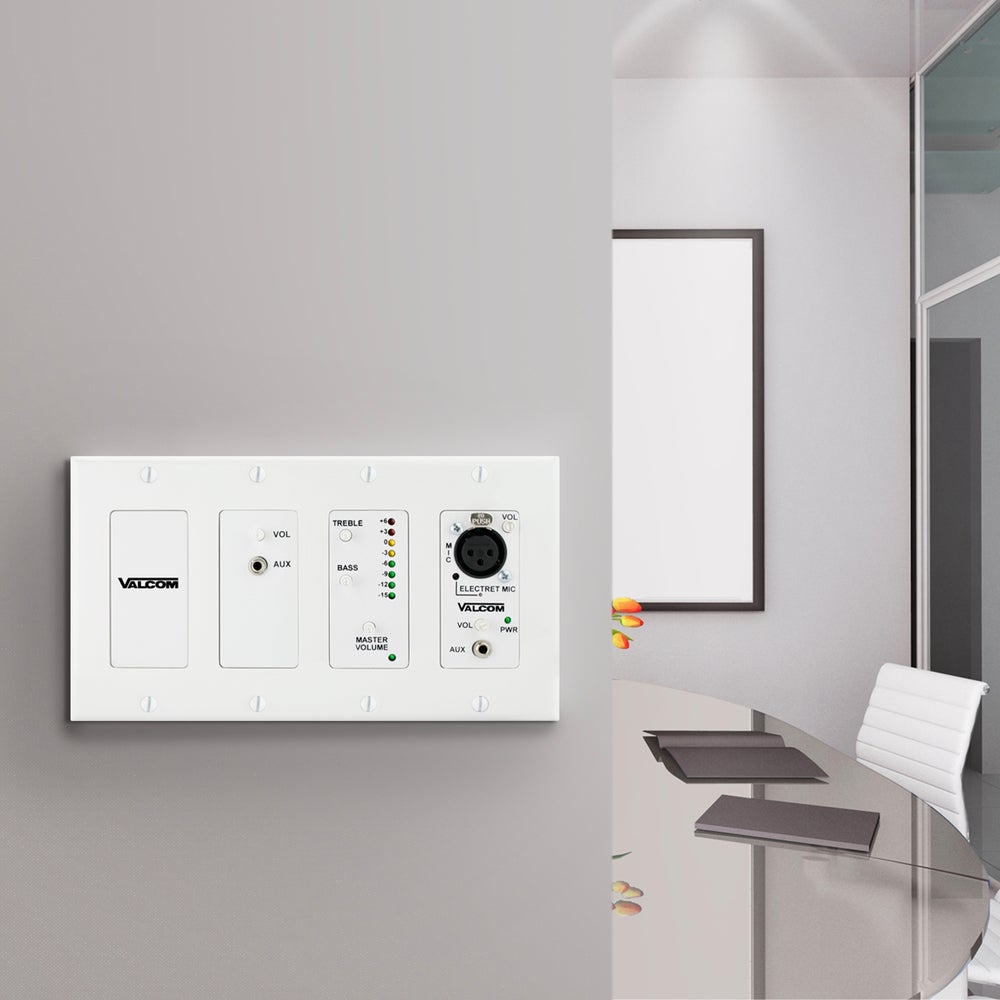

The Valcom V-9985-W is an in-wall mixer and paging control module in white that provides active mixing for one balanced microphone input and two auxiliary line inputs, with a dedicated building page override input that mutes all other sources when a page is initiated. Up to three V-9984 remote input modules can be connected to this main control via two-pair structured cable, each adding an additional balanced microphone and auxiliary input at a remote location. An 8-segment LED meter displays real-time audio levels, and a master volume control sets the final output level for speakers and downstream equipment. The unit mounts in a 4-gang deep electrical box and ships with a white 4-gang decorator faceplate.
The Telecom Spot Expert Review
The V-9985-W is the main control hub in a multi-source distributed paging and music system — think conference room complexes, hotel lobbies, or restaurant group dining spaces where multiple microphone inputs, music sources, and paging priority need to coexist in a single panel. The building page override is particularly important: it ensures that emergency or priority announcements immediately cut through whatever music or ambient audio is playing without any manual switching by staff. The remote module expansion via structured cable means the main mixer can live in the equipment room while remote microphone stations are placed at reception desks, supervisor stations, or entrance points wherever access is needed.
Key Features
- In-wall active mixer with 1 balanced mic input and 2 auxiliary inputs
- Building page override input — VOX or switch-activated, mutes all other sources
- Expands with up to 3 V-9984 remote modules via 2-pair structured cable
- Each remote module adds 1 balanced mic and 1 auxiliary input
- 8-segment LED meter for real-time audio level monitoring
- Master volume control for final output adjustment
- Full frequency range output for speakers and downstream equipment
- Mounts in 4-gang deep electrical box
- White 4-gang decorator faceplate included
Technical Specifications
| Microphone Inputs | 1 balanced (+ up to 3 via V-9984 remote modules) |
| Auxiliary Inputs | 2 (+ up to 3 via V-9984 remote modules) |
| Override Input | Building page (VOX or switch-activated) |
| Remote Modules | Up to 3 V-9984, via 2-pair structured cable |
| Level Metering | 8-segment LED |
| Enclosure | 4-gang deep electrical box |
| Faceplate | White 4-gang decorator style, included |
