Description

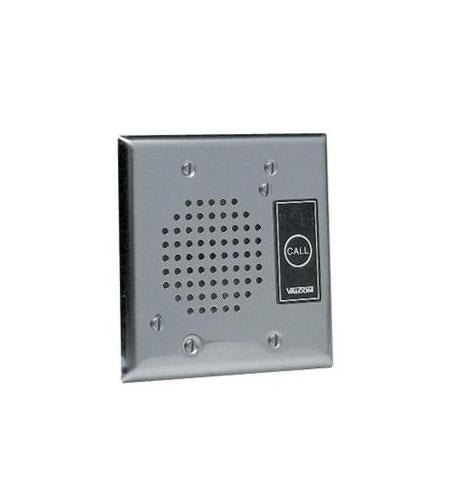

The Valcom VIP-172AL-ST is a flush-mount stainless steel IP door intercom that connects to SIP-based telephone systems and Valcom IP gateways over a standard Ethernet cable, enabling two-way voice communication at entryways without dedicated intercom wiring. The built-in long-line extender supports cable runs up to 300 meters (984 feet), allowing the unit to be installed far from the nearest network switch without signal degradation. A call button triggers any SIP address or Valcom gateway, automatic VOX talkback activates hands-free conversation, and an integrated relay controls door or gate hardware. The stainless steel faceplate is weather-resistant and tamper-proof for demanding outdoor deployments.
The Telecom Spot Expert Review
The 300-meter long-line extender built into the VIP-172AL-ST is the critical differentiator from standard PoE door intercoms. Standard PoE is limited to 100 meters — a distance easily exceeded at building perimeters, parking structures, or remote loading dock entrances where running fiber or additional switches is expensive. This unit extends that reach threefold over standard Cat 5/6 cable, which can be the deciding factor between a clean single-cable installation and a costly infrastructure upgrade. The flush-mount stainless steel profile also makes it the right choice for high-security or high-traffic entry points where a surface-mount plastic enclosure would be damaged or pried off.
Key Features
- SIP door intercom with door and gate relay
- Long-line extender built in — up to 300 meters (984 ft) cable run
- Flush mount, stainless steel, weather-resistant, tamper-proof
- Compatible with Cisco, Nortel, Avaya, and most SIP telephone systems
- Call button triggers any SIP address or Valcom gateway
- Automatic VOX talkback for hands-free operation
- Door ajar notification feature
- Peer-to-peer or many-to-one operation — no server required
- DHCP, web-based firmware upgrades, web interface for setup
- SIP or multicast softphone addressable
- Companion to IP CCTV cameras
Technical Specifications
| Power | PoE 802.3af (48V DC) |
| Cable Run | Up to 300 m (984 ft) Cat 5/6 |
| Network | RJ-45, LAN/WAN 10/100, DHCP |
| Protocol | SIP or multicast |
| Relay | Door/gate control |
| Operation | Peer-to-peer, no server required |
| Construction | Stainless steel, weather-resistant, tamper-proof |
| Mount | Flush mount |
