Description

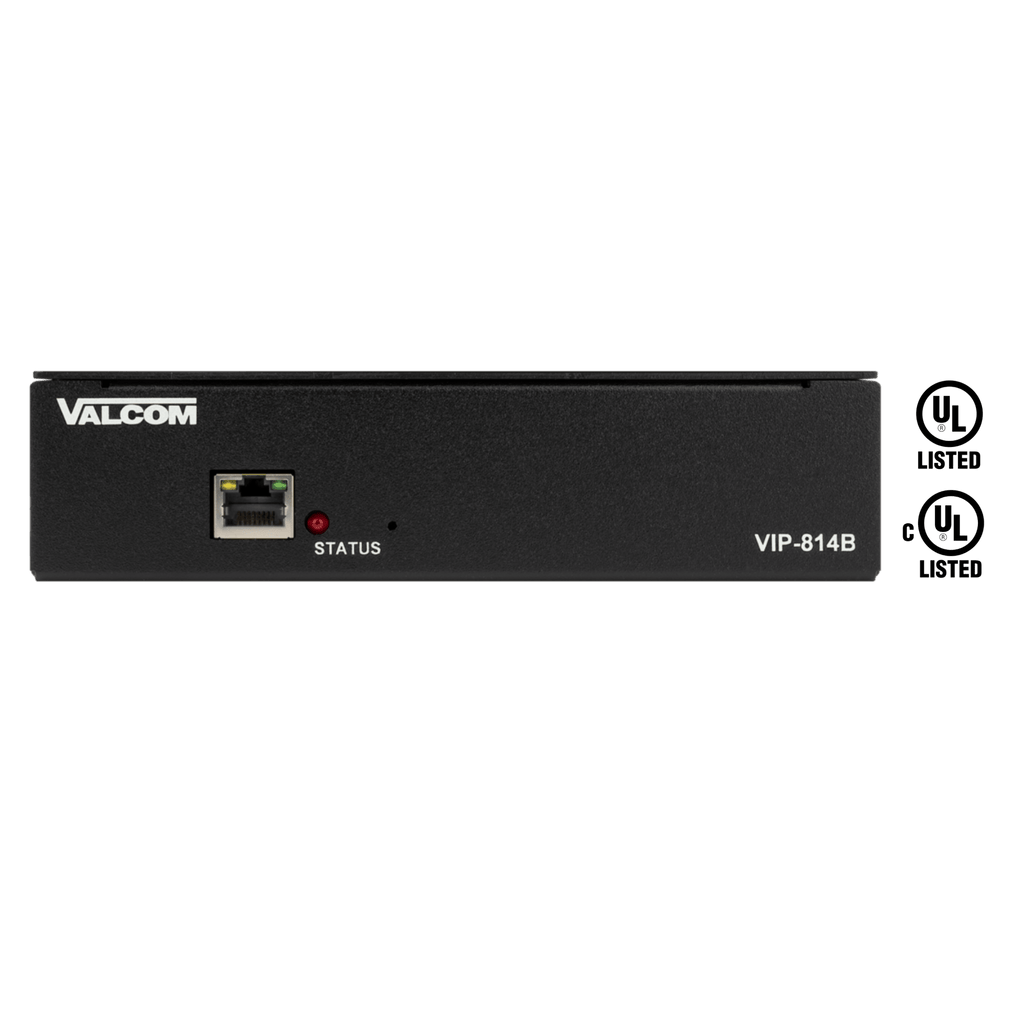

Control four independent IP paging zones from a single PoE device with the VIP-814B, a quad-zone enhanced network station port supporting two-way communication, DTMF zone selection, and programmable relay contacts for door and alert control.
The Telecom Spot Expert Review
The VIP-814B is the quad-zone version of Valcom's IP station port series — four RJ-11 FXS ports, four programmable Form C relay contacts, and support for up to 1,024 zones and groups via DTMF dial selection. PoE 802.3af Class 3 powers the unit, but a local 24VDC supply can be used as an alternative. Peer-to-peer operation and Windows-based setup keep deployment straightforward. Two-way transmit and receive makes it suitable for full intercom as well as one-way paging.
Key Features
- 4 RJ-11 FXS ports for four independent zones
- 4 programmable Form C relay contacts for door unlock, alert, and control
- DTMF dial select — up to 1,024 zones and groups
- 1 to 11 digit dial plans
- Two-way transmit/receive for full intercom capability
- PoE 802.3af Class 3, or local 24VDC power
- Peer-to-peer operation — no server required
- Point-to-point, zones, groups, and all-call modes
- UDP multicast supported
- Windows-based setup software
Technical Specifications
| Model | VIP-814B |
|---|---|
| FXS Ports | 4 |
| Relay Contacts | 4 x Programmable Form C |
| Zone Capacity | Up to 1,024 (DTMF) |
| Dial Plans | 1 to 11 Digits |
| Power | PoE 802.3af Class 3, or 24VDC Local |
| Protocol | SIP, UDP Multicast |
| Mode | Two-Way (Transmit / Receive) |
| Network | RJ-45, 10/100 |
