Description

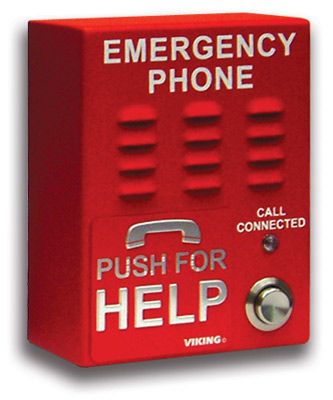

When seconds count, you need an emergency phone that just works — no buttons to hunt for, no dead batteries, and crystal-clear sound even in noisy spots. The Viking E-1600-IP is a tough, bright-red VoIP emergency phone built for real-world safety in elevators, parking ramps, campuses, pools, and public buildings.
It connects directly to your SIP VoIP system using Power over Ethernet (PoE), so there’s no extra power outlet needed. Push the big red button and it automatically dials up to five emergency numbers while playing a pre-recorded message that tells responders exactly where the call is coming from. The “Call Connected” LED lights up to give peace of mind, and it meets strict ADA requirements so everyone can use it easily.
Our Expert Take: If you run a facility with public access areas, this phone helps you meet safety codes without headaches. Setup is straightforward with Viking’s free programming software, but our team is here if you want us to handle the SIP registration or custom location messages for you. It’s a true “set it and forget it” solution that keeps working year after year.
If you need weather protection, step up to the EWP version. For a more discreet look, the stainless models work well in lobbies.
Key Features
- Handsfree VoIP Calling — Just press the big red button and talk. No handset required.
- Automatic Location Announcement — Plays a 28-second custom message so responders know exactly where help is needed.
- ADA Compliant — Lights up the “Call Connected” LED, includes Grade 2 Braille, and sends location ID automatically.
- PoE Powered — Class 1 PoE (<4 watts) means easy installation using your existing network cable.
- Noise Canceling — Automatic Noise Canceling (ANC) cuts background noise for clear conversations.
- Up to 5 Emergency Numbers — Dials primary and backup numbers if the first line is busy or doesn’t answer.
- Built-in Relay — 2-amp contacts to control a strobe light, door release, or other device.
- Tough & Visible — Heavy-duty 16-gauge steel with textured red powder coat finish.
- Easy Programming — Use the included software from a PC on the same LAN, a touch-tone phone, or remotely.
- Wide Temperature Range — Works from -40°F to 140°F, perfect for indoor extremes.
Technical Specifications
- Power: PoE IEEE 802.3af Class 1 (< 4 Watts)
- Dimensions: 5.25″ H x 4.0″ W x 2.0″ D (133mm x 102mm x 51mm)
- Shipping Weight: 2.5 lbs (1.13 kg)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Material: 16-gauge steel with textured red powder paint
- Maximum Sound Pressure: 90 dB SPL @ 1 meter
- Relay: SPDT 2A @ 30VDC / 1A @ 125VAC
- Audio Codecs: G711u, G711a, G722
- Network: 10/100 Base-T Ethernet with auto crossover, SIP 2.0 compliant
- Mounting: Surface mount (walls, posts, single-gang or 4x4 boxes) or recess mount in elevator boxes
- Connections: 1x RJ45 + 3x gel-filled butt connectors
- Compliance: ADA, CE, FCC Part 15, Canada ICES, SIP
