Description

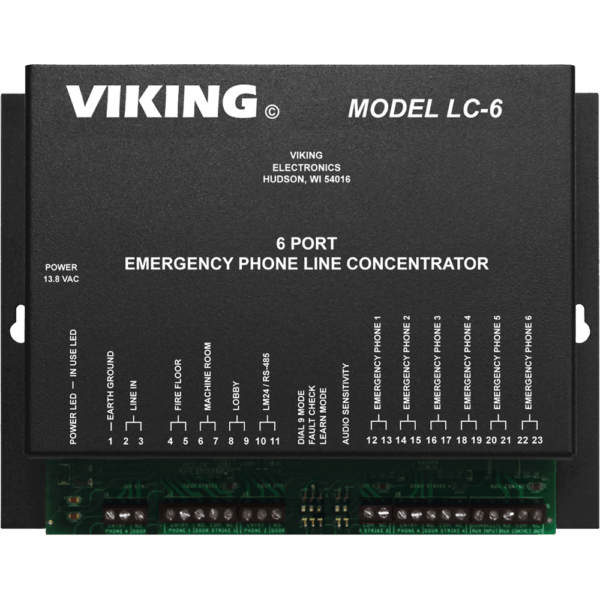

Paying for a dedicated phone line in every elevator cab adds up fast. The Viking LC-6 Line Concentrator connects up to six E-1600A series emergency phones to a single telephone line, cutting your monthly line costs while keeping every phone fully functional and code-compliant.
The LC-6 handles call routing automatically — when an emergency phone is picked up, the call goes out over the shared line. Authorized personnel inside the building can communicate on up to three additional phones, and an external line connection allows calls outside the building when needed. Any phone connected can initiate a call to any other, internally or externally.
Our Expert Take: The LC-6 is the right fit for buildings with two to six elevator cabs or emergency phone stations. For a single phone, the LV-1K line verification panel is sufficient. For up to eight phones, the LC-8 scales further. Pair with Viking E-1600A series phones for a complete ASME A17.1-compliant elevator emergency communication system.
Key Features
- Connects up to 6 Viking E-1600A series emergency phones to a single telephone line
- Eliminates the need for individual dedicated lines at each elevator cab
- Supports up to 3 internal authorized monitoring phones
- Optional external telephone line connection for outside calls
- Automatic call routing — no manual switching required
- Any connected phone can initiate calls internally or externally
- Meets ASME A17.1 elevator code when paired with LV-1K Line Verification Panel
Technical Specifications
- Emergency Phone Ports: Up to 6 (Viking E-1600A series)
- Internal Monitor Phones: Up to 3
- External Line: Optional C.O. line connection
- Code Compliance: ASME A17.1 (with LV-1K)
