Description

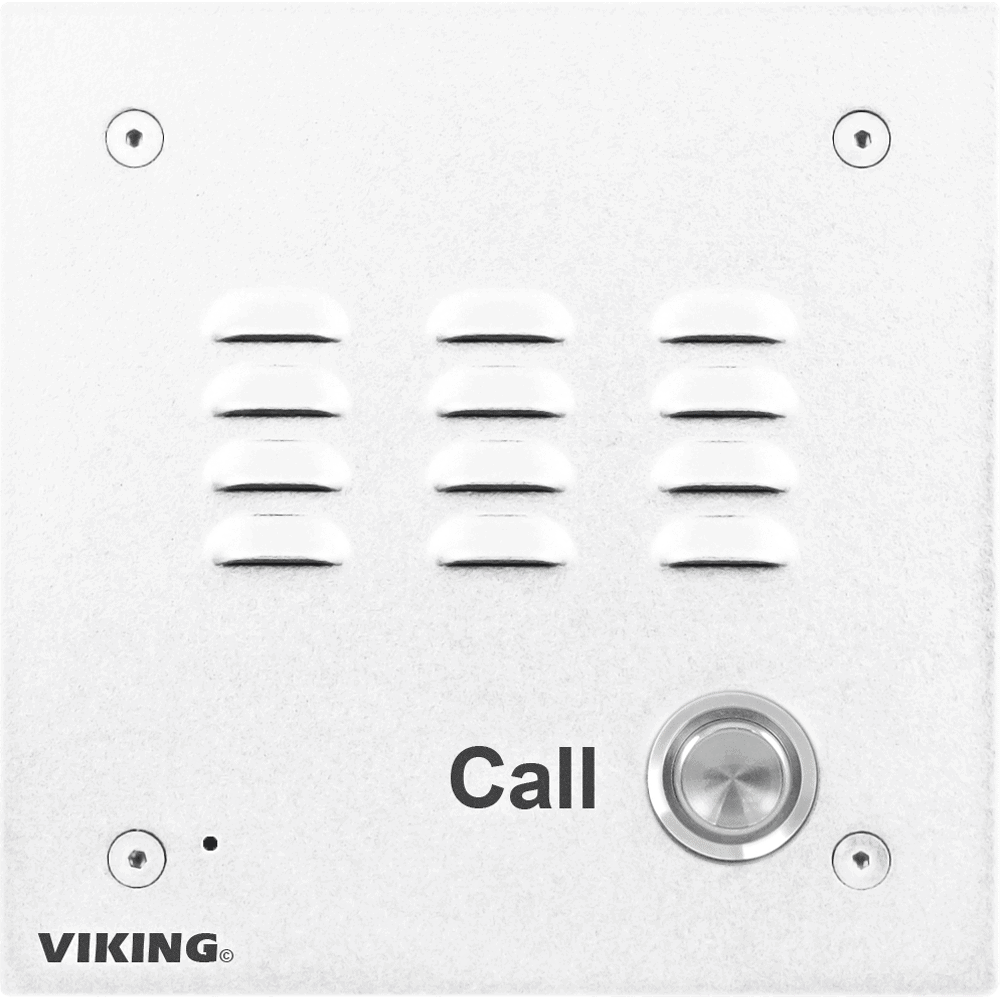

Tired of complicated door entry systems? The Viking E-10-WHA is a straightforward, line-powered handsfree entry phone that lets visitors call you from the front door, gate, or delivery entrance with the push of a button.
It works on any standard analog phone line or analog PBX station port—no extra power supply needed. Press the sturdy stainless steel call button once to connect, press again to cancel. Built tough with a clean white powder-coated aluminum faceplate, this unit handles everyday residential and light commercial use with clear two-way communication and smart automatic hang-up features.
Whether you’re at a small business, home, or warehouse loading dock, the E-10-WHA makes it easy and affordable to know who’s there before you open the door.
Our Expert Take: Great choice for residential front doors, small office back entrances, or gated properties where you just need basic two-way talk without video or fancy features. If your install will be fully exposed to rain or heavy moisture, step up to the E-10-WHA-EWP version with enhanced weather protection.
Key Features
- Alternate-action call button – press once to call, press again to cancel
- Two-way handsfree communication with adjustable mic and speaker volume
- Intelligent automatic hang-up on CPC, silence, busy signal, or programmable timeout
- Selectable auto-answer mode for remote monitoring
- Programmable maximum call length and VOX (voice switching) speed
- Telephone line powered – no separate power supply required
- Vandal-resistant white powder painted aluminum faceplate with heavy-duty 316 stainless steel call button
- Includes rough-in box for easy flush mounting
- Surface mount option available with VE-5×5 box (sold separately)
- Wide operating temperature range: -30°F to 150°F
Technical Specifications
- Power: Telephone line powered (18VDC / 20mA minimum)
- REN: 0.8A
- Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57.2mm)
- Rough-In Box: 4″ x 4″ x 2.15″ (included)
- Shipping Weight: 2 lbs (0.91 kg)
- Operating Temperature: -30°F to 150°F (-34°C to 65°C)
- Humidity: 5% to 95% non-condensing
- Max Speaker Volume: 70dB SPL @ 1m
- Ring Voltage: 25VRMS minimum
- Minimum CPC Disconnect: 300ms
- Connections: Two gel-filled butt connectors
- Certifications: FCC Part 68, FCC Part 15
