Description

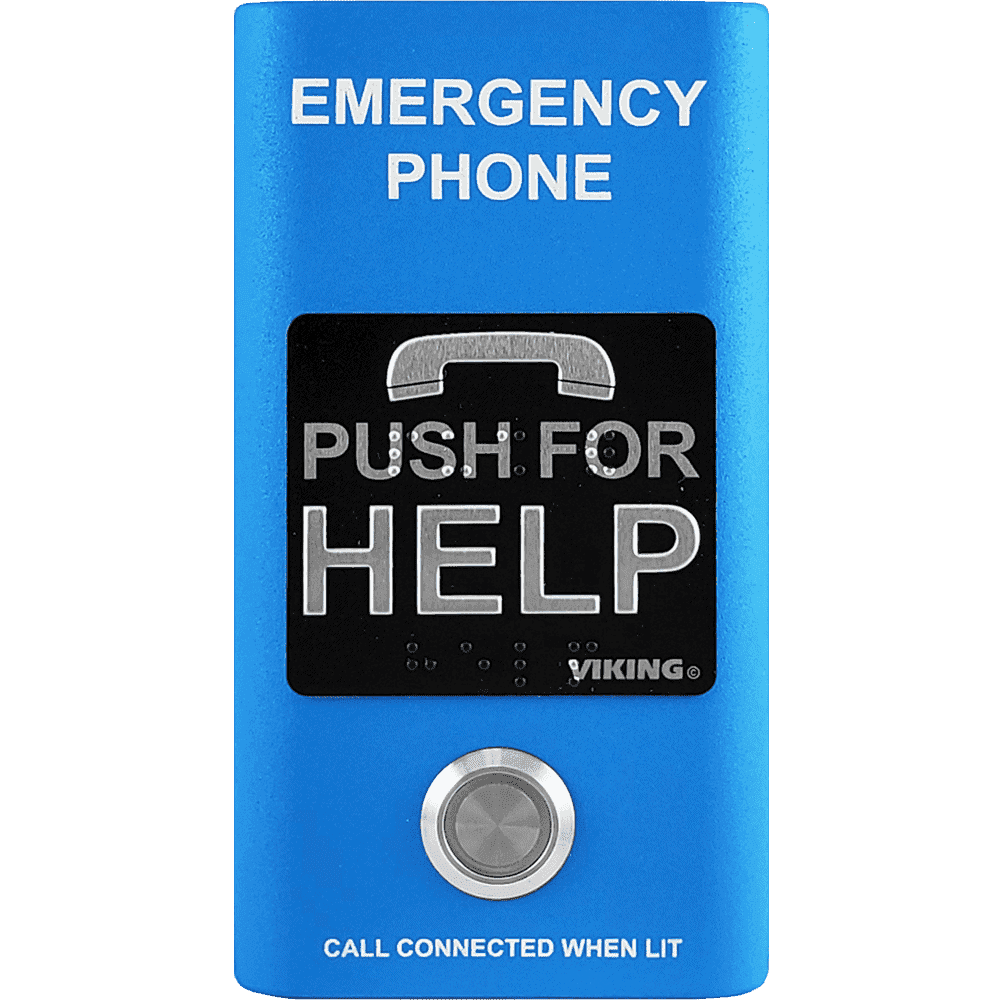

When seconds count, you need a phone that just works — rain, snow, heat, or cold. The Viking E-1600-BL-IPEWP is a tough, compact blue VoIP emergency phone built for real-world reliability. It delivers clear hands-free calls over your SIP network with no push-to-talk hassle, automatically sends your exact location, and lights up a bright “Call Connected” LED so everyone knows help is on the way.
Designed for elevators, parking garages, pool areas, campuses, and public access points, this ADA-compliant phone gives peace of mind to facility managers and building owners who refuse to compromise on safety.
Setup is straightforward with the included programming software, and the non-volatile memory means your settings stay put even if power dips. The built-in 2-amp relay is a hidden gem — use it to unlock a gate, trigger a strobe light, or activate a camera when the call connects.
Our Expert Take: If you’re replacing old analog emergency phones or building a new VoIP system, this model gives you modern features without complexity. It’s not the cheapest option, but the reliability and ADA compliance make it worth every penny for life-safety applications. Highly recommended for any high-traffic or outdoor location.
Key Features
- Hands-free operation with crystal-clear audio thanks to Automatic Noise Canceling (ANC)
- ADA compliant — automatically lights the red “Call Connected” LED, sends a location voice announcement or DTMF code, and includes Grade 2 Braille labeling
- Dials up to 5 emergency numbers and automatically cycles through backups if the first line is busy or doesn’t answer
- SIP compliant VoIP with support for Outbound Proxy, Authentication, Peer-to-Peer, and VLAN tagging
- PoE powered (Class 1, less than 4 watts) — no separate power supply needed
- Enhanced Weather Protection (EWP) — meets IP66 standards with sealed gaskets, gel-filled connectors, and potted boards for wet or humid environments
- Wide temperature range — works from -40°F to 140°F
- Built-in 2-amp relay for controlling doors, gates, or strobe lights (like the Viking SL-2)
- 28 seconds of non-volatile voice memory for custom location announcements
- Network downloadable firmware and easy diagnostics for mic, speaker, and relay testing
- Compact low-profile design — easy surface or recess mounting
Technical Specifications
- Power: PoE IEEE 802.3af Class 1 (< 4 Watts)
- Audio: G.711u, G.711a, G.722 codecs; 95 dB SPL maximum sound pressure at 1 meter
- Dimensions: 5.75″ H x 3.08″ W x 1.05″ D (146 mm x 78 mm x 27 mm)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: Up to 100%
- Material: 16-gauge 304 stainless steel with textured blue powder coat
- Mounting: Surface mount to walls/posts, single-gang boxes, or recess mount in elevator phone boxes
- Connections: 1x RJ45 10/100 Base-T; 3x gel-filled butt connectors
- Shipping Weight: 2.5 lbs (1.13 kg)
- Regulatory: ADA, CE, FCC Part 15, ICES-003 Class A, IP66 (EWP)
