Description

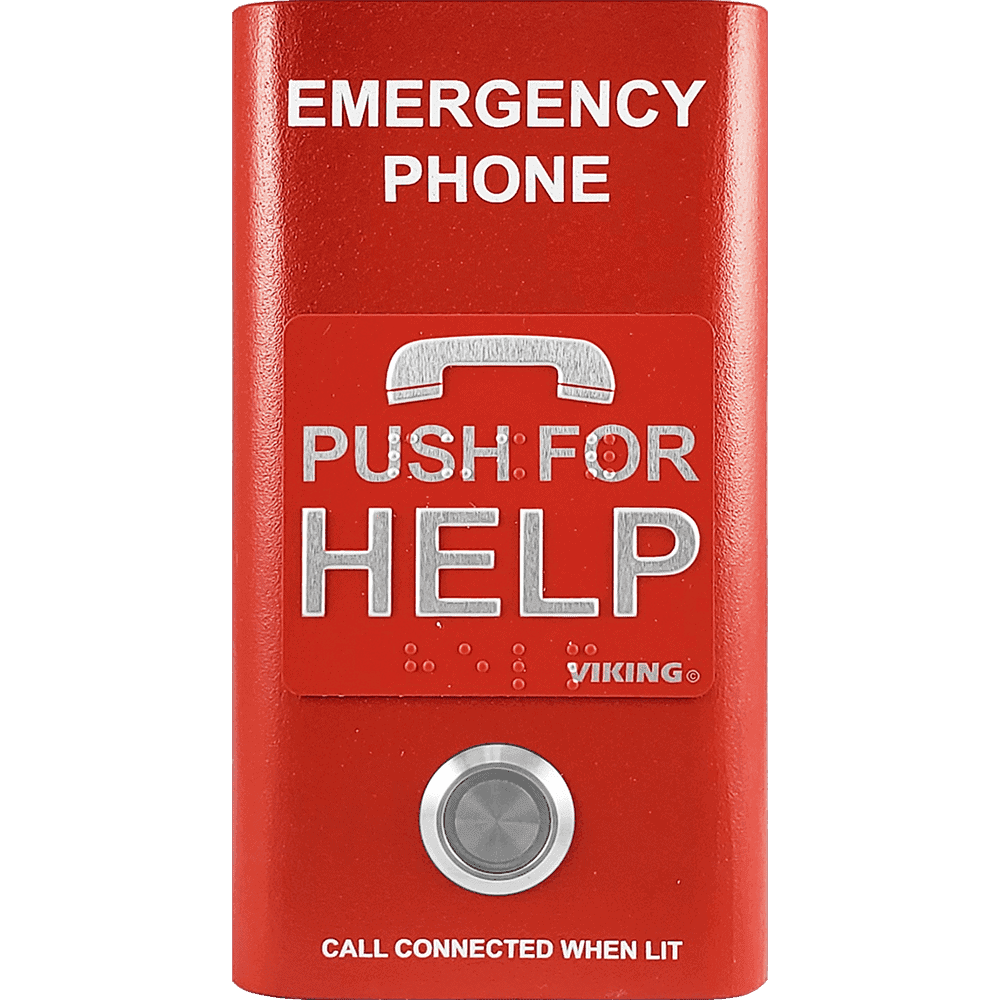

Imagine someone in an elevator, parking garage, or pool area needs help right now. The Viking E-1600-RD-IP makes sure they get it—fast. This bright red, low-profile VoIP emergency phone gives crystal-clear hands-free calling over your SIP network with just the push of a button.
It’s fully ADA compliant, automatically lights up to show the call connected, and can announce the exact location to responders. Powered by PoE, it works in tough conditions from -40°F to 140°F, and its automatic noise canceling keeps voices clear even in noisy spots.
The Telecom Spot Expert Review
Unlike older analog emergency phones that need extra wiring and can sound muffled, this model plugs right into your existing SIP VoIP system using Power over Ethernet—no extra power outlet required. The built-in 2-amp relay lets you trigger a strobe light or unlock a door automatically during a call, which is a game-changer for security teams.
Setup is straightforward with Viking’s free programming software or from any touch-tone phone. You can program up to five emergency numbers that cycle through if one is busy. The non-volatile memory means your settings stay safe even if power dips.
Our customers in universities, medical centers, and apartment buildings tell us the red finish stands out so people can find it quickly, and the Grade 2 Braille label helps everyone use it confidently. If you’re upgrading from analog or installing new, this phone gives you modern VoIP features without the headache. Highly recommended for any location where safety is priority number one.
Key Features
- SIP Compliant VoIP – Works seamlessly with modern phone systems including outbound proxy, authentication, peer-to-peer, and VLAN tagging
- ADA Compliant – Auto-lights the “Call Connected” LED, sends location ID, and includes Grade 2 Braille
- Hands-Free Calling – Loud 95 dB speaker and automatic noise canceling for clear audio in noisy areas
- Reliable Emergency Dialing – Program up to 5 numbers; cycles through backups on busy or no-answer
- Location Announcement – 28 seconds of non-volatile digital voice memory for custom location messages
- 2-Amp Relay – Control a strobe light (like Viking SL-2) or electric door/gate strike
- PoE Powered – Class 1, less than 4 watts – no separate power supply needed
- Tough Construction – 16-gauge 304 stainless steel with durable red powder coat finish
- Easy Setup & Monitoring – Free programming software, network firmware updates, and built-in diagnostics
- Wide Temperature Range – Operates from -40°F to 140°F
Technical Specifications
- Power: PoE Class 1 (<4 Watts)
- Audio: G.711u, G.711a, G.722 codecs; 95 dB SPL maximum sound pressure @ 1m; Automatic Noise Canceling
- Dimensions: 5.75″ H x 3.08″ W x 1.05″ D (146 mm x 78 mm x 27 mm)
- Mounting: Surface mount to walls, posts, or single-gang boxes; recess mount in elevator phone boxes
- Material: 0.060″ thick (16-gauge) 304 stainless steel with textured red powder paint
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Network: 10/100 Base-T Ethernet with auto cross-over; SIP 2.0 (RFC3261)
- Connections: 1x RJ45, 3x gel-filled butt connectors
- Relay: 2 Amp contacts
- Shipping Weight: 2.5 lbs (1.13 kg)
- Compliance: ADA, CE, FCC Part 15, Canada ICES-003 Class A
