Description

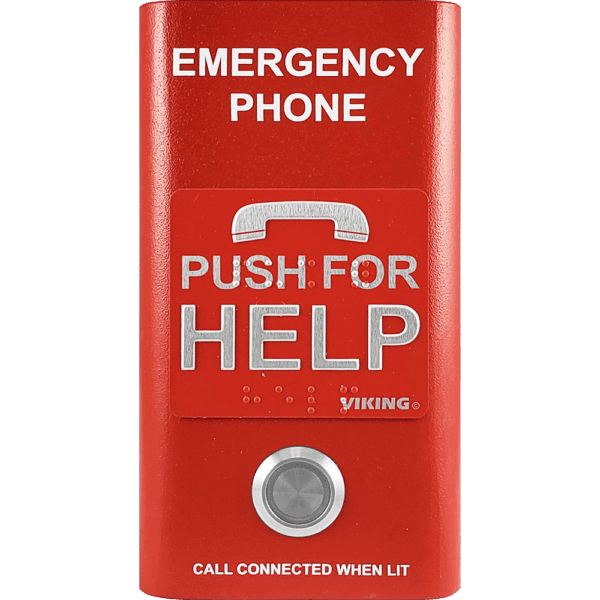

When someone needs help right now, every second counts. The Viking E-1600-RD-IPEWP gives you a tough, compact red emergency phone that works over your SIP VoIP system with simple Power over Ethernet (PoE).
Push the big button and it instantly connects hands-free – no need to hold anything. It lights up a bright red “Call Connected” LED, sends your exact location by voice or code, and even controls a door or strobe light if you need it.
Built with Enhanced Weather Protection (IP66 rated), this phone laughs at rain, snow, dust, and extreme temperatures from -40°F to 140°F. Perfect for parking garages, elevators, pools, campuses, stadiums, and public access points.
The Telecom Spot Expert Review
The Automatic Noise Canceling (ANC) keeps voices clear even next to loud traffic or machinery. Programming is straightforward – do it from any computer on your network or even remotely. All settings stay safe in non-volatile memory, so power outages won’t erase them.
Our customers love the bright red finish that screams “emergency” while still looking professional. The 2-amp relay is a nice bonus – hook up a door strike or Viking SL-2 strobe for extra safety. Setup tip from our team: Always run a quick diagnostic test on the mic, speaker, and relay after mounting. It takes 30 seconds and gives you peace of mind.
If you need bulk pricing or help integrating with 3CX, Teams, or any SIP PBX, just reach out – we’re not just a warehouse, we’re your telecom consultants.
Key Features
- Hands-free operation with clear two-way audio – no “push to talk” needed thanks to VoIP
- ADA compliant – auto lights “Call Connected” LED, sends location ID (voice announcement or DTMF code), Grade 2 Braille label
- Dials up to 5 emergency numbers and automatically tries backups if the first line is busy or doesn’t answer
- Enhanced Weather Protection (EWP) – IP66 rated, perfect for outdoor or wet locations
- PoE powered (Class 1, less than 4 Watts) – simple single Ethernet cable installation
- Automatic Noise Canceling (ANC) for excellent sound in noisy areas
- Built-in 2-amp relay – control a gate, door, or flashing strobe light
- 28 seconds of non-volatile voice memory for custom location messages
- Easy programming from any touch-tone phone, PC on the LAN, or remotely
- Network firmware updates and self-diagnostics for mic, speaker, and relay
- Supports Outbound Proxy, Authentication, Peer-to-Peer, and VLAN tagging
Technical Specifications
- Power: PoE IEEE 802.3af Class 1 (<4 Watts)
- Audio: G711u, G711a, G722 codecs; 95 dB SPL maximum sound pressure at 1 meter
- Dimensions: 5.75″ H x 3.08″ W x 1.05″ D (146 mm x 78 mm x 27 mm)
- Weight: 2.5 lbs (1.13 kg) shipping weight
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: Up to 100%
- Material: 16-gauge 304 stainless steel with textured red powder paint
- Mounting: Surface mount to walls, posts, single-gang boxes, or recess in elevator phone boxes
- Connections: 1x RJ45 10/100 Base-T + 3x gel-filled butt connectors
- Network: SIP 2.0 RFC3261, 100BASE-TX auto cross-over, VLAN support
- Regulatory: ADA, FCC Part 15, Canada ICES-003 Class A, CE, IP66 EWP
