Description

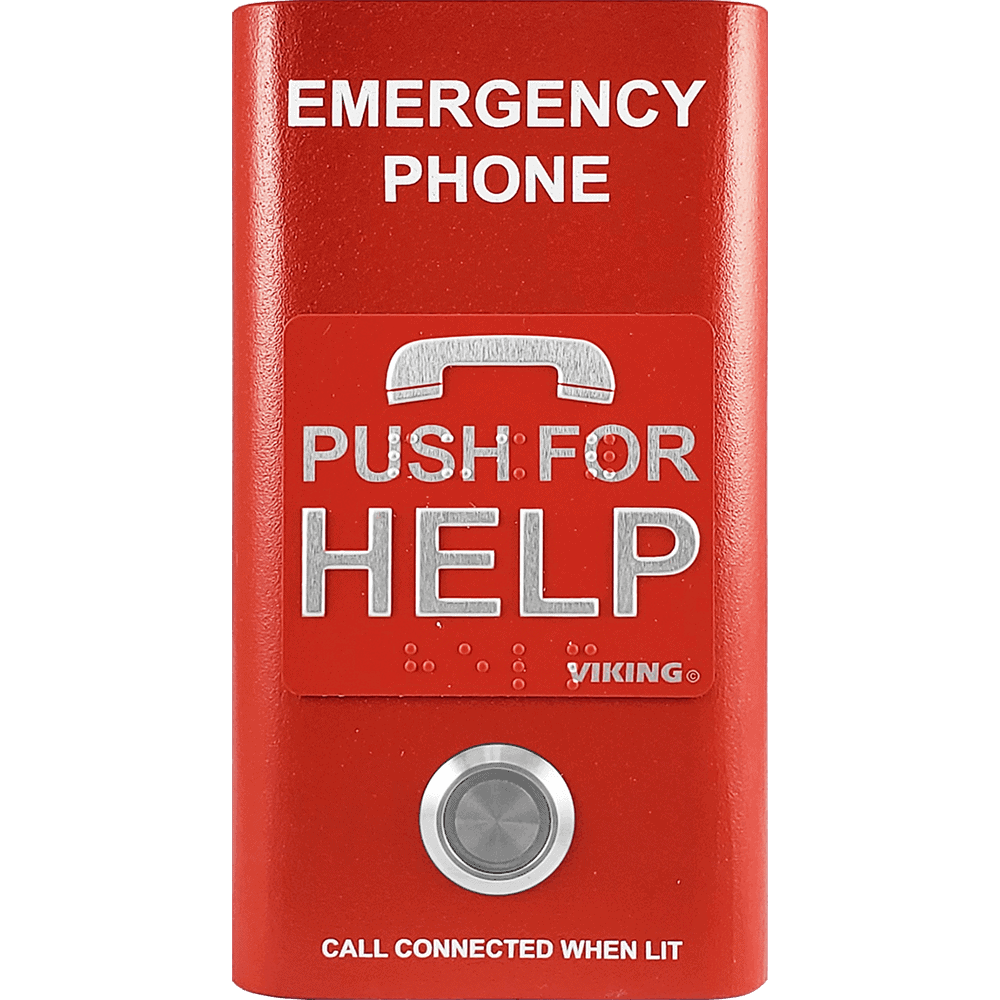

Need a tough, dependable way to call for help in an emergency? The Viking E-1600-RDA is a compact red emergency phone that works on any standard analog phone line. Just press the big button and it automatically dials your programmed emergency numbers – no handset to pick up.
It meets strict ADA rules, lights up a “Call Connected” LED so everyone knows help is on the way, and even speaks a custom location message so responders know exactly where you are. Built tough with a red powder-coated stainless steel faceplate, it’s perfect for elevators, parking ramps, pools, lobbies, and other public spots. No batteries or extra power needed – it runs right off the phone line.
Our Expert Take: This is the go-to choice for building owners, facility managers, and safety directors who want ADA compliance without complexity. It’s reliable in temperatures from -15°F to 130°F, so it handles everything from freezing parking ramps to hot mechanical rooms. If your location sees rain or condensation, step up to the E-1600-RDA-EWP outdoor version. Overall, it’s a rock-solid, low-maintenance solution that gives peace of mind to everyone who sees that bright red phone on the wall.
Key Features
- Handsfree operation – Big easy-to-press button with built-in “Call Connected” LED that lights automatically or manually
- ADA compliant – Grade 2 Braille label, automatic location ID (voice announcement or DTMF code), and visual confirmation
- Automatic Noise Canceling (ANC) – Crystal-clear audio even in noisy environments
- Dials up to 5 emergency numbers plus 2 central station numbers – automatically cycles through backups on busy or no-answer
- 16-second non-volatile digital voice announcer – tells responders exactly where the call is coming from
- Phone line powered – No batteries or external power supply required (needs 24VDC / 20mA minimum)
- Remotely programmable from any touch-tone phone
- Advanced call progress detection – Hangs up cleanly on CPC, silence, busy, dial tone, time-out, or touch tone command
- Auto-answer capability for incoming calls
- Rugged build – 0.060″ thick 304 stainless steel with textured red powder paint
- Compact size – Easy surface or recess mounting
Technical Specifications
- Power: Telephone line powered (24VDC / 20mA minimum)
- Dimensions: 5.75″ x 3.08″ x 1.05″ (146 mm x 78 mm x 27 mm)
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: 5% to 95% non-condensing
- Shipping Weight: 2.5 lbs (1.13 kg)
- Material: 0.060″ thick (16 gauge) 304 stainless steel with textured red powder paint
- Mounting: Surface mount to walls, posts, single gang electrical boxes, or recess mount in elevator phone boxes
- Connections: (2) Gel-filled butt connectors
- Certifications: FCC Part 68, FCC Part 15, ADA Compliant
