Description

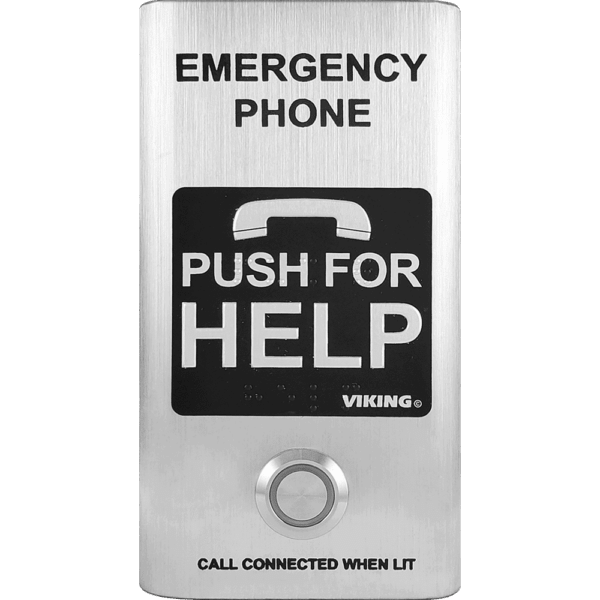

When someone needs help fast, every second counts. The Viking E-1600-SS-IPEWP is a compact, rugged VoIP emergency phone built for real-world reliability. Its marine-grade 316 stainless steel faceplate stands up to harsh outdoor conditions, while Enhanced Weather Protection (EWP) keeps it working through rain, snow, and condensation.
This ADA-compliant phone connects directly to your SIP-based VoIP system using Power over Ethernet (PoE), so there’s no extra power supply to worry about. Press the big emergency button and it automatically dials up to five numbers, plays a custom location announcement, and lights up a bright red “Call Connected” LED. It’s the kind of dependable safety tool that gives peace of mind in elevators, parking ramps, campuses, pools, and public access areas.
Expert Take: If you need a low-profile, code-compliant emergency phone that survives tough environments and integrates cleanly with modern SIP systems, this is one of the best values in the Viking 1600-IP series. We recommend it for any outdoor or semi-exposed location where reliability is non-negotiable.
Key Features
- ADA Compliant — Automatically lights the “Call Connected” LED, sends a unique location ID or voice announcement, and includes Grade 2 Braille labeling.
- Enhanced Weather Protection (EWP) — IP66-rated with sealed connections, gel-filled butt connectors, and potted circuitry for outdoor use in rain, snow, or condensation.
- Handsfree SIP VoIP Operation — No “push-to-talk” needed; works with any standard SIP phone system.
- Dials Up to 5 Emergency Numbers — Automatically cycles through backup numbers if the first is busy or doesn’t answer.
- Built-in Digital Voice Announcer — 28 seconds of non-volatile memory to announce the exact location of the call.
- Automatic Noise Canceling (ANC) — Keeps audio clear even in noisy environments like parking lots or near roads.
- Bright Red “Call Connected” LED — Visible confirmation that help is on the way.
- 2-Amp Relay Contacts — Control a door, gate, or optional SL-2 strobe light.
- PoE Powered (Class 1, <4 Watts) — Simple single-cable installation using your existing network.
- Extended Temperature Range — Works from -40°F to 140°F.
- Easy Programming — From any touch-tone phone, PC on the LAN, or remotely; includes automatic polling software and network-downloadable firmware.
- Marine-Grade 316 Stainless Steel — #4 brushed finish resists corrosion better than standard 304 steel.
Technical Specifications
- Power: PoE Class 1 (<4 Watts)
- Audio: G711u, G711a, G722 codecs; Automatic Noise Canceling (ANC); 95 dB SPL maximum sound pressure at 1 meter
- Dimensions: 5.75″ H x 3.08″ W x 1.05″ D (146 mm x 78 mm x 27 mm)
- Shipping Weight: 2.5 lbs (1.13 kg)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: Up to 100%
- Material: 0.060″ thick (16 gauge) marine grade 316 stainless steel with #4 brushed finish
- Mounting: Surface mount to walls, posts, single-gang boxes, or recess mount in elevator phone boxes
- Network: 10/100 Base-T Ethernet with auto cross-over; SIP 2.0 (RFC3261); Outbound Proxy, Authentication, Peer-to-Peer, VLAN tagging
- Connections: (1) RJ45 jack + (3) gel-filled butt connectors
- Regulatory: ADA, FCC Part 15, Canada ICES-003 Class A, CE, IP66 (EWP)
