Description

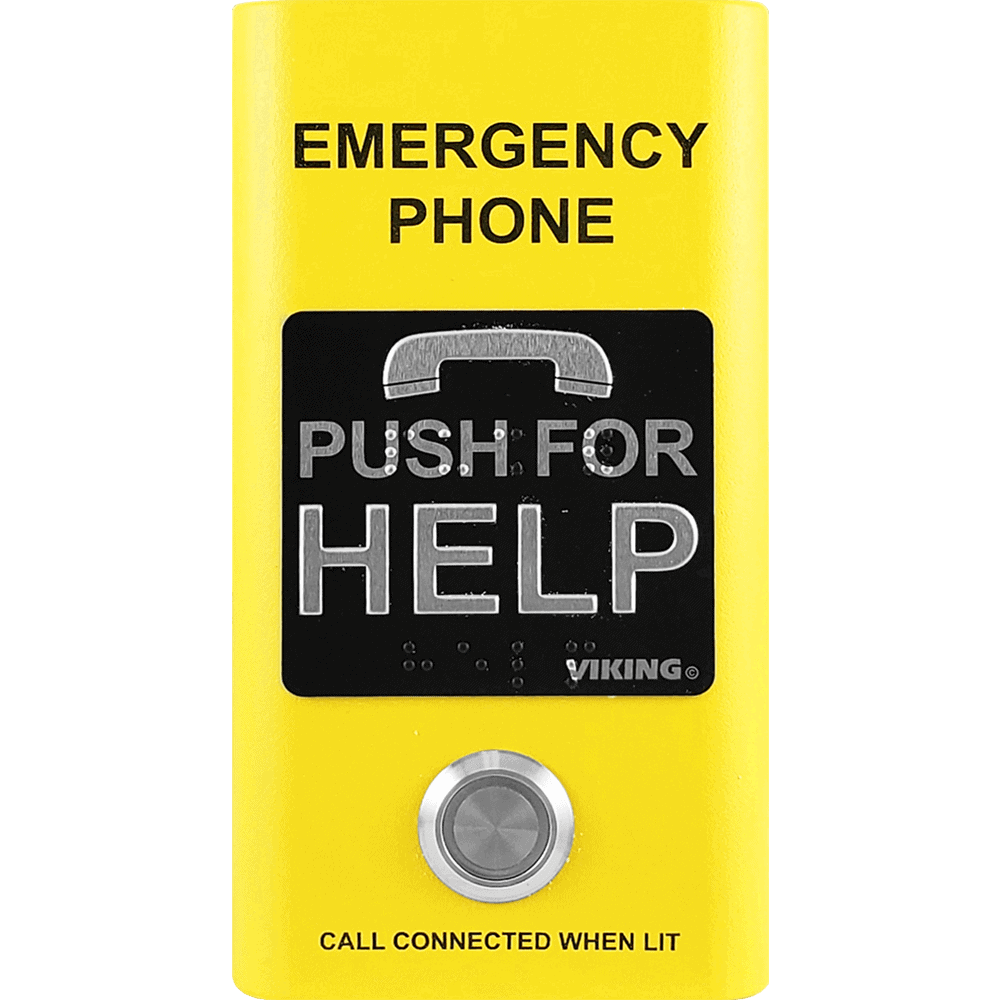

When safety matters most, the Viking E-1600-YL-IP gives people a fast, simple way to call for help. This bright yellow, compact emergency phone works on any SIP-based VoIP system and runs on Power over Ethernet (PoE), so there’s no extra power outlet needed.
It’s fully ADA compliant with a large push button, braille label, automatic “Call Connected” LED, and a built-in voice announcement that tells responders exactly where the call is coming from. Whether you’re installing it in an elevator, parking ramp, lobby, or area of refuge, this phone delivers clear hands-free audio even in noisy spots thanks to Automatic Noise Canceling.
Our Expert Take: If you’re moving from old analog emergency phones to modern VoIP, this model is one of the cleanest, most compliant upgrades available. It’s not just a phone—it’s peace of mind for facility managers, property owners, and the people who count on you for safety.
Key Features
- Bright yellow powder-coated 304 stainless steel for high visibility and durability
- Fully ADA compliant with Grade 2 braille label, automatic “Call Connected” LED, and location announcement
- Hands-free operation with Automatic Noise Canceling (ANC) for clear audio in noisy environments
- SIP compliant VoIP with support for Outbound Proxy, Authentication, Peer-to-Peer, and VLAN tagging
- PoE powered (Class 1, less than 4 watts) – no separate power supply required
- Dials up to 5 programmable emergency numbers and cycles through backups if busy or no answer
- 28-second non-volatile digital voice announcer for custom location ID
- 2-amp relay contacts to control doors, gates, or optional strobe lights
- Network downloadable firmware and built-in diagnostics for easy maintenance
- Extended operating temperature: -40°F to 140°F
- Compact low-profile design fits on walls, posts, single-gang boxes, or elevator phone boxes
Technical Specifications
- Power: PoE IEEE 802.3af Class 1 (<4 Watts)
- Audio: G.711u, G.711a, G.722 codecs; Automatic Noise Canceling; Max 95 dB SPL @ 1m
- Dimensions: 5.75″ H x 3.08″ W x 1.05″ D (146 mm x 78 mm x 27 mm)
- Shipping Weight: 2.5 lbs (1.13 kg)
- Material: 0.060″ thick (16 gauge) 304 stainless steel with textured yellow powder paint
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Mounting: Surface mount to walls, posts, single-gang electrical boxes, or recess mount in elevator boxes
- Network: 10/100 Base-T Ethernet with auto cross-over; SIP 2.0 RFC3261
- Connections: 1x RJ45, 3x gel-filled butt connectors
- Regulatory: FCC Part 15, Canada ICES-003 Class A, CE, ADA compliant
