Description

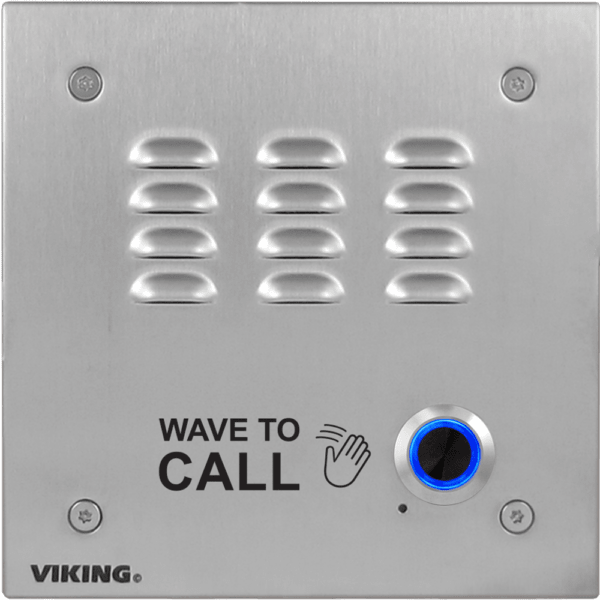

Tired of visitors touching germ-covered buttons at your gate, parking ramp, or lobby? The Viking E-30TF-IP-EWP changes that. Just wave your hand over the built-in motion sensor and it instantly connects a clear, hands-free call over your SIP VoIP system. Built tough for outdoor use with Enhanced Weather Protection (EWP), this stainless steel entry phone stands up to rain, snow, and extreme temperatures while keeping everyone safer and your entry points more secure.
Whether you manage a medical center, apartment complex, stadium, or corporate campus, this phone gives quick, reliable access without the hassle of traditional push-button units.
The Telecom Spot Expert Review
The touch-free sensor works reliably from 1 to 4 inches away – close enough to prevent accidental triggers but far enough to feel truly hands-free. In noisy environments like parking garages or loading docks, the Automatic Noise Canceling (ANC) keeps conversations clear without forcing anyone to use “push-to-talk” mode.
We love that it’s PoE powered (just one Ethernet cable for power and data) and includes a 2-amp relay so you can unlock doors or gates directly. Setup is straightforward with the included programming software, and you can manage it remotely from any computer or phone.
Our Expert Take: If your location sees heavy foot traffic or needs outdoor reliability, this is one of the smartest upgrades you can make. It’s not just an entry phone – it’s a low-maintenance security and convenience tool that your team and visitors will actually appreciate using.
Key Features
- Touch-free motion sensor activates with a simple wave (adjustable 1–4 inch range)
- LED feedback: blue when idle, flashing green while dialing, solid green when connected
- SIP compliant and fully compatible with 3CX, Asterisk, FreePBX, and most hosted VoIP platforms
- PoE powered (IEEE 802.3af Class 1, less than 4 watts) – no separate power supply needed
- 2-amp relay contacts to control door strikes, magnetic locks, or gate openers
- Automatic Noise Canceling for clear calls in noisy environments
- Dials up to 5 programmable numbers and cycles through backups on busy or no-answer
- Enhanced Weather Protection (EWP) rated for IP66 – perfect for outdoor or wet locations
- Marine-grade 316 stainless steel faceplate with laser-etched graphics and Torx security screws
- Operating temperature: -40°F to 140°F
- Network downloadable firmware and easy diagnostics for mic, speaker, and relay
- Flush mount with included rough-in box or surface mount with optional VE-5×5 box
Technical Specifications
- Power: PoE Class 1 (<4 watts)
- Network: 10/100 Base-T Ethernet, auto crossover, SIP 2.0 (RFC3261)
- Audio Codecs: G.711u, G.711a, G.722
- Sound Pressure: 90 dB SPL @ 1 meter
- Relay: 2 Amp contacts
- Connections: 1 × RJ45, 3 × gel-filled butt connectors
- Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Humidity: Up to 100%
- Mounting: Flush mount (rough-in box included) or surface mount (optional VE-5×5)
- Material: 14-gauge 316 marine-grade stainless steel faceplate
- Compliance: FCC Part 15, ICES-3 Class A, CE
